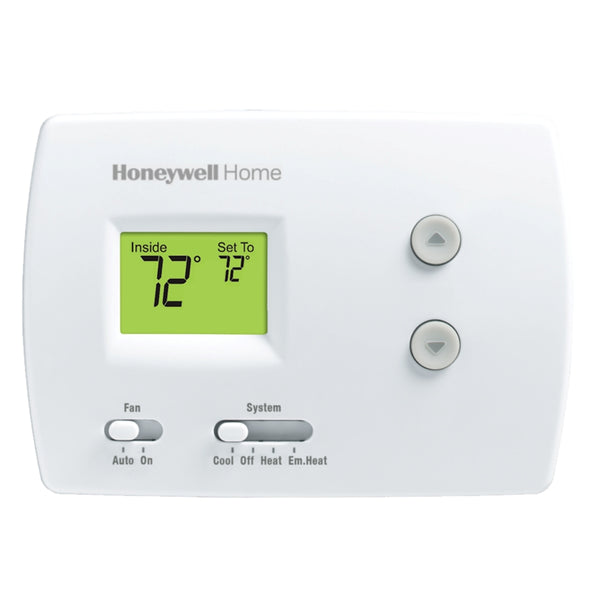

Honeywell PRO TH3210D1004 Non-Programmable Heat Pump Thermostat
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The PRO series non-programmable digital thermostat provides electronic control of 24 Vac conventional and heat pump systems or 750 mV heating systems.
Non-programmable digital thermostat.
Easy-to-read backlit display - easy to read in various lighting conditions.
Shows both current and set temperatures at the same time.
Precise comfort control (+/- 1º F) - maintains consistent comfort to the highest level of accuracy.
Basic operation - easy-to-use slide switches allow you to select the heat or cool mode, and operate the fan.
Specifications:
Non-programmable Digital Thermostat
Application 2 Heat/1 Cool Heat Pump Systems
Mounting Horizontal
Changeover Manual
Color Premier White®
Stages 2 Heat/1 Cool Heat Pump
Power Method Dual Powered: Battery or Hardwired
Terminal Designations R, Y, AUX, E, G, O, B, L, C
Switch Positions (Fan) AUTO-ON
Switch Positions (System) COOL-OFF-HEAT-EM. HEAT
Switch Type Relay
Accuracy (F) ±1 F
Accuracy (C) ±0.5 C
Dimensions (in.) 3 13/16 in. High X 5 3/8 in. Wide X 1 1/4 in. Deep
Dimensions (mm) 97 mm High X 137 mm Wide X 32 mm Deep
Setting Temperature Range (F) 40 to 90 in heat; 50 to 99 in cool
Setting Temperature Range (C) 4.5 to 32 in heat; 10 to 37 in cool
Electrical Ratings 20 to 30 Vac or 750 mV
Frequency 50 Hz
Frequency 60 Hz
Cycles per Hour Heating 1-12 CPH; Cooling 1-6 CPH
Cool Current 0.02 A to 1.0 A running
Heat Current 0.02 A to 1.0 A running
Sensor Element Thermistor
Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
Display Size 1.32 sq. in.
