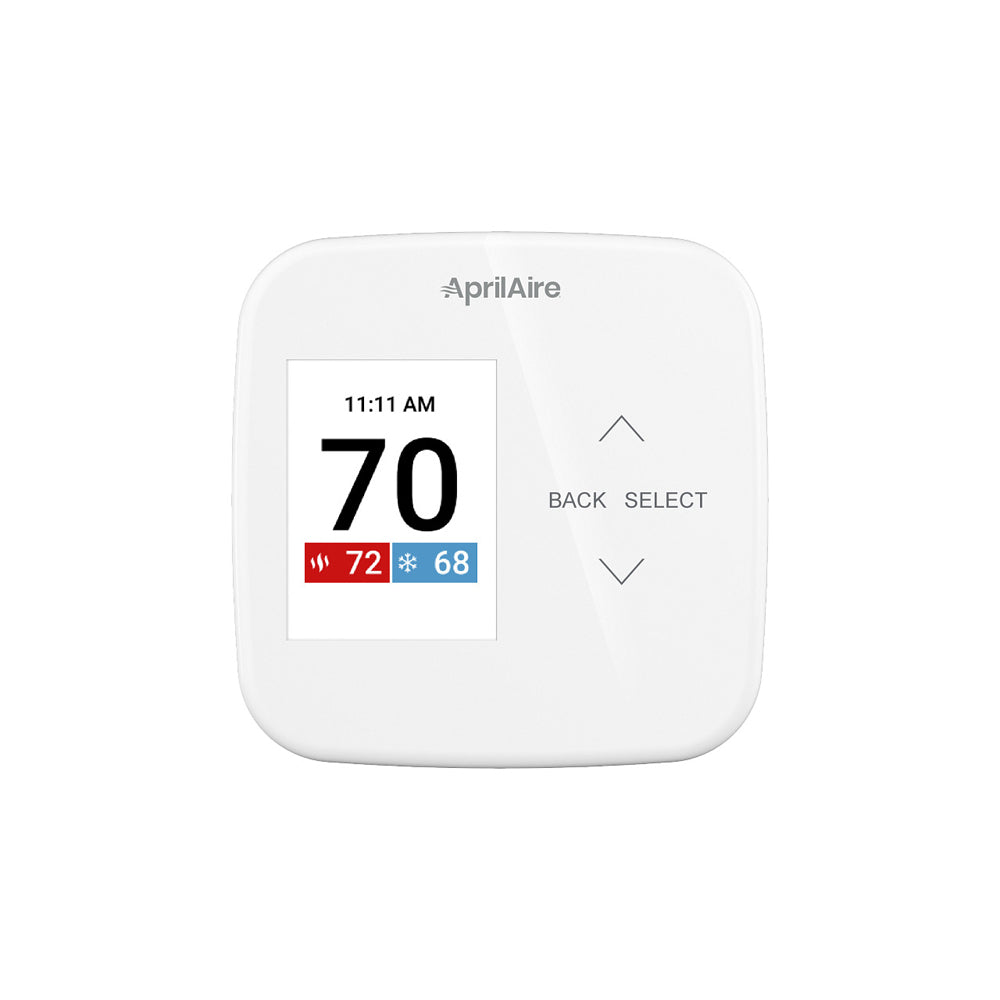

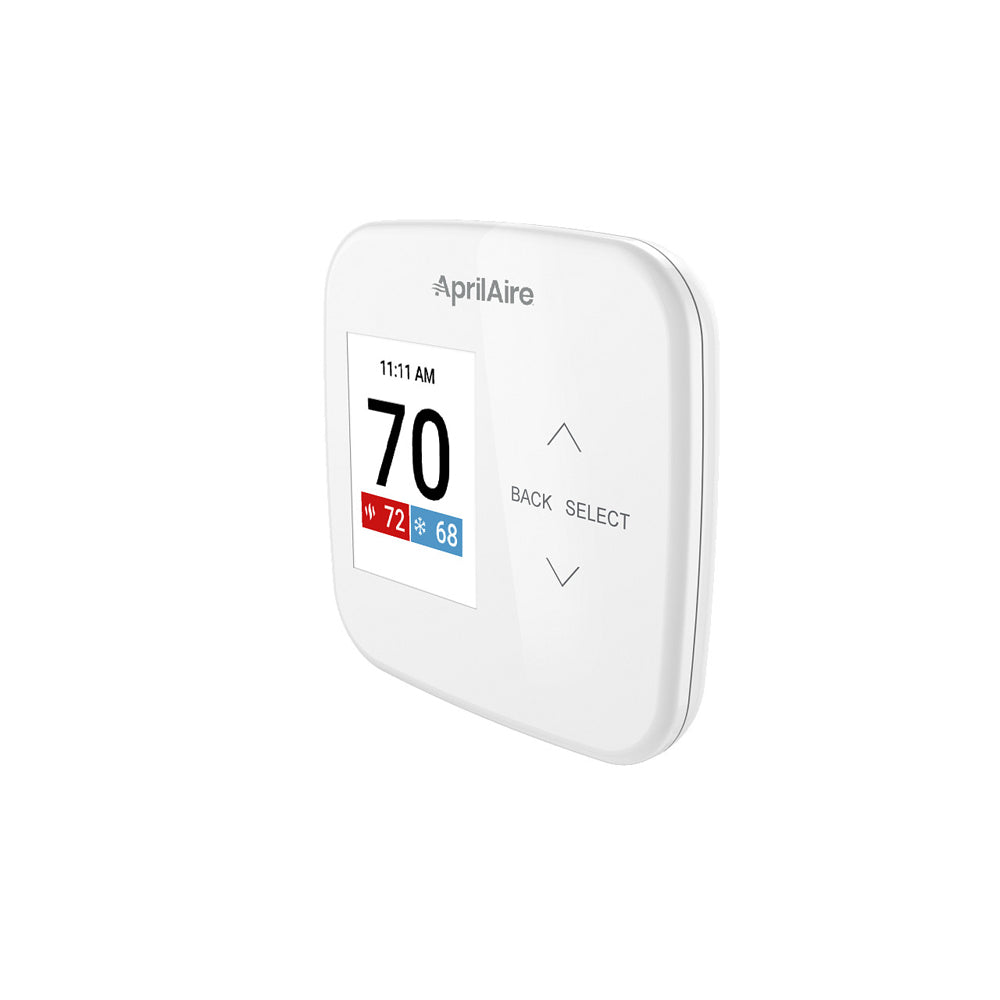

Aprilaire S86NMU Universal Multi-Stage Programmable Thermostat
Aprilaire S86NMU Universal, Capacitive touch, Multi-stage 2H/2C or 4H/2C Heat Pump, Programmable or Non-programmable
Color Graphical Display
Real Language Setup
Capacitive Touch Interface
Programmable & Non-Programmable
Dual Fuel Capable
Air Filter and HVAC Service Reminders
High & Low Balance Point with Outdoor Temperature Sensor
Heat Blast raises the room temperature 3F to 5F.
Easy to read, color graphical display.
Easy to use installer settings, no codes
7 day programmability.
Displays room temperature, temperature setting, and outdoor temperature.
Air filter, humidifier, dehumidifier, and HVAC service reminders.
Programmable fan control with fan circulation mode.
Easy to use temperature control can override program schedule at any time.
Progressive recovery ensures proper room temperature at the start of a program event.
Built in compressor protection prevents damage to your equipment.
System test mode.
Sensor averaging and the ability to assign a sensor to a scheduled event.
Installer adjustable set point limits.
Add On Accessories
8052 Outdoor Temperature Sensor
8086 Wall Cover
8022 Add-a-Wire Adaptor

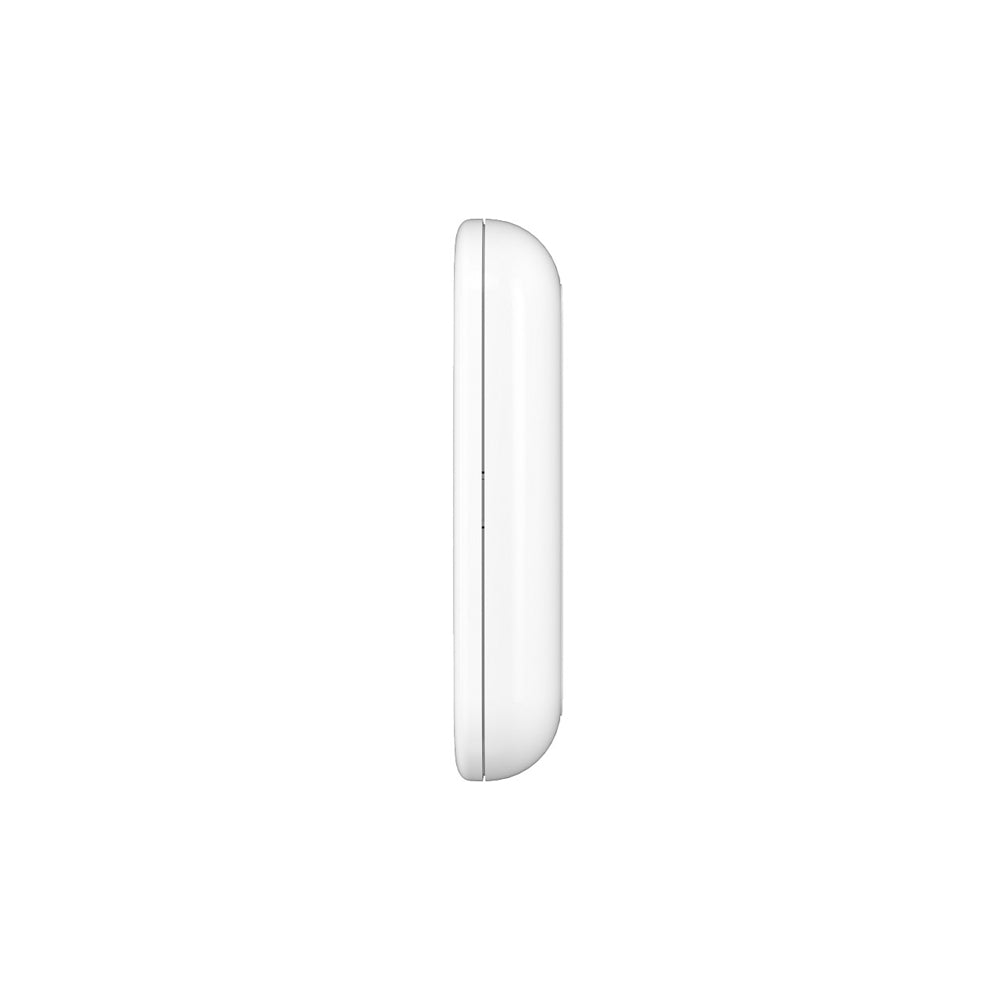

Product Dimensions: 4.38" x 4.38" x 0.80"
Operating Temperature: 32 to 120F (0 to 48.9C)
Operating Humidity: 5% to 90% Relative Humidity
Electrical Operating Voltage: 24VAC (18-30VAC)
Current - Maximum: 2.5A (total), 1.0A (single output)
Thermal: Display Range Room Temperature: 32 to 99F (0 to 40C)
Outdoor Temperature: -40 to 130F (-40 to 55C)
Setpoint Range: Heat: 40 to 90F (4 to 32C)
Cool: 50 to 99F (10 to 37C)

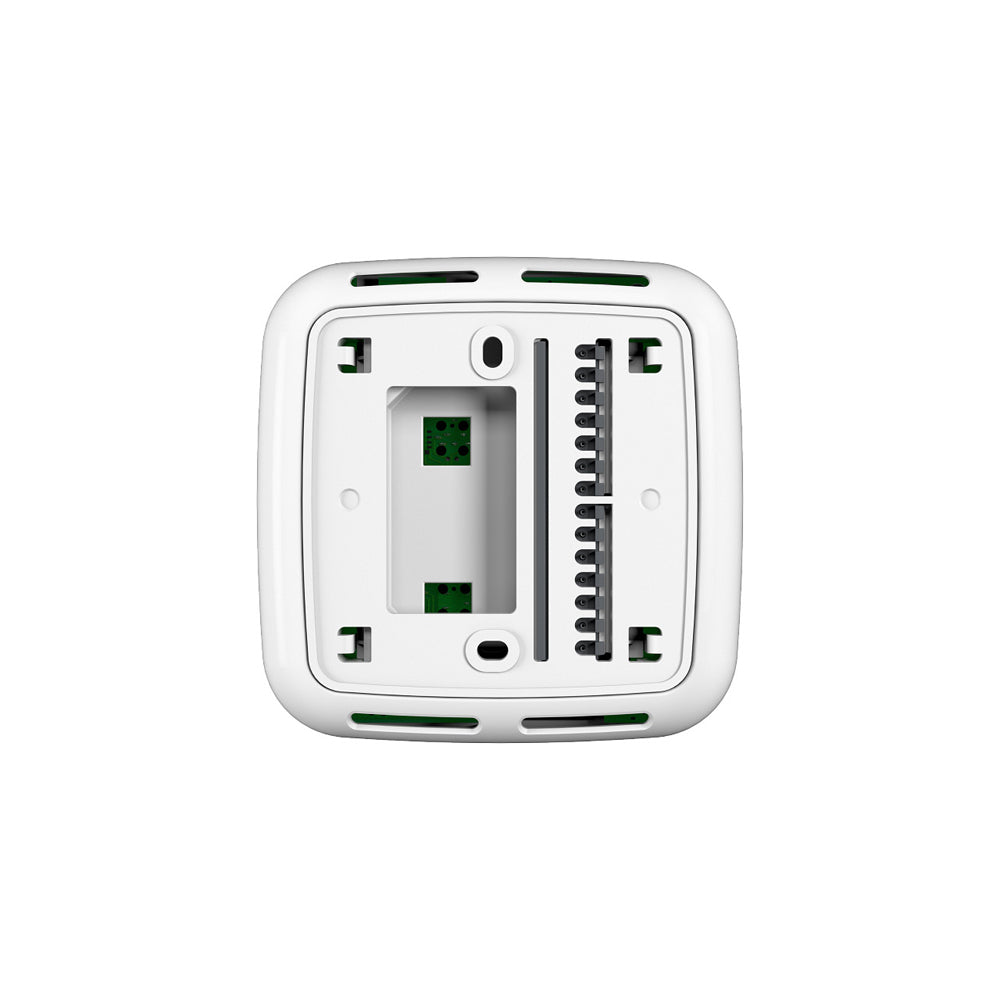

RH RC W Y G C O/B L W2 Y2 T1 T2
Easy to Install
Real language menus for quick, intuitive setup
Basic and Advanced HVAC installer settings for more streamlined installation
Programamable and Non-Programmable
Easy to Program
Best in class schedule setup is more intuitive for homeowners leading to fewer call backs
Individual days, weekdays, weekends, or 7-day programmability
Convenient Heat Blast option to raise room temperature 3 to 5F
Programmable fan control with fan circulation mode
Progressive recovery ensures proper temperature at the start of a program event
Easy To Use
Menu style navigation is simple and intuitive
Color graphical display for easier reading
Displays room temperature, room humidity, temperature setting, and outdoor temperature
Capacitive touch interface
