Emerson 3L05-1 Adjustable Snap Disc Fan Control Thermostat
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

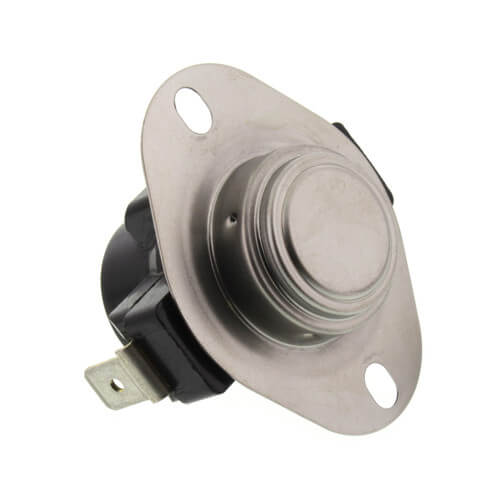

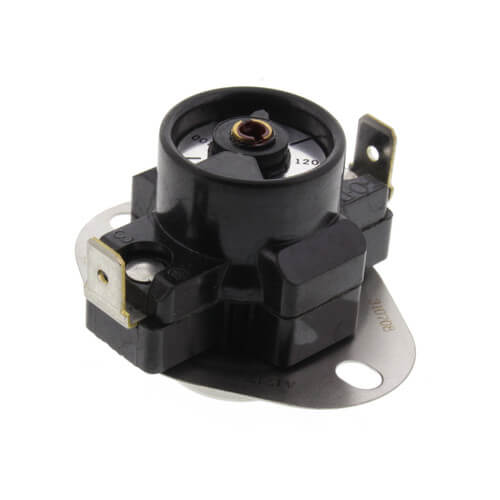

Emerson 3L05-1 Adjustable Snap Disc Fan Control is a 3/4in Snap Disc Fan Control with a temperature range of 90F to 130F Degrees.
This snap-disc thermostat allows you to set the temperature set point to match your specific needs, reducing inventory while providing coverage for a range of temperature applications.
The Emerson 3L05-1 has 1/4in quick connect terminals and a 20F Degree Differential.
Features
Fan Control Application
90F to 130F Degree Temperature Range
20F Degree Differential
Close on Rise Switch
Quick-Connect Connection Type
Adjustable Temperature
Motor
Full Load: 14A @ 120VAC
Locked Rotor: 72A @ 120VAC
Full Load: 10A @ 240VAC
Locked Rotor: 60A @ 240VAC
Pilot Duty Rating
125 VA @ 240 Vac
125 VA @ 120 Vac
