Functional Devices

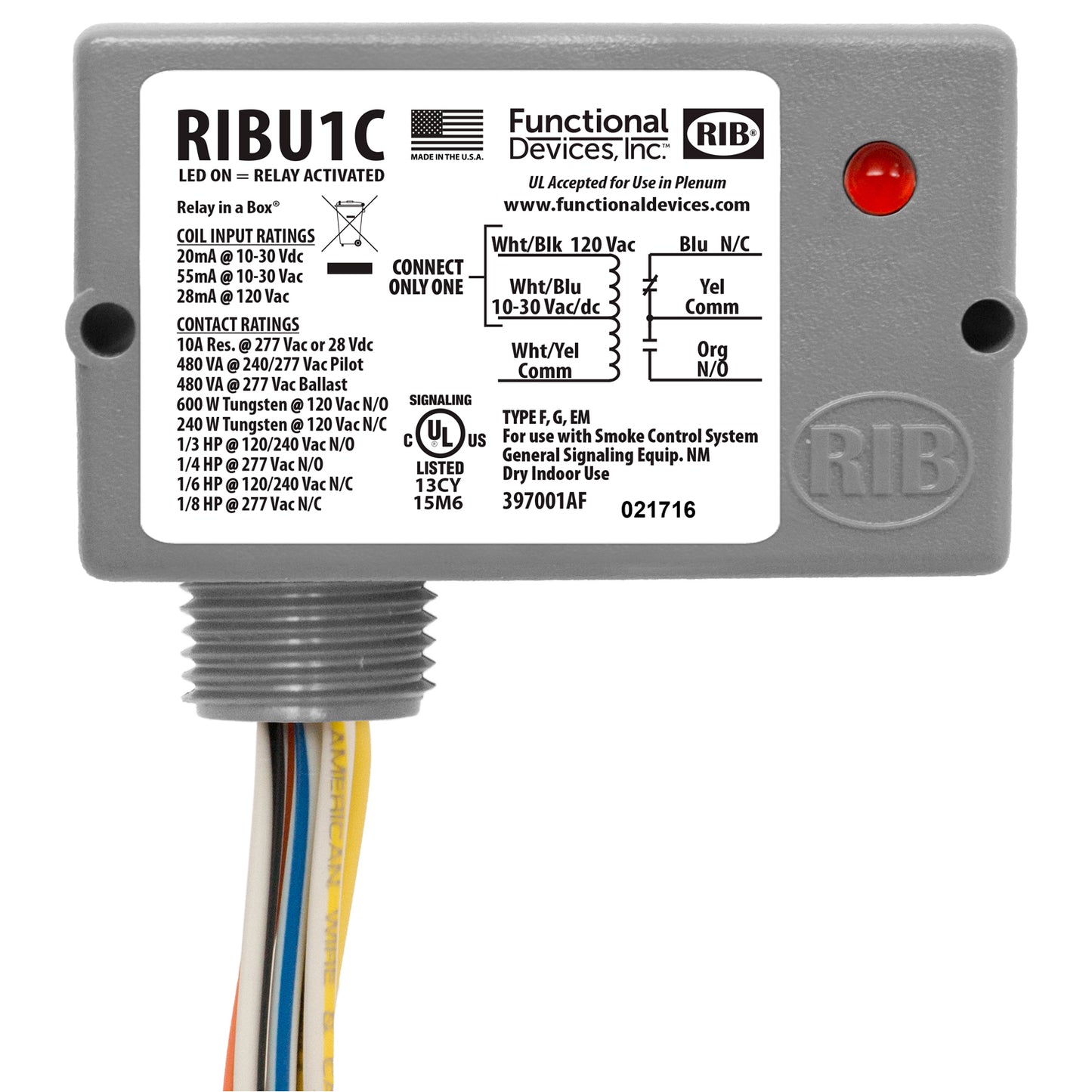

Functional Devices RIBU1C Enclosed Pilot SPDT Contacts Control Relay
$21.69
In Stock — Ready to Ship
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The RIBU1C is a popular enclosed pilot control relay that has 10 Amp rated SPDT contacts with a 10-30VAC/DC - 120VAC coil.
The relay has an operating temperature of -30 to 140°F and is UL Listed, UL916, UL864, C-UL California State Fire Marshal.
This item is Made in the USA!
Specifications:
Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Relay Status: LED On = Activated
Dimensions: 1.70" x 2.80" x 1.50" with .50" NPT nipple
Wires: 16", 600V Rated
