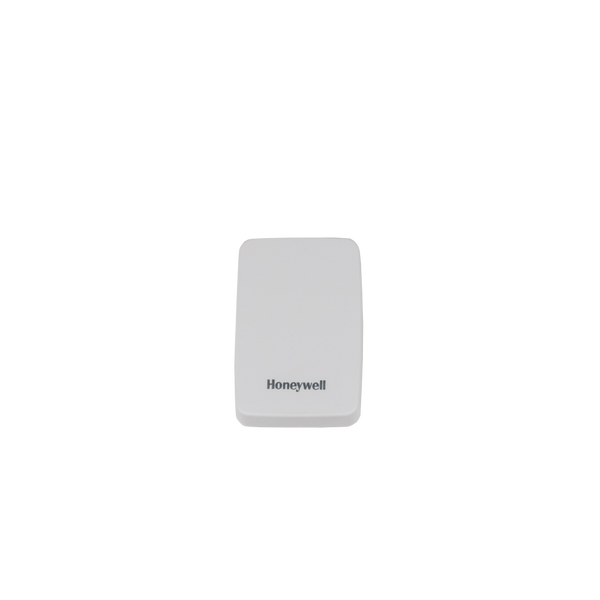

Honeywell C7189U1005 Hardwired Indoor Remote Sensor
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Honeywell C7189U-1005 Indoor Temperature Sensor is used with the TH8000 Vision Pro and T6 Thermostat series. Connection to sensor is made with 18/2 thermostat wire (not included). The Remote Indoor Temperature Sensor is used to sense temperature remotely at the sensor location and not where the thermostat is located.
Benefits:
Allows thermostat to be placed in most convenient place for the homeowner
Allows sensing of temperature from remote areas - with control from thermostat location.
Fits the following VisionPro 8000 Model Thermostats:TH8320R1003
TH8321R1001, TH8321WF1001, TH6220U2000, TH6320WF2003, and TH8322WF2006.
NOTE: Thermostats can accept EITHER an indoor OR outdoor sensor - not both. Maximum distance between thermostat and sensor is 200 feet.
Operating Ambient Temperature Range: 45 to 88 F (7.2 to 32 C)
Display Range: 0 to 99 F (-18 to 37 C)
Sensor Accuracy: +/- 1.5 F at 70 F (+/- .84 at 21 C)
Operating Relative Humidity: 5% to 95% non-condensing
Dimensions in inches (mm): 1 1/2 (38) wide X 2 1/4 (57) high X 3/4 (19) deep
