Honeywell Replacement Motor Actuator for Open Zone Dampers
This is a direct replacement for M847D1004 and is designed to operate with the following open zone dampers:
ARD
ARDTZ
EARD
ZD
ZDTZ
Product Details
Two Position
24 VAC
Low Voltage - 24V
Spring-Return Damper Acutator

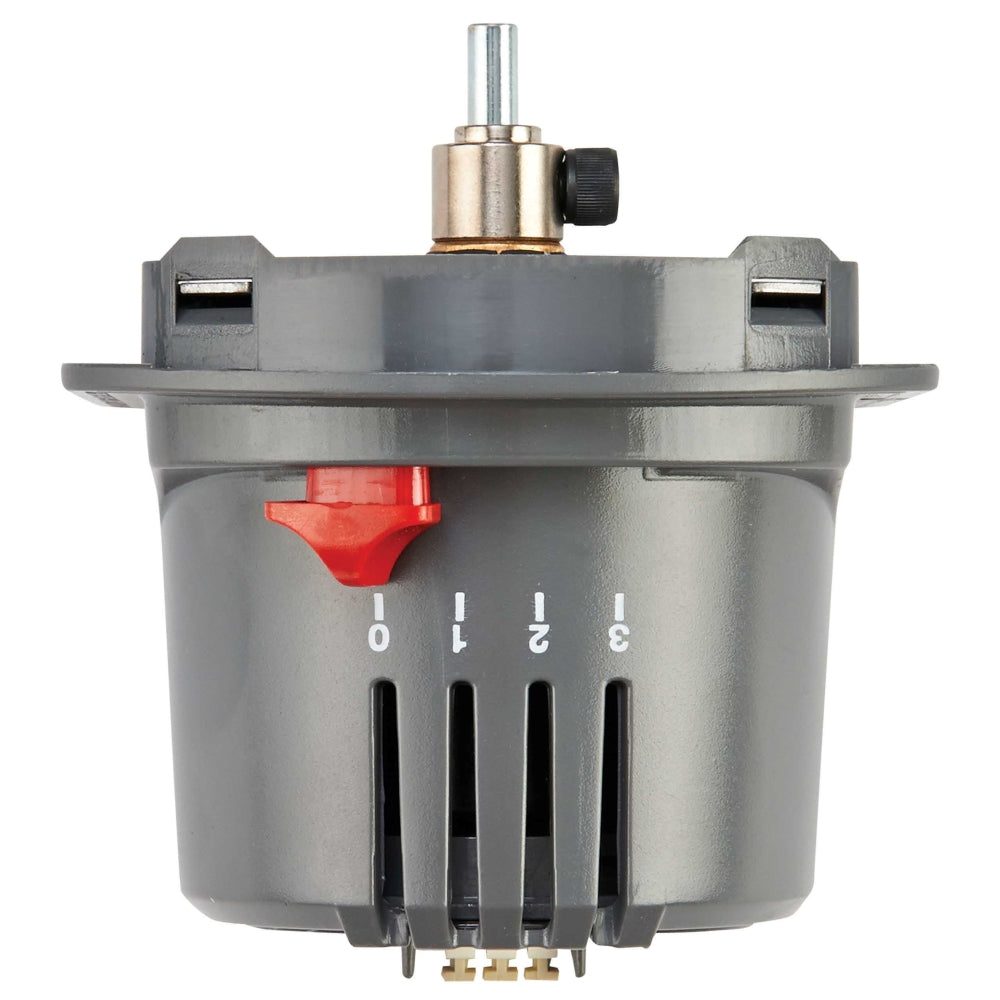

Adjustable, simplified range stops
Motor Power Closed, Spring Open
Included extensions allow for direct mounting to 7/16 inch diameter coupling-style dampers
Includes
Anti-Rotation Extension
Drive Shaft Extension

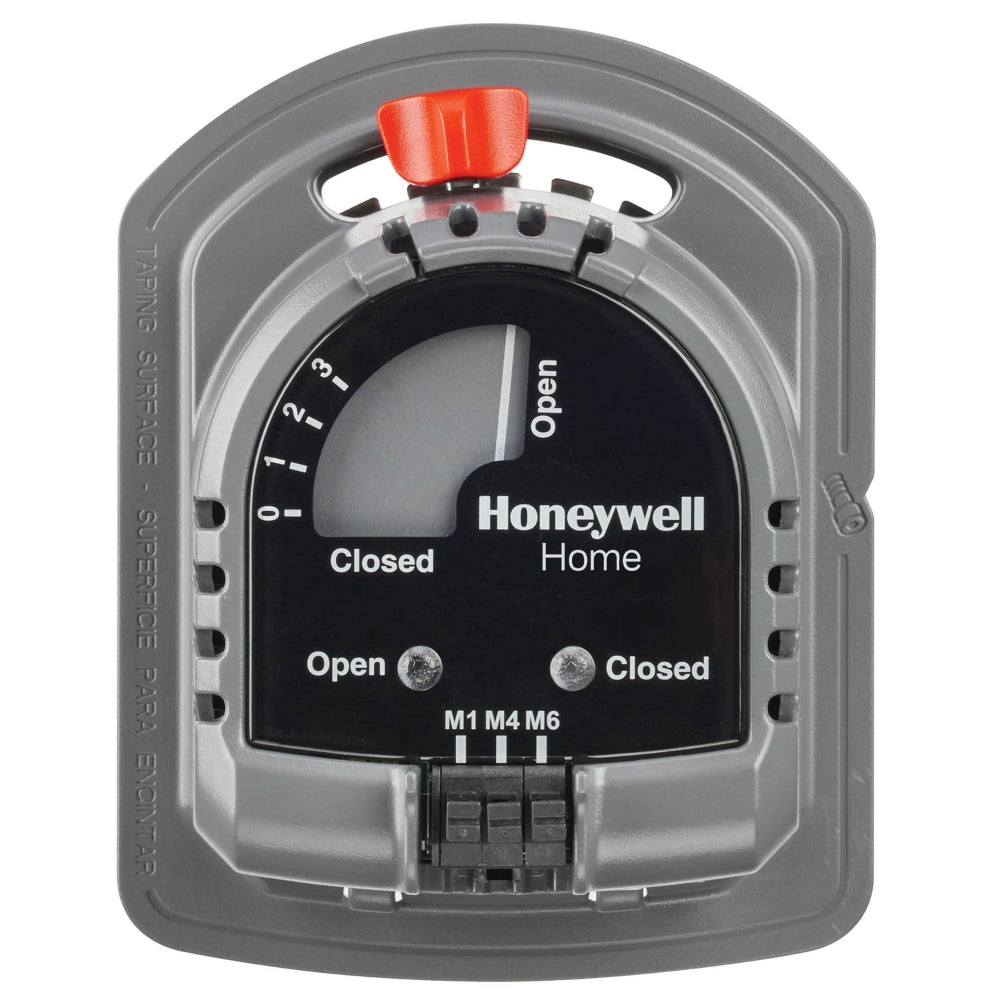

The following wires to Motor Terminals: M1-Power, M6 Common, M4 (optional) LED Indication
Timing
The Motor timing is 30 seconds for a power open and 10 seconds for a spring return.
