T822K1042

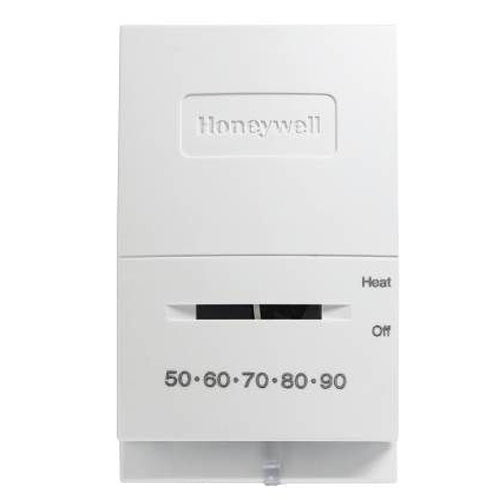

Honeywell T822K1042 Econostat Low Temp Heat Only Mechanical Thermostat
Honeywell Econostat Low Temp Heat Only Mechanical Thermostat - T822K1042 - perfect for low temp appications like garages.
This simple mechanical thermostat offers a setpoint range of 35 F to 85 F
Features:
Vented cover for improved temperature sensing.
Setting lever and thermometer scale on thermostat cover.
Mounts directly on the wall or on vertical outlet box.
Integrated thermometer and setting scale.
Mercury Free
Specifications:
Application Heat Only
Mounting Vertical
Color Premier White®
Stages 1 Heat
Terminal Designations R, W
Switch Positions (System) HEAT-OFF
Switch Type Precision Snap Action
Switching Action SPST
Accuracy (F) ±2 F
Accuracy (C) ±1 C
Dimensions (in.) 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
Dimensions (mm) 121 mm high x 73 mm wide x 35 mm deep
Setting Temperature Range (F) 35 F to 85 F
Electrical Ratings 20 to 30 Vac
Heat Current 0.02 A to 1.0 A running
Sensor Element Bimetal
Voltage 20 to 30 Vac
