Honeywell T87K1007 Round Mercury-Free Heat-Only Thermostat Heat, White
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

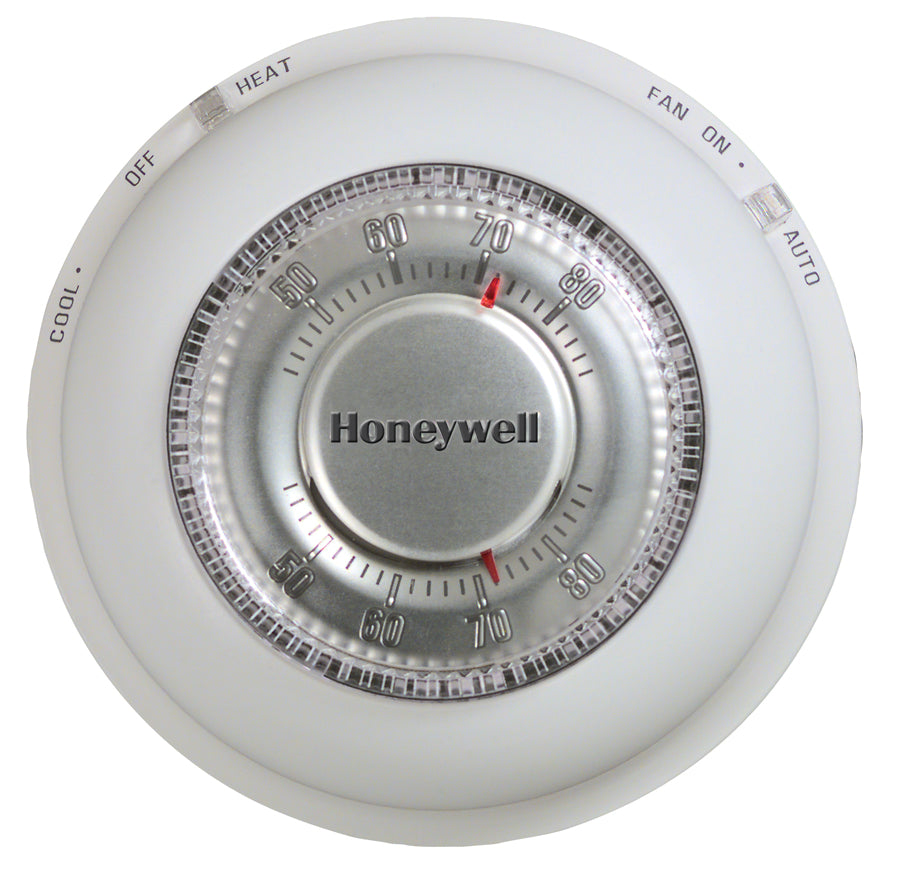

The Round® Mercury Free Thermostat with manual changeover and R,W,Y terminals for single stage heating systems
Mercury Free
Classic Styling
Premier White®
Separate temperature setting and thermometer
The T87K heat only works with 2 or 3 wire heat only systems
The Easy-To-SeeT has enlarged scale and raised numbers--plus it click at every 2 degrees Fahrenheit change
FEATURES:
Description- The Round® Heat Only Mercury Free Thermostat
Application- Heat Only
Mounting- Round
Color- Premier White®
Stages- 1 Heat
Power Method- Uses stored power from heating controls.
Terminal Designations- R, W, Y
Switch Type- Relay
Accuracy (F)- 2 F
Accuracy (C)- 1 C
Dimensions (in.)- 3 11/16 in. diameter x 1 3/4 in. deep
Dimensions (mm)- 94 mm diameter x 45 mm deep
Setting Temperature Range (F)- 40 F to 90 F
Frequency- 60 Hz;50 Hz
Cycles per Hour Adj.- 1,3,5,9
Heat Current- 0.02-1.2A running
Sensor Element- Thermistor
Operating Humidity Range (% RH)- 5 to 90% RH (non-condensing)
Voltage- 20 to 30 Vac
