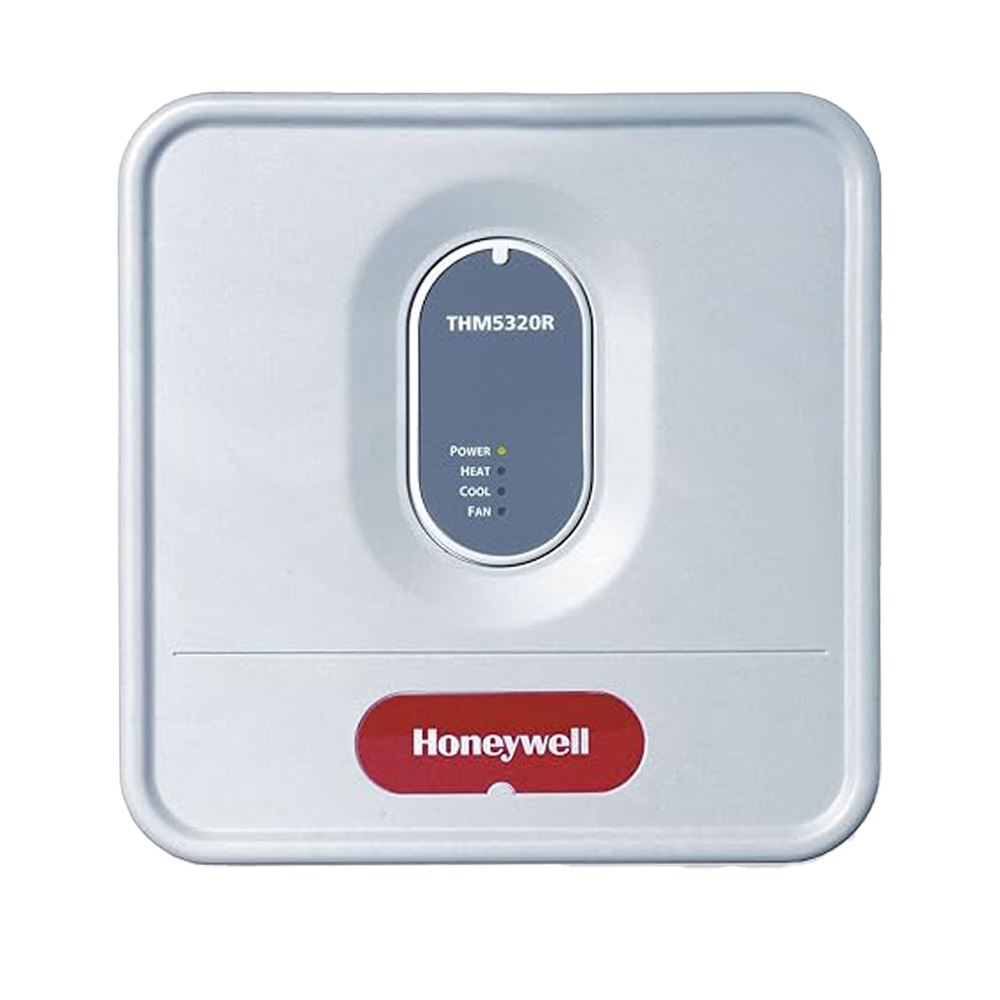

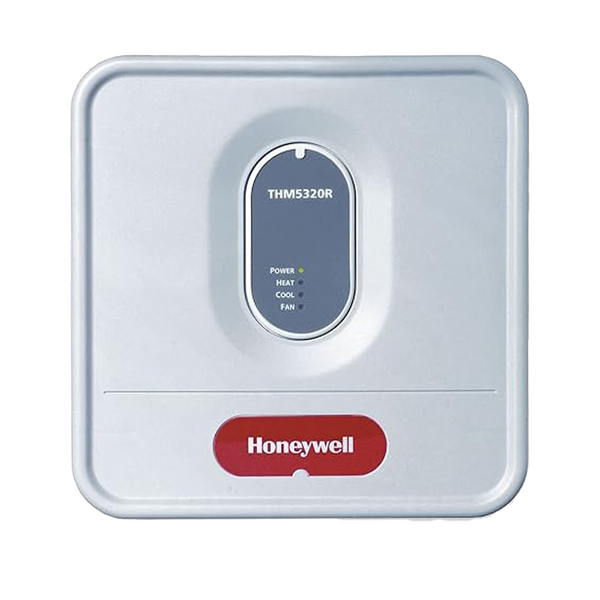

Honeywell THM5320R1000 FocusPRO Equipment Interface Module
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Honeywell THM5320R1000 Equipment Interface Module - WIRELESS RECEIVER ONLY
Easily relocate thermostat or upgrade equipment without running new wires using this module and a wireless FocusPRO® thermostat.
Features:
Powered by RedLINK™ reliability
No interference with other wireless devices in the home
Works with TH6320R1004 or TH5320R1002 Wireless FocusPRO® thermostats
Input for Return Air Sensor
Quick-connect terminal blocks
LEDs for power and system status
Specifications:
Description: Controls up to 3 heat / 2 cool heat pump systems or up to 2 heat / 2 cool conventional systems when used with the wireless FocusPRO® thermostat.
Application: Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity
Color: Gray
Stages: Up to 3 Heat/2 Cool Heat Pump or Up to 2 Heat/2 Cool Conventional
Terminal Designations: C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS
Dimensions (in.): 8 1/8 in. high x 8 in. wide x 1 7/8 in. deep
Dimensions (mm): 206 mm high x 203 mm wide x 47 mm deep
Electrical Ratings: 18 to 30 Vac, 50/60 Hz
Cool Current: 1.0 A running
Heat Current: 1.0 A running
Fan Current: 0.6 A running
Operating Temperature Range (F): -40 F to 165 F
Operating Temperature Range (C): -40 C to 73.9 C
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Comments: Equipment Interface Module is also available in kits
Voltage: 18 to 30 Vac
Parts Needed for Operation (not included): TH6320R1004 or TH5320R1002 Wireless FocusPRO® Thermostat
