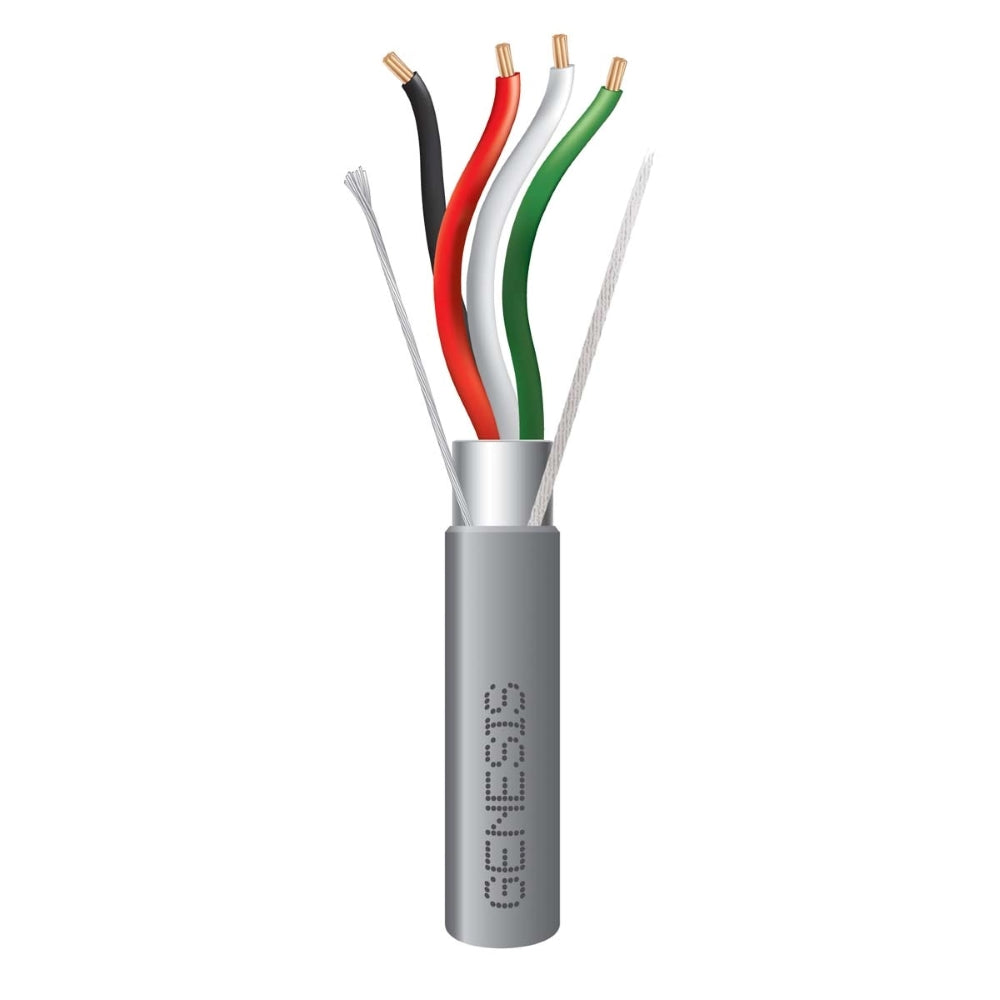

Honeywell TS-18/4 18-4 Twisted, Shielded, Non-Plenum Wire, 100ft Cut

Notify me when this product is available:

TS-18/4-BF_100 18-4 Twisted, Shielded, Non-Plenum-rated Wire - 100 FT Cut 18 AWG 4 Stranded Conductors Shielded Ratings: CMR, CL3R, FPLR, FT4, Sunlight Resistant Approvals: ETL Listed Construction: Conductor 18 AWG 19 Strand Bare Copper Conductor Count 4 Insulation Polypropylene (0.006" nom.) Insulation Colors Black, Red, White, Green Lay Length 3.00" nom. Shielding Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain Rip Cord Yes Jacket PVC (0.017 " nom.) Overall Diameter 0.180" nom. Print Legend GENESIS P/N 2215 4C 18AWG SHIELDED 3038058 (ETL) CL3R OR FPLR OR CMR C(ETL)US FT4 SUN RES 75C (RoHS) W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9 Properties: Operating Voltage 300 Volts max. DC Resistance 6.66 Ohms/1000' at 20°C Capacitance 36.3 pF/ft. nom. Impedance 41 Ohms nom. Temperature -20°C to 75°C Flame Rating UL 1666 (Riser); CSA C22.2 No. 2556 (FT4) RoHS Compliant Yes Country of Origin USA
