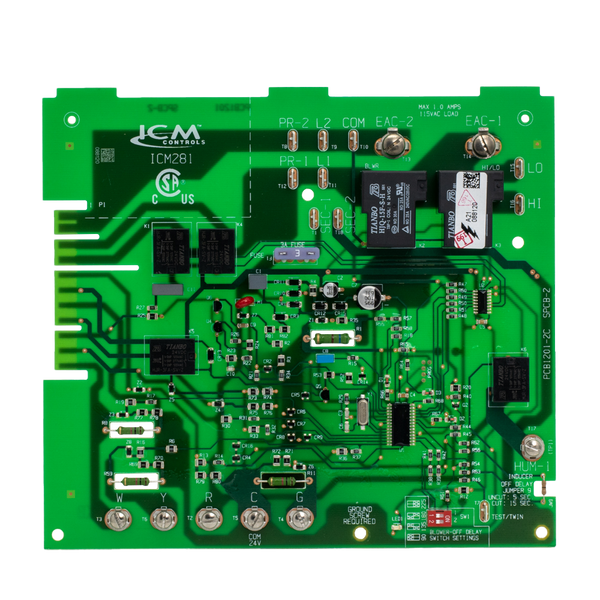

ICM Controls ICM281 Furnace Control Replacement for Carrier
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The ICM281 fixed speed furnace control replaces the following Carrier/BDP modules: CESO110057, CESO110057-1, CESO110057-2, CESO110048, CESO110020, and HH84AA016
The ICM281 has incorporated LED diagnostics to assist in troubleshooting. It is recommended that a sight glass (not included) be installed in a convenient location on the furnace to take advantage of this feature. If a sight glass is not installed, the self-test feature of the board can still be used for routine troubleshooting. A fault code label is included in this package and must be installed on the furnace.
Features
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
Microprocessor-based
Designed for 100% gas shutoff in case of ignition failure
Twinning
Reverse polarity protection
Secondary brownout voltage protection
Compatible with 24 VAC standard thermostat
Provides diagnostic LEDs to aid in troubleshooting
