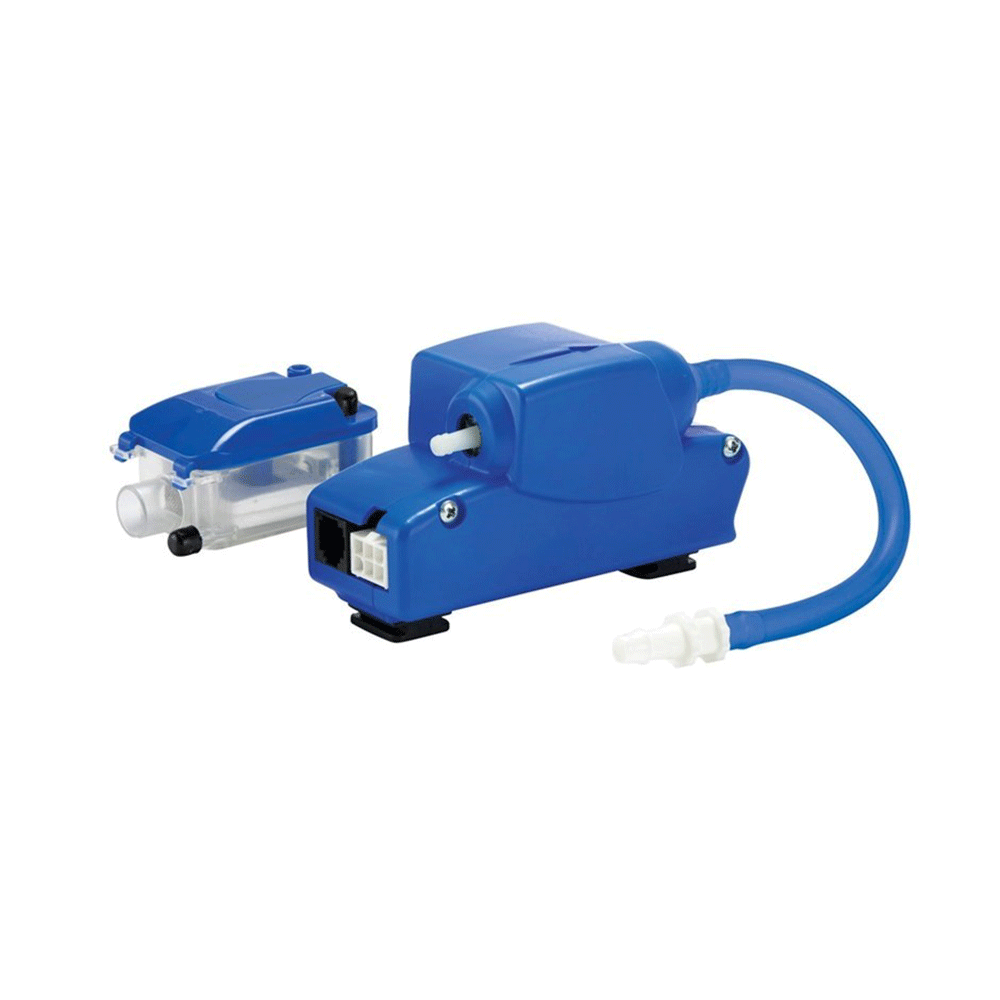

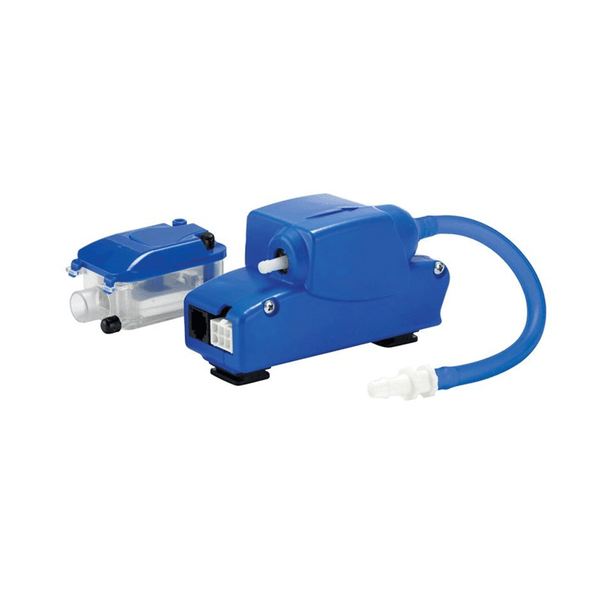

Little Giant 553507 EC-1-DV Mini Condensate Removal Pump
The Little Giant EC-1DV Series Mini Condensate Pump, 553507, is designed to accommodate multiple electrical requirements within one pump. The DV suffix indicates that the pump is capable of operating from a wide range of supply voltage to maintain consistent pump performance.
The EC-1-DV Series is a new concept for mini pumps incorporating an improved noise reducing design and reliable solid-state switching technology. Easy to install brackets provide a quick and precise method to accurately position and secure both parts of the pump quickly. The two-piece design allows the reservoir to be placed within the air handler while the pump-controller is located outside the air handler. The two components are connected via a convenient communications wire and suction tubing.
EC-1-DV is designed for use in removing condensate from wall mount, ductless mini-split air conditioners up to 34,000 Btu. It can also be used to remove condensate from fan coils and suspended ceiling air onditioners. The pump can be installed above the air conditioner in a false ceiling, behind the wall mount air handler, or in plastic conduit or line-set channel. The reservoir, featuring a clear tank, connects to the condensate drain hose and must be positioned flat and horizontal while the pump can be oriented in any position within 3.3 ft.
Pump - Controller Features
Normally-closed relay rated at 8 A resistive - 250 V alarm
21 dB(A)*
1/4" I.D. pump discharge outlet
Elastomeric mounting grommets on pump housing bracket
Elastomeric passive vibration isolator used to dampen pump vibration
Separate wall bracket for pump and reservoir included
Thermal protection: 176 °F
60" power cable
3.3' communications cable (pump to reservoir)
Ambient temperature range: 32 °F - 140 °F
Maximum water temperature: 140 °F
2-year warranty
Reservoir
Clear reservoir for instant visual inspection of water level, float, and filter
Hall effect on/off level sensors with high-water sensor feature
Extra-large filter screen for longer intervals between cleaning
Multi-step drain hose adapter (1/2", 5/8", and 3/4")
Simple to open reservoir for easy maintenance
