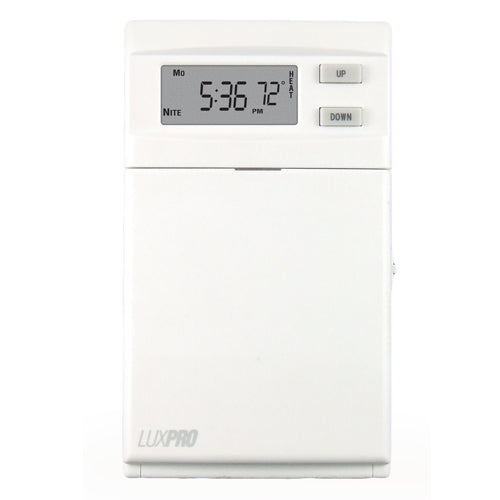

LuxPro Programmable Line Voltage Thermostat PSPLV512

4 items left

Description

A cost-effective, energy-saving programmable thermostat for baseboard, cable and ceiling heat. This thermostat features separate programs for weekdays and weekends with 4 settings per day. You can have the thermostat provide the temperature you want when you wake up and turn the heat down during the day when you leave the house, saving energy! The thermostat can also automatically bring the heat back up in the evening and offer yet another setting to keep you warm through the night as you sleep. Your custom settings start over each morning for energy savings day in and day out. Also, the patented Speed Dial® makes this thermostat easier than ever to program.

Features

  • Easy installation
  • Programmable 5/2-day
  • Easy-view back light
  • Optional wall plate model# WP510
  • Positive on/off switch
  • Requires (2AA) Alkaline Batteries (included)
  • UL approved
  • Display option: fahrenheit or celsius temperature
  • Vacation hold
  • Temporary temperature override

Specs

  • Dimensions 2.7 IN W x 4.7 IN H x 2.4 IN D
  • Compatibile With
    • 1 stage heat only; single or double pole 120/240 VAC systems
    • Line voltage (120/240V)
    • Hydronic (hot water) systems with motors up to 1/4 HP
    • 120V (1,800W resistive)/240V (3,600W resistive) line voltage systems (without transformer)
    • Max 15 amps
  • Not Compatibile With
    • Conventional 24 V heating and cooling systems
  • UPC: 021079065127

IMPORTANT: If not installed properly, this unit could cause a fire. For applications such as baseboard electric heat (resistive), the max load is 15 Amps, from 20 Amp circuit breaker. For heat applications such as a hot water circulating pump (inductive), the maximum load is 1/4 HP @ 120Volts (this thermostat is not compatible with heating appliances which contain both an electric heating element (resistive) and a blower fan (inductive load) within the same device. This product should be installed by a licensed electrician.
