83904

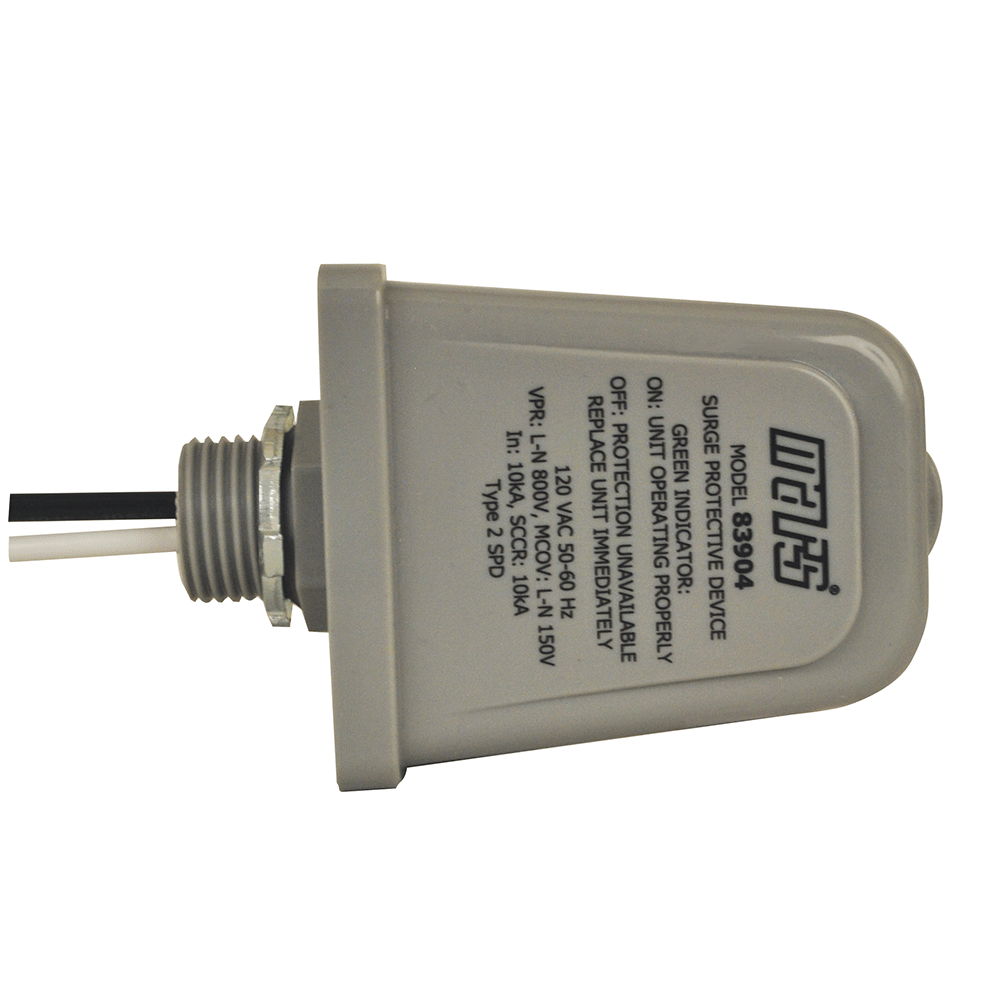

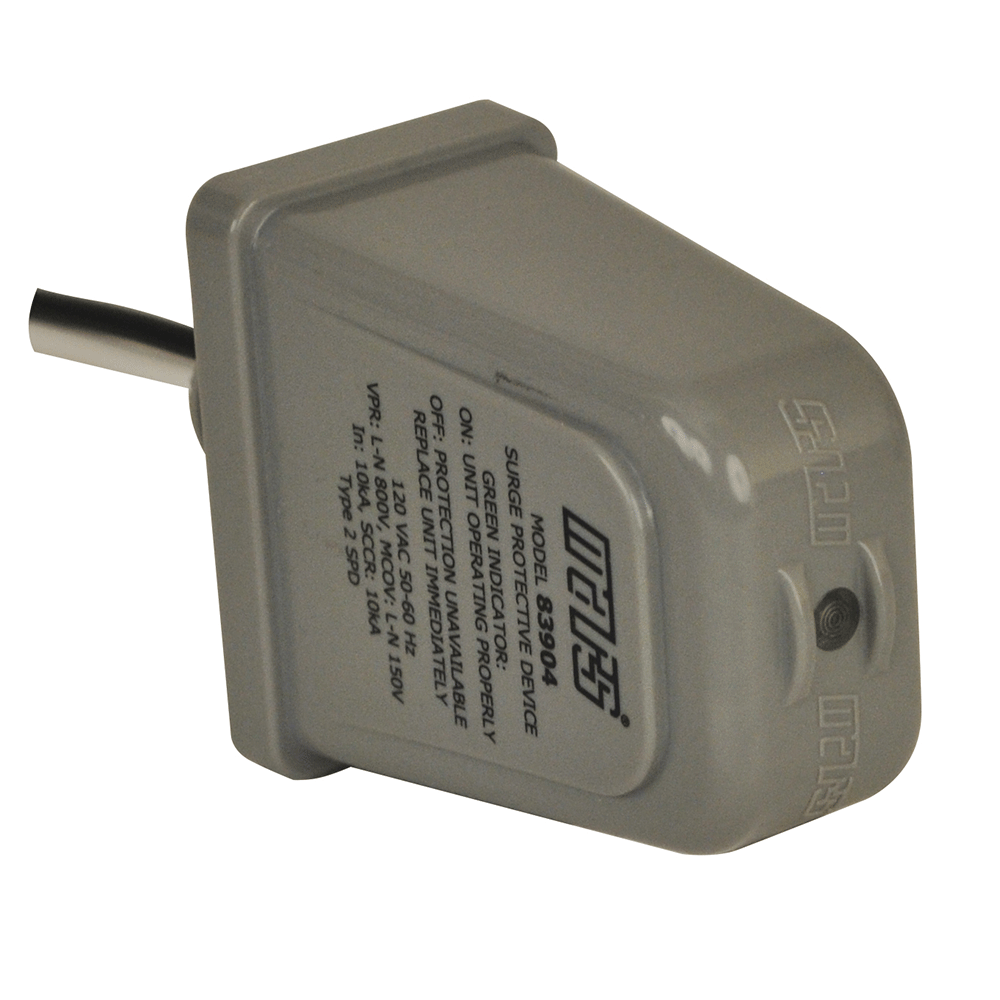

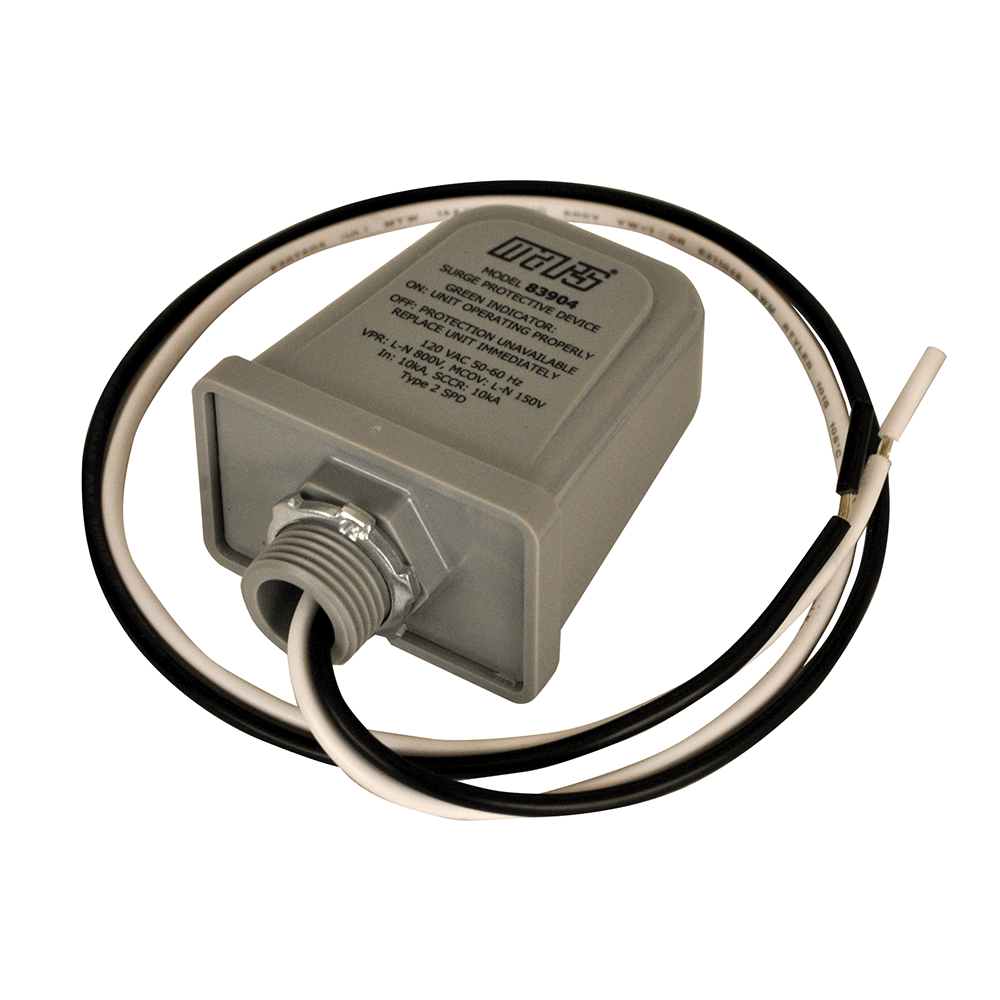

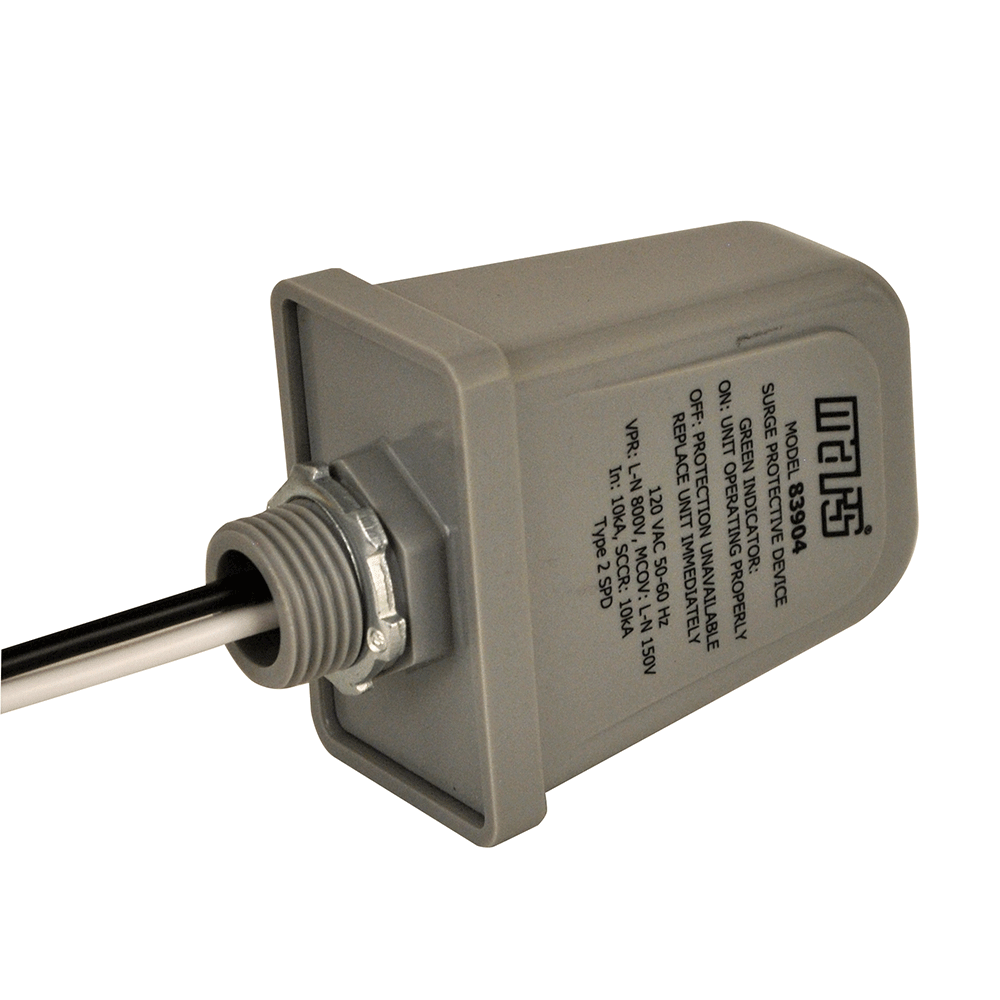

Mars 83904 Surge Protective Device for 120V Furnaces and Air Handlers
The MARS 83904 SPD is designed specifically for 120V furnace and air handler applications. The furnace and air handler contain components that must be protected from surges such as, ECM motors, Control Boards, Transformers. The MARS Surge utilizes thermally protected MOV technology for safe and reliable protection of equipment. The 120V Surge Device is easy to install with only 2 wires to connect.
What 83804 Protects
Ideal for 120V Ductless Systems
Furnace & Air Handlers
Inverter Boards
ECM Motors
Control Boards
Transformers
Relays
Sensors
Features
Easy 2 Wire Installation
10" Pre-stripped Leads
Green LED Status Indicator
Thermally Protected MOVs
120V Single Phase 50/60Hz
Short Circuit Current Rating: 10,000 Amps
MCOV L-N 150V
Voltage Protection Rating: L-N 700V
UL 1449 4th Edition
Type 1 or 2 Surge Protection Rating
3 Year Warranty
$7,500 Connected Equipment Warranty
