NAVAC NRRD Twin-Cylinder Recovery Unit with Oil-Free Compressor
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

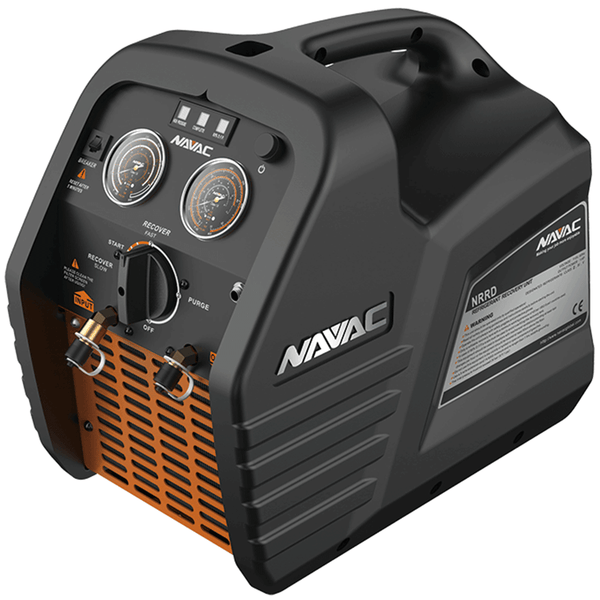

The NAVAC NRRD Recovery unit by NAVAC features one key operation, twin cylinder design, oil-free compressor, self-purging and high-pressure protection.
Specifications
Refrigerant Type:
Category III: R-12, R-134a, R-401C, R-500
Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509
Category V: R-402A, R-404A, R-407A, R-407B, R-410A, R-507
Power Supply: 115V / 60Hz
FLA: 12 Amps
Motor: 1 Horsepower
Max Current Draw: 10 Amps
Compressor: Oil-less, Air-cooled, Piston style
Automatic Safety Shut-Off: 558 psi / 38.5 bar
Dimension: in 18×10×14
Weight: 30 lbs
Warranty: Year 1
Recovery Rate
R-22
R-134a
R-410a
Direct Vapor
0.49 lbs/min
0.31 lbs/min
0.44 lbs/min
Direct Liquid
6.17 lbs/min
4.70 lbs/min
6.06 lbs/min
Push / pull Liquid
11.60 lbs/min
10.80 lbs/min
12.61 lbs/min
