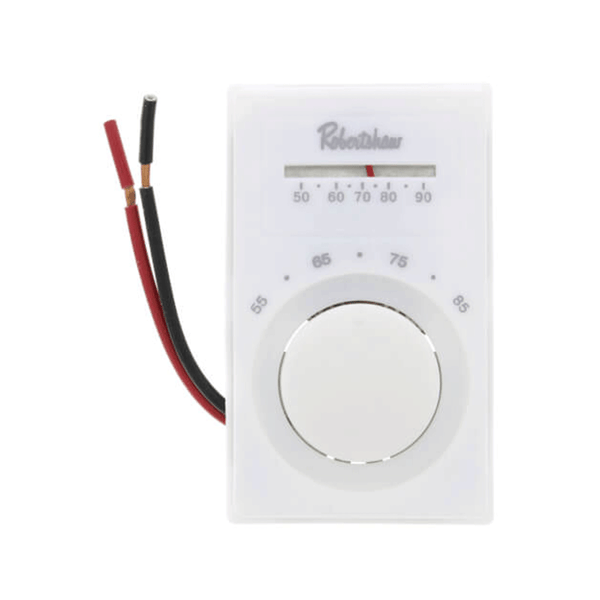

Robertshaw 803A Cooling Line Voltage Thermostat With SPST Switch
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Robertshaw 803A is a mercury-free cooling SPST switch action line voltage thermostat. This thermostat features bimetal temperature sensing for improved thermal performance and low voltage control accuracy.
The 803A features a temperature control range of 50ºF to 90ºF (10ºC to 32ºC). The electrical rating is as follows: 25 AMP at 250 VAC RES, 18 AMP at 277 VAC RES, 1 HP at 125 VAC, 2 HP at 250 VAC, 125 VA Pilot Duty.
Features
Convenient temperature display - View comfort level at-a-glance
Bimetal temperature sensing - For improved thermal performance
Mercury-free - No leveling or special disposal required
J-Box compatible - Not only will it meet code, but it speeds up installation
Positive-off switch - Assured shutdown of HVAC system
Universal replacement - Can retrofit most existing electric heat thermostats
