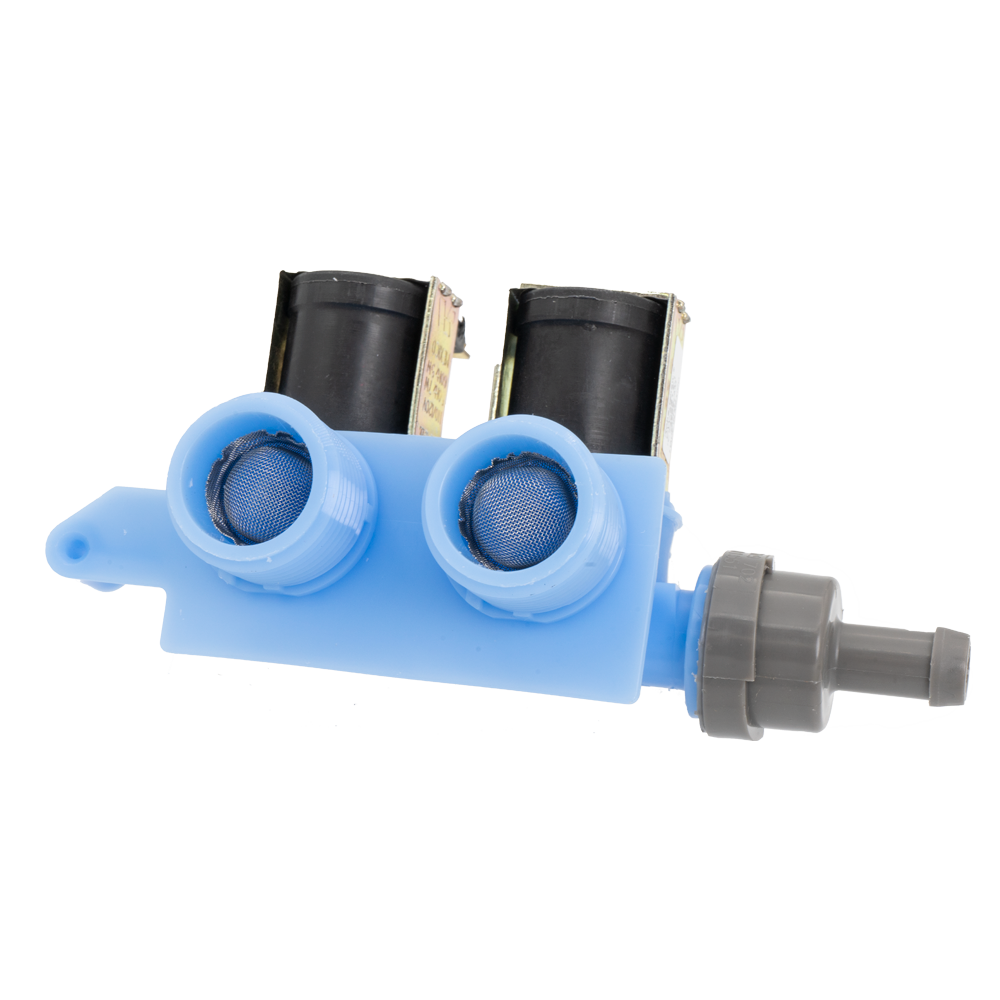

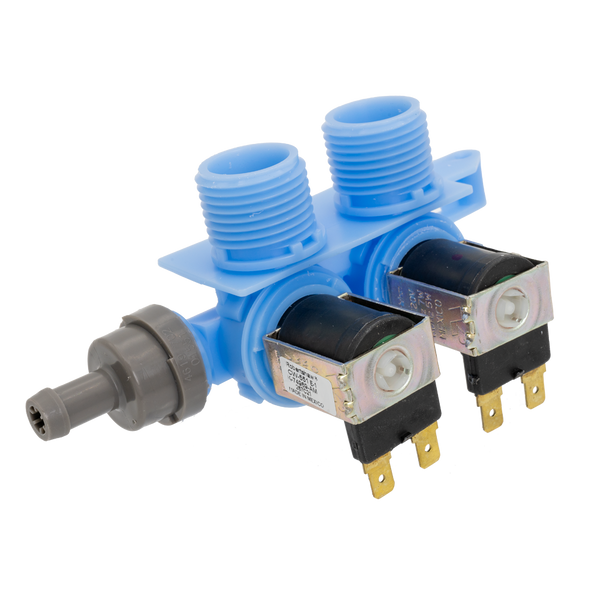

Robertshaw CW-551 E-2 Clothes Washer Valve (120Vs)
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Robertshaw CW-551 is a 120 VAC and 60 Hertz, E-1 (non-regulated) Mixing Water Valve Series, designed for laundry clothes washer applications.
Applications
Residential
Clotheswasher
Mixing Water Valve E-2
Features
Pilot-operated diaphragm provides high flow capacity with minimum power requirements
Compact design compared to predecessor valves to allow more flexibility for applications
Flange mounting with screw boss is molded into the body for ease of installation
Design uses a staked coil L frame with drawn pole sleeves to eliminate loose or missing pole pieces
Improved coil bobbin design reduces problems
Slow closing operators reduce water hammer and extend valve life
Spin-weld assembly minimizes problems caused by loose or missing screws
Suitable for applications using liquids up to 160°F (71°C)
Quiet operation
Stainless steel inlet screens with 60 x 60 mesh
Specifications
Body Material: Polypro
Electrical Rating: 120V, 60 Hz, 5 Watts
Flow Rate: 1.69 to 2.54 GPM
Inlet Size: 3/4" 11.5 NHT
Operating Pressure: 7.5 to 147 PSI
Outlet: 3/8" ID Hose
