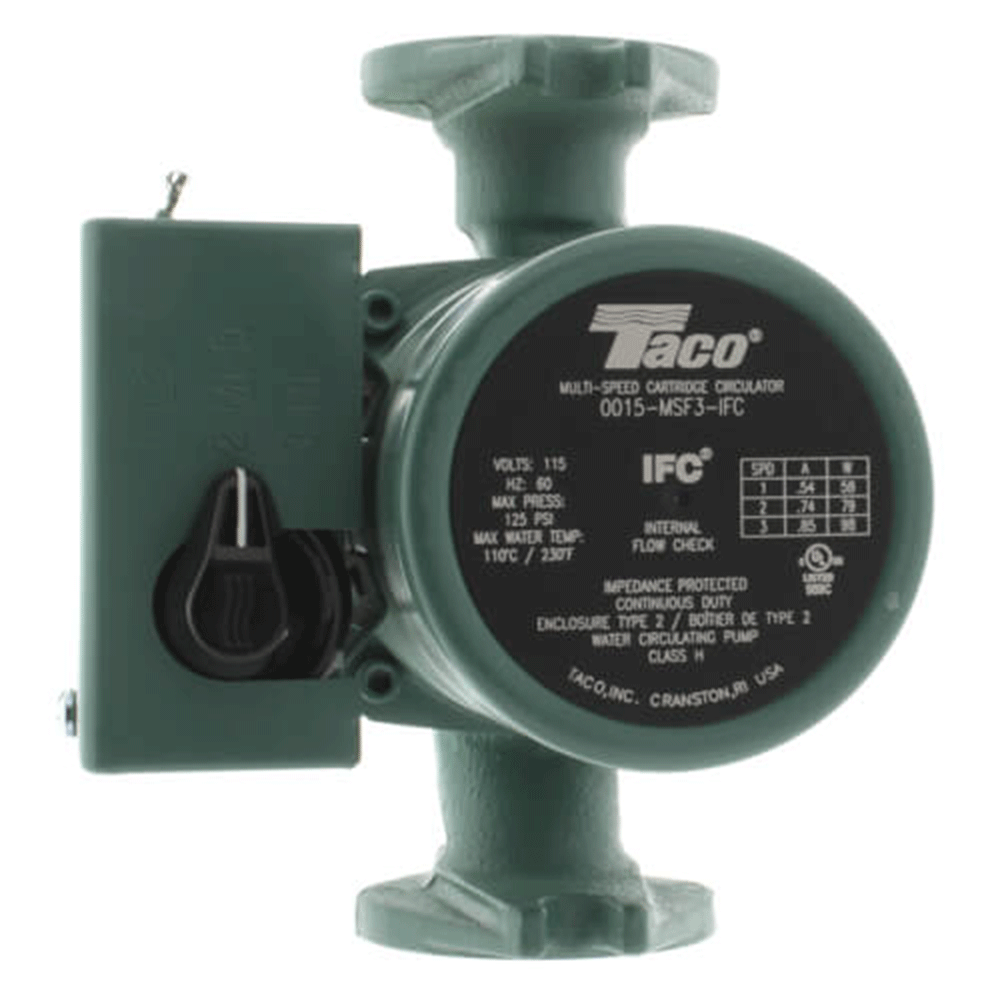

Taco 0015-MSF3-IFC 1/20HP Cast Iron Circulator Pump, 3-Speed
The Taco 0015-IFC is a 1/20 horsepower cast iron circulator pump with integral flow check with a powerful, high performance motor to the durable 3-speed switch - says "heavy duty". With the highest starting torque in its class, this circulator delivers the performance and fine tuning capabilities sure to satisfy the most demanding hydronics system installer.

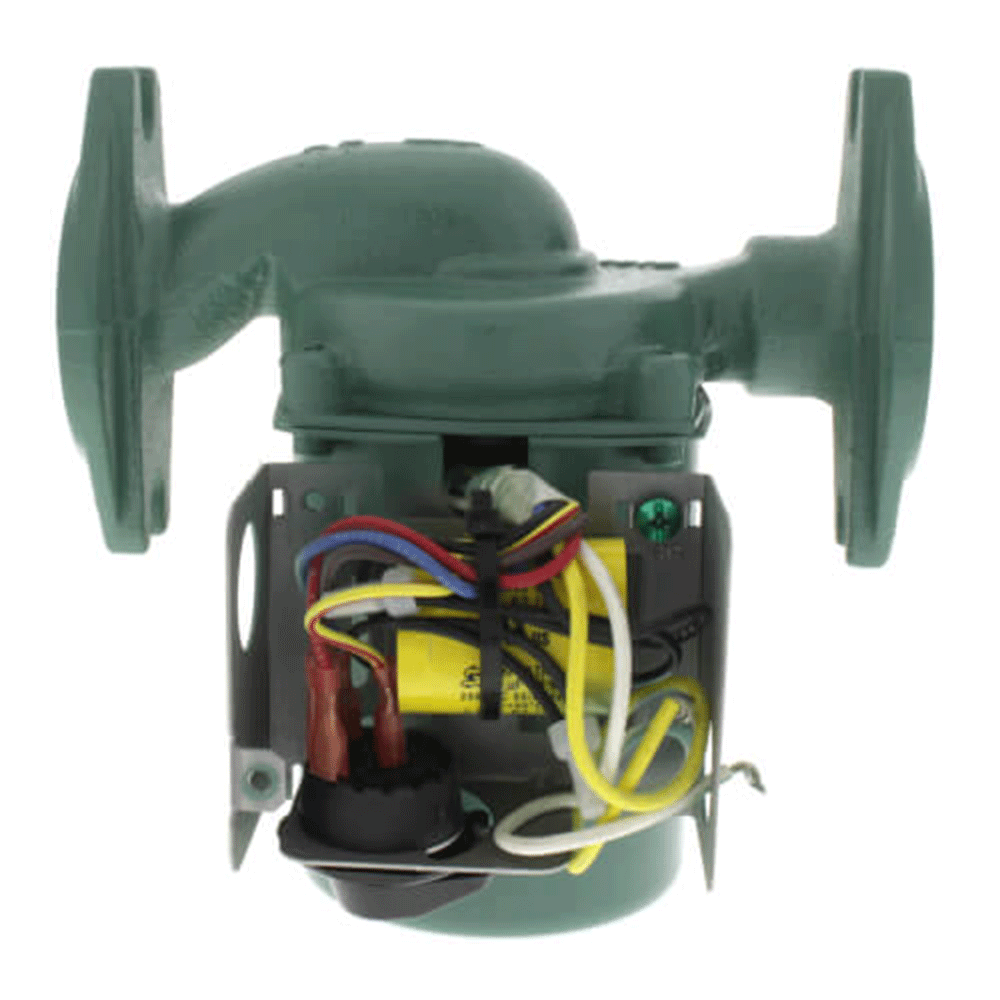

The 3-speed circulators feature a removable, uni-body Integral Flow Check (IFCÂ®) that maximizes flow, as well as prevents gravity flow, even in the tallest buildings. Wiring is a snap thanks to an extra roomy capacitor box and convenient dual electrical knock-outs.
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of todayâ€™s hydronic heating systems. Itsâ€™ 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFCÂ® ) that prevents gravity flow, reduces installation costs and improves pump performance.
Fine tune to system requirements
Highest performance & starting torque in class
Heavy duty construction for longer life
Removable high-flow Integral Flow Check (IFC)
Replaceable cartridge design
Quiet, efficient operation
Self lubricating, no mechanical seal
Wide range of applications
Cast Iron, flanged construction
Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 00R-005RP
Valve Assembly Trans/Relay: 0010-025RP
