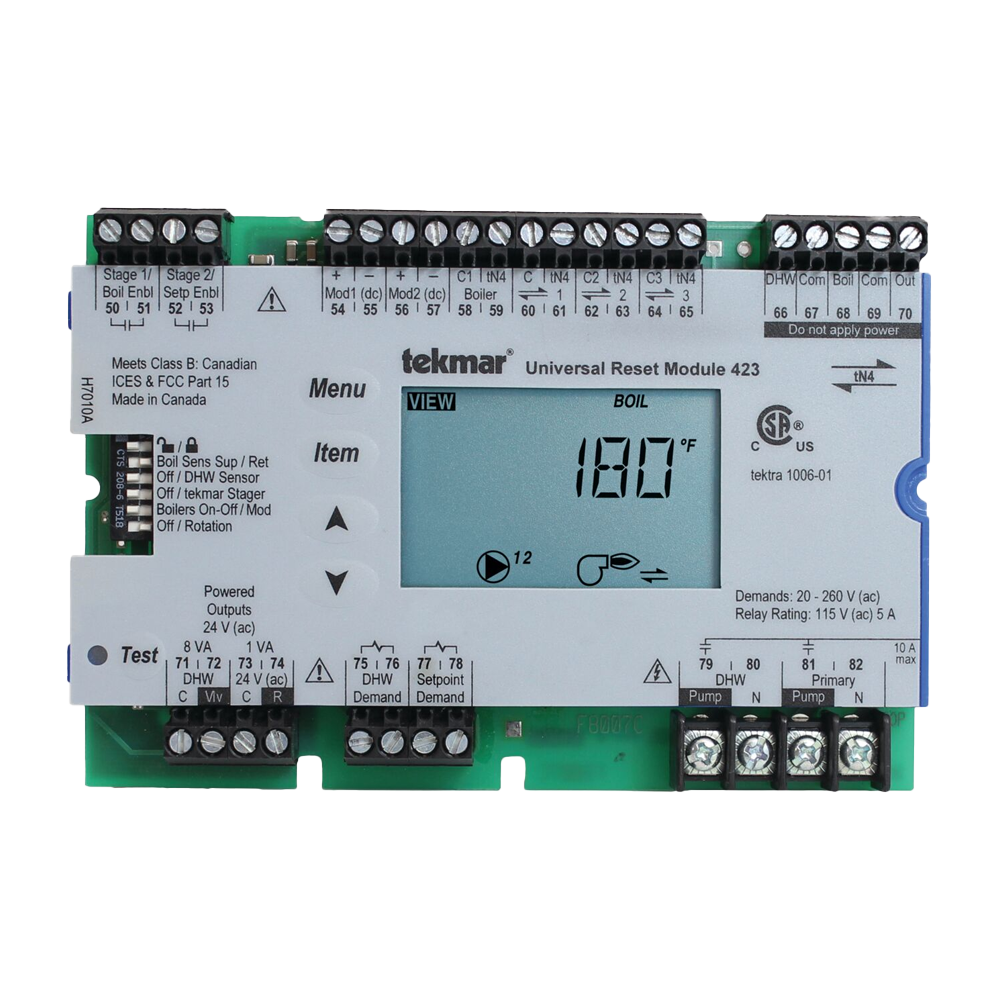

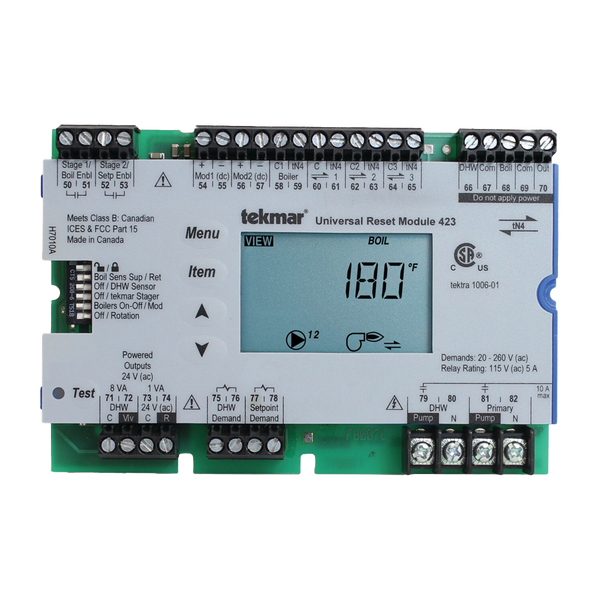

Tekmar 423 Universal Reset Module, Four tN4, Two Boiler, DHW and Setpoint
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Universal Reset Module 423 is designed to operate all of the mechanical equipment in a hydronic heating system, except for zones, coordinating their operation through network communication. It can be used in applications ranging from a single zone of baseboard with an on/off boiler, to four temperature systems comprised of multiple fan coils, baseboard, mixed radiant floor zones, and two modulating/condensing boilers. This control regulates up to four space heating water temperatures through Outdoor Temperature Reset and Indoor Temperature Feedback. It is capable of controlling two on/off or modulating boilers, Domestic Hot Water, setpoint loads, and can expand up to 24 zones for each space heating water temperature (96 in total).
Features:
Outdoor temperature reset, indoor temperature feedback
Warm weather shut down, zone synchronization
DHW post purge, DHW control
DHW priority (optional), setpoint operation
Expandable up to 96 zones, two on/off or two modulating boiler control
Controls up to 4 water temperatures (with use of up to 3 mix expansion modules), automatic boiler differential
Exercising, boiler protection
Powered pump outputs, system setback (with optional timer)
One touch overrides (with optional User Switch)
