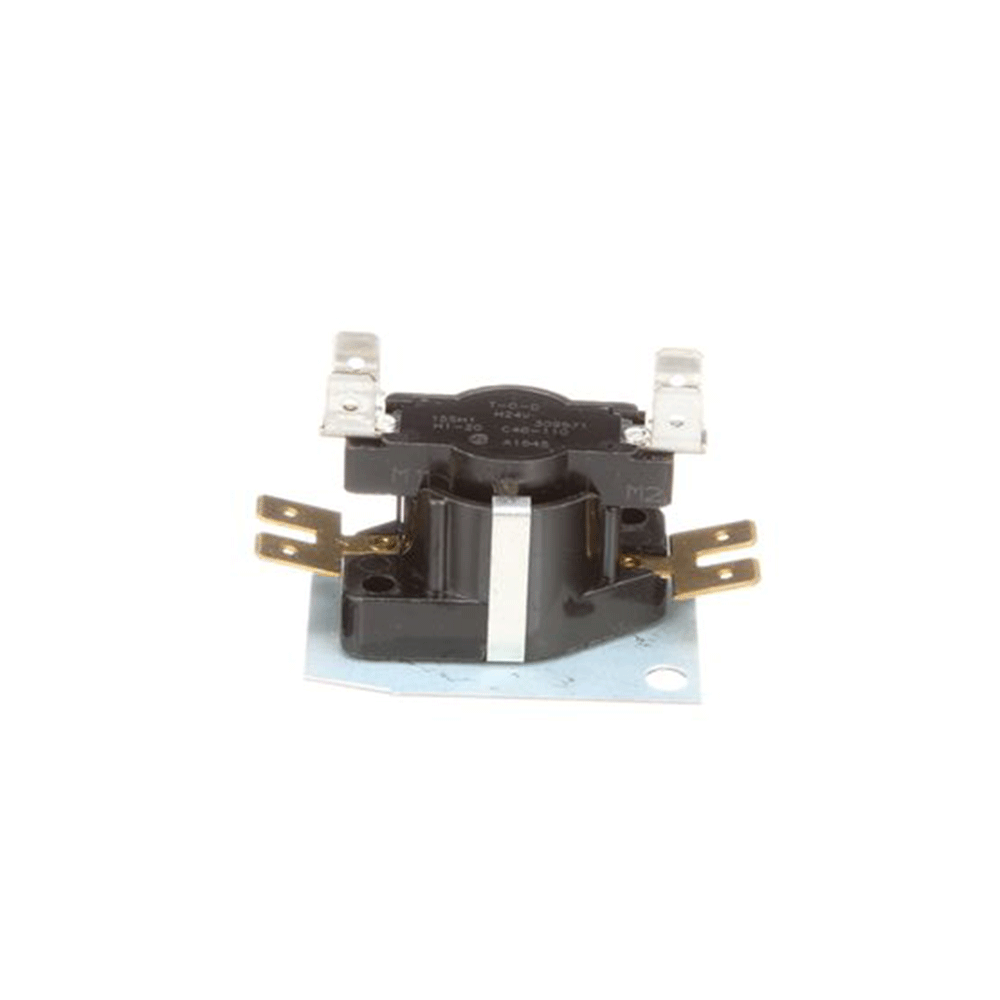

White-Rodgers 24A34-3 Electric Heat Sequencer with 2 Switches
The White-Rodgers 24A34-03 is a 1 timing, 2 switch electric heat sequencer direct replacement for most fan and heat sequencing functions.
Features
Replaces Honeywell, MARS, TOD, Gemline, Klixon (Texas Instruments)
24V input control
Multi-poise mounting
Any contacts (except M1 & M2) can be used as auxiliary contacts
Double quick-connect terminals for combination loads
Specifications
Timings: 1
Switches: 2
Timings On:
M1-M2: 1-20
M3-M4: 1-20
Timings Off:
M1-M2: 40-110
M3-M4: 40-110
INDUCTIVE (MOTOR) FULL LOAD 120 VAC: 14.0A
INDUCTIVE (MOTOR) FULL LOAD 240 VAC: 7.0A
INDUCTIVE (MOTOR) LOCKED ROTOR 120 VAC: 72.0A
INDUCTIVE (MOTOR) LOCKED ROTOR 240 VAC: 42.0A
RESISTIVE (NONINDUCTIVE) 120 VAC: 25.0A, 3000W
RESISTIVE (NONINDUCTIVE) 240 VAC: 25.0A, 6000W
RESISTIVE (NONINDUCTIVE) 480 VAC: 12.5A, 6000W
PILOT DUTY: 120-240 VAC 125 VA
