White-Rodgers 50A65-5165 Trane Integrated Furnace Control Replacement
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

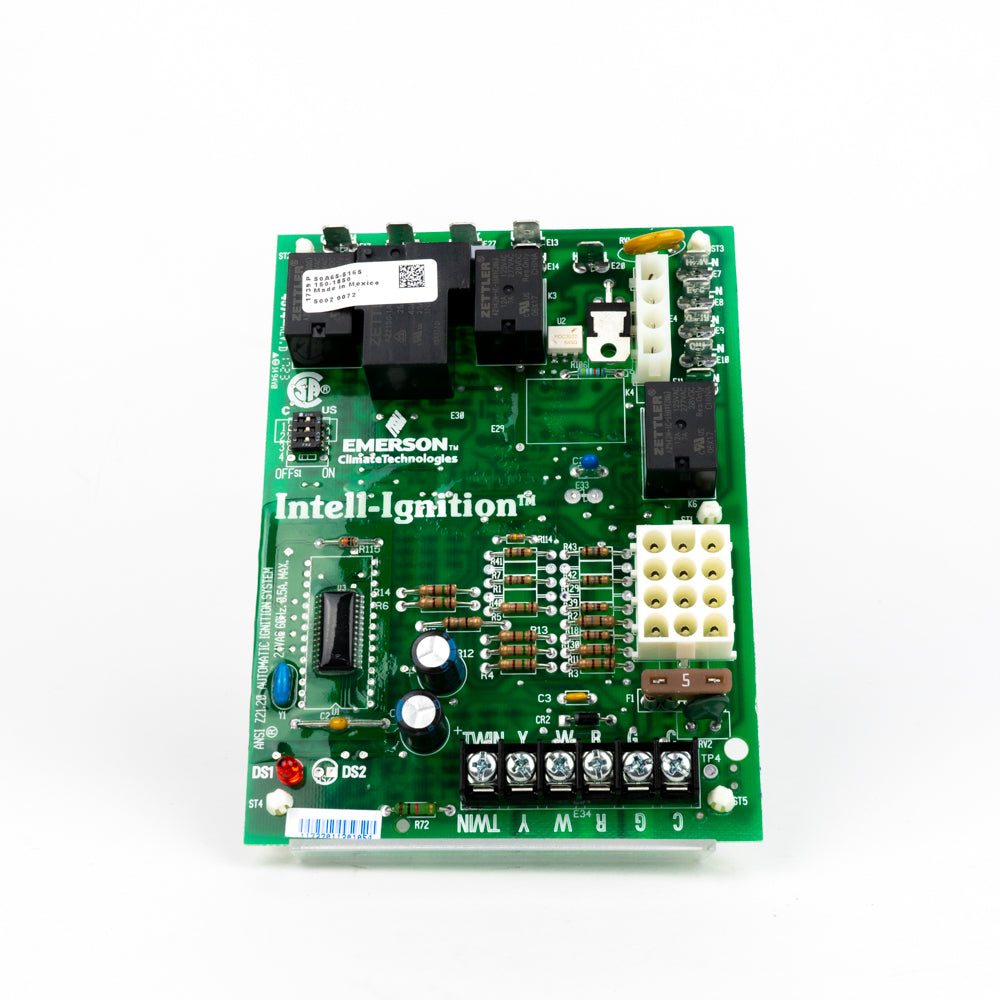

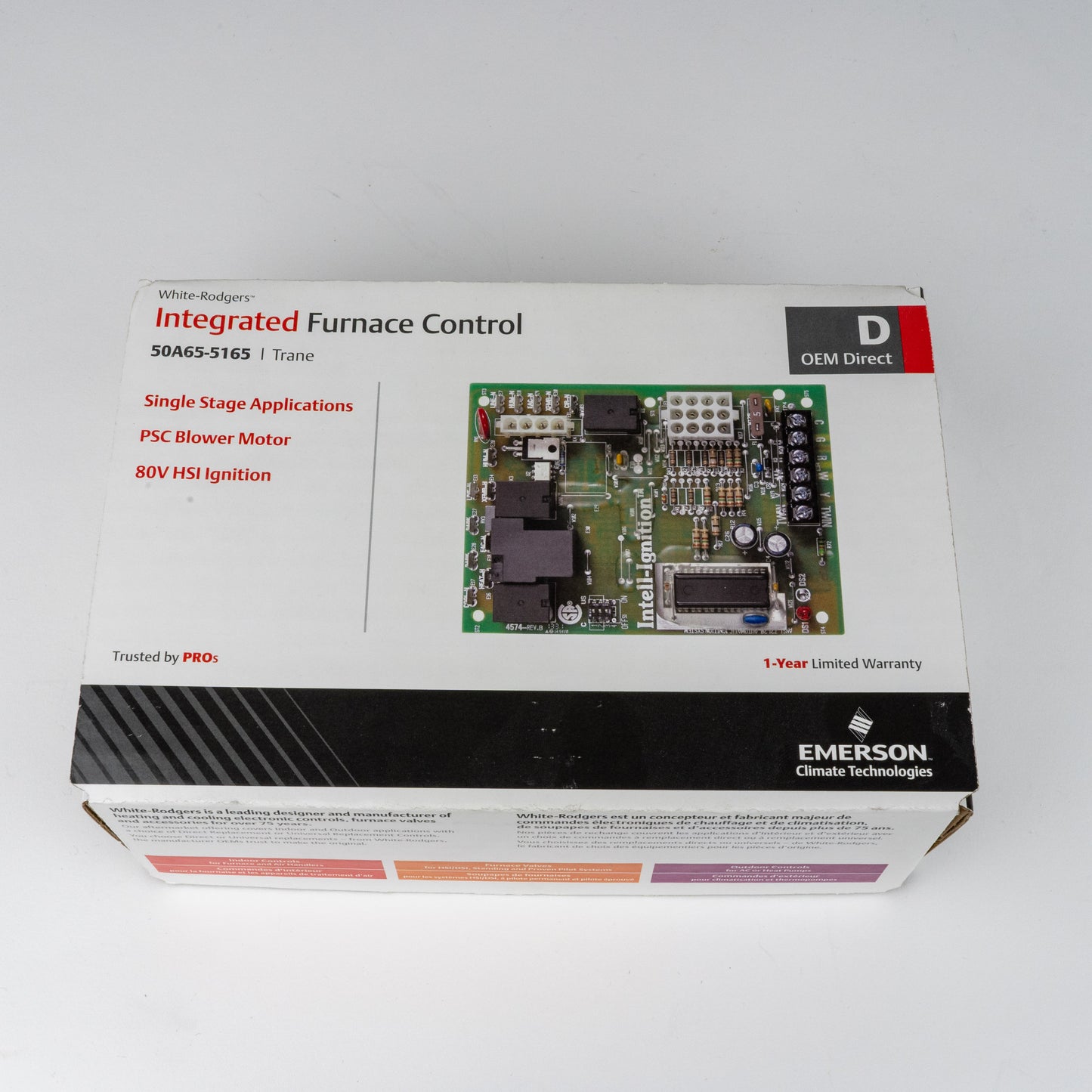

50A65-5165 - WHITE-RODGERS INTEGRATED FURNACE CONTROL KIT
The 50A65-5165 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. Signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shut-off during normal operation. These controls incorporates system fault analysis for quick gas flow shut-off, coupled with automatic ignition retry upon sensing a fault correction. It is designed as a replacement for the following controls: Trane CNT05164, CNT05165, White-Rodgers 50A65-475, 50A65-476, 50A65-5165.
80 VAC Ignitor Output
120 VAC Humidifier Output
120 VAC Electronic Air Cleaner Output
120 VAC 2-Speed PSC Circulator Output
Fuse Protection - 5 Amp
Furnace Status LED
Heat Fan OFF Delay (Dipswitch Selectable)
Y, W, R, G, C
