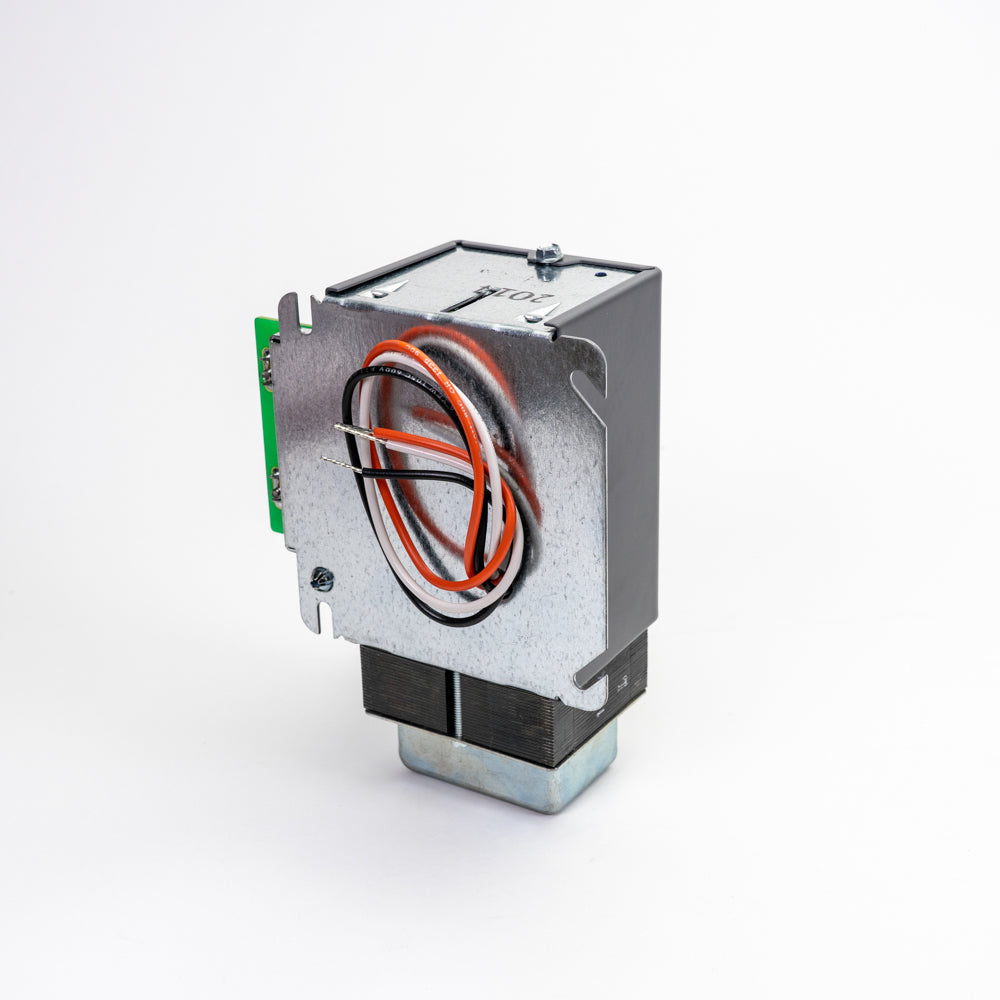

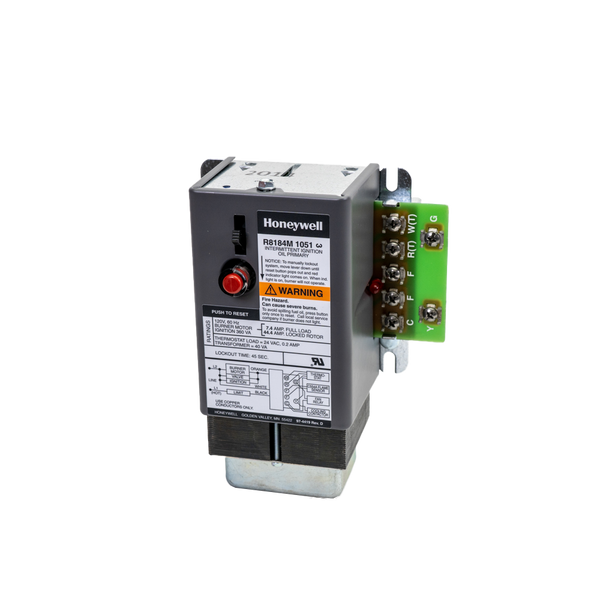

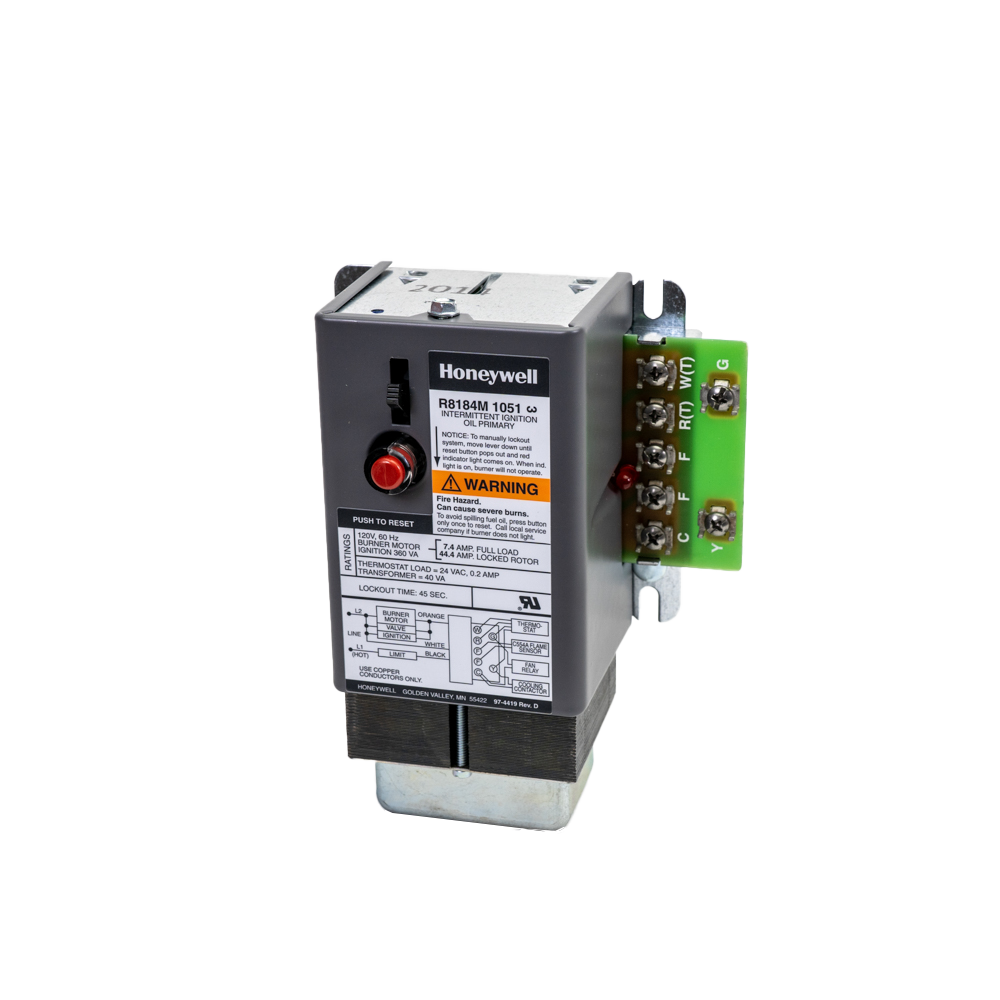

Honeywell R8184M1051 80-Series Protectorelay Oil Burner Control
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Operates the oil burner and oil valve (if desired) in response to a call for heat from a low voltage control circuit.
Features
Intermittent ignition is on while the burner is on.
Solid state flame sensing circuit.
External button to manually reset safety switch after lockout.
Enclosed safety switch must be manually reset after safety shutdown.
R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment.
Mounts on standard 4 x 4 in. junction box.
C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
