TAZ-4H

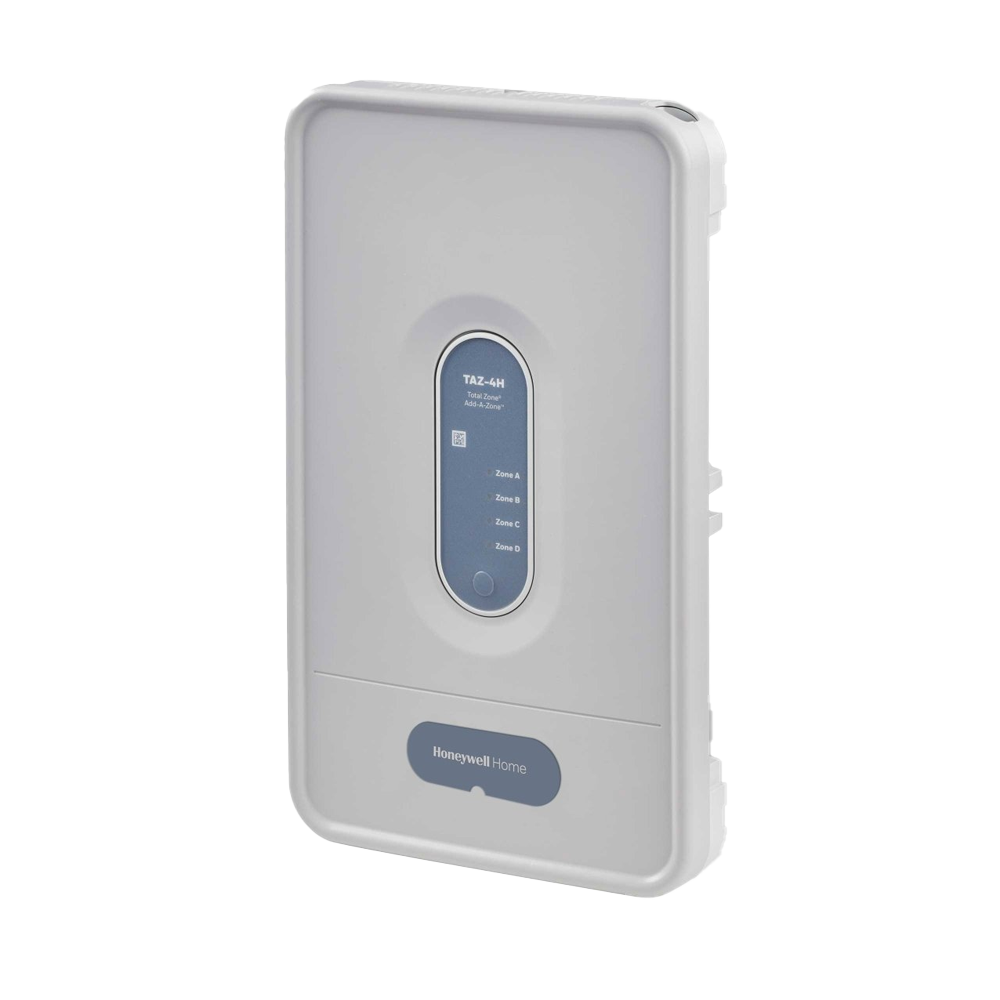

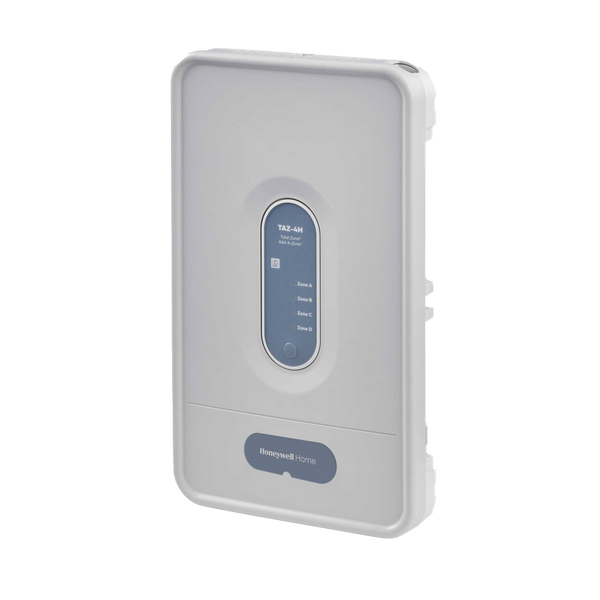

Honeywell TAZ-4H Add-A-Zone Zone Panel for HZ432 for 4+ Zones
The Honeywell TAZ-4H zone panel is designed for use with the HZ432 zone panel when more than 4 zones are required. Each TAZ-4H Zone panel can add up to 4 additional zones with a maximum of 32 zones per system. In most applications each TAZ-4H would have a separate transformer. The HZ432 and TAZ-4H can share the same transformer as long as the transformer used has sufficient VA to power the panels and all dampers.
Features
Intuitive installer setup with easy-to-follow, digital display uses real language to guide installer through configuration.
Standard checkout procedure ensures correct operation before leaving the job.
Robust push terminals for up to two wires per terminal.
Common-sense LEDs indicate damper state.
Control of two or three wire dampers with open or closed logic.
