0015E3-2F2

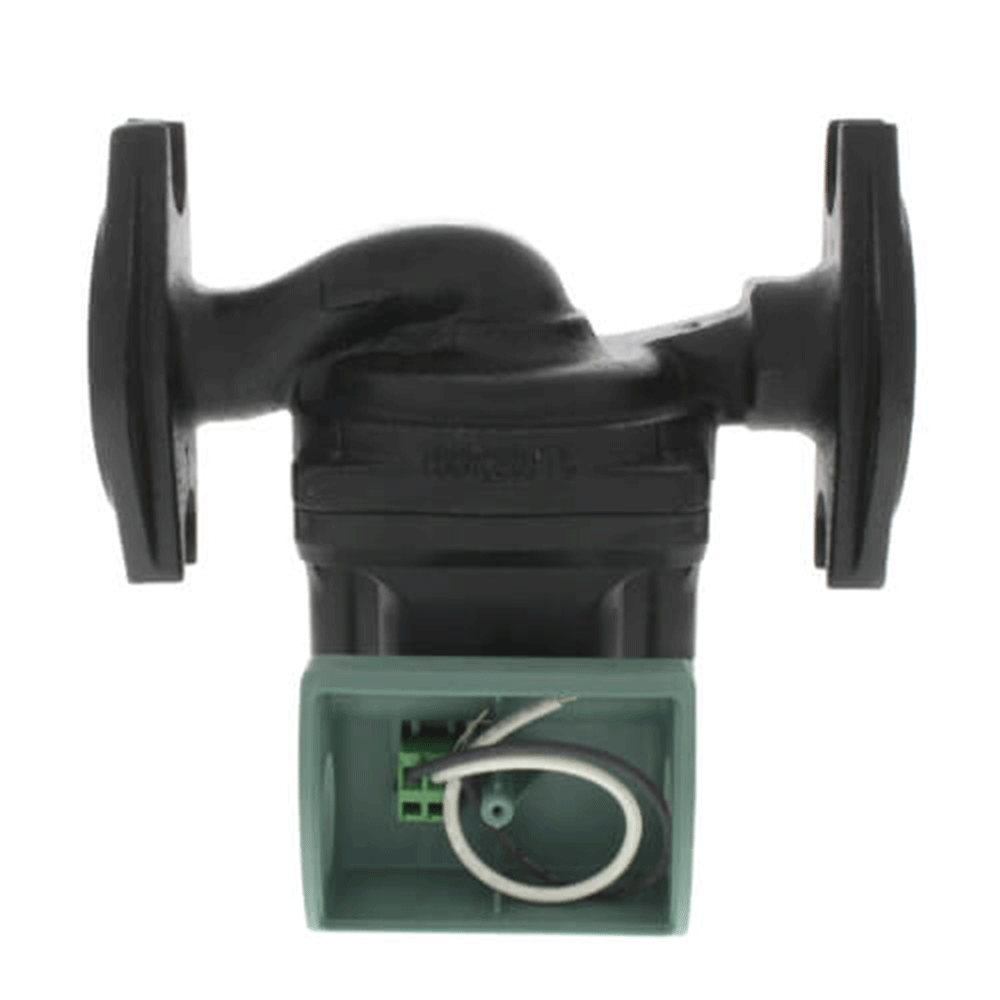

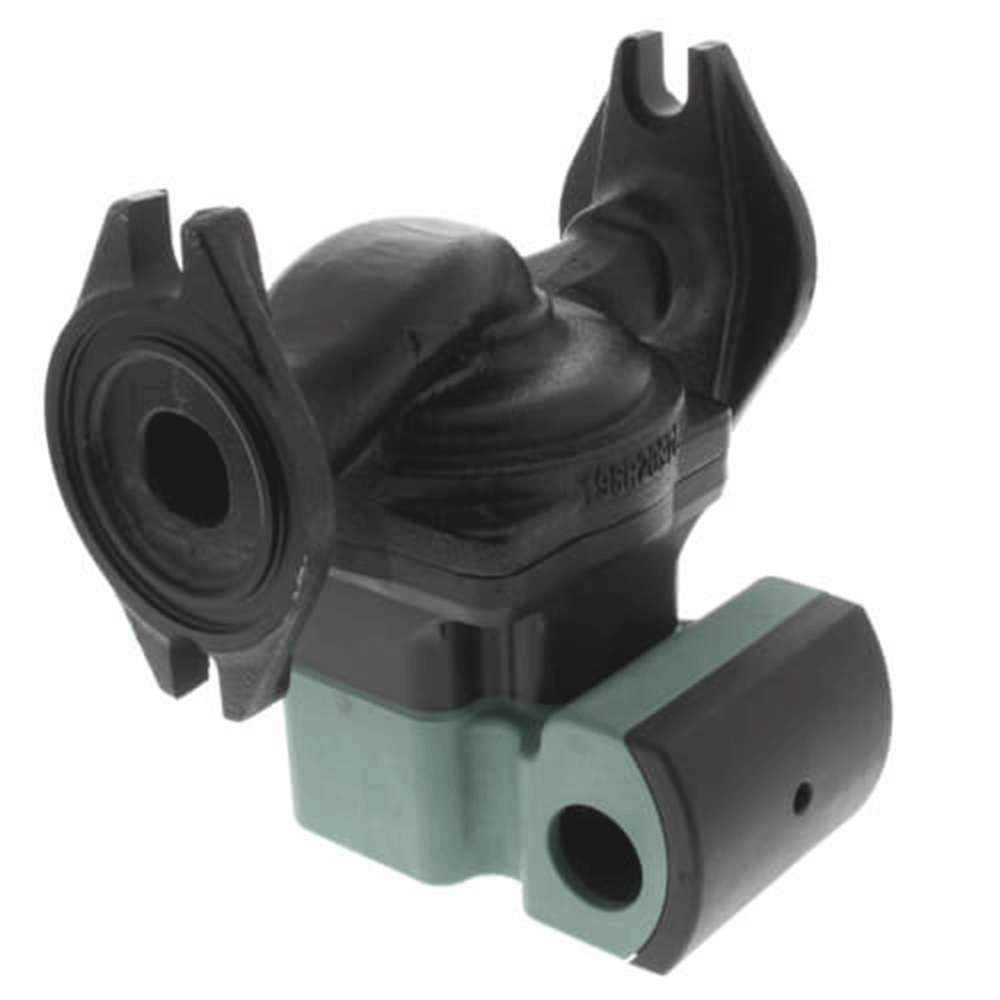

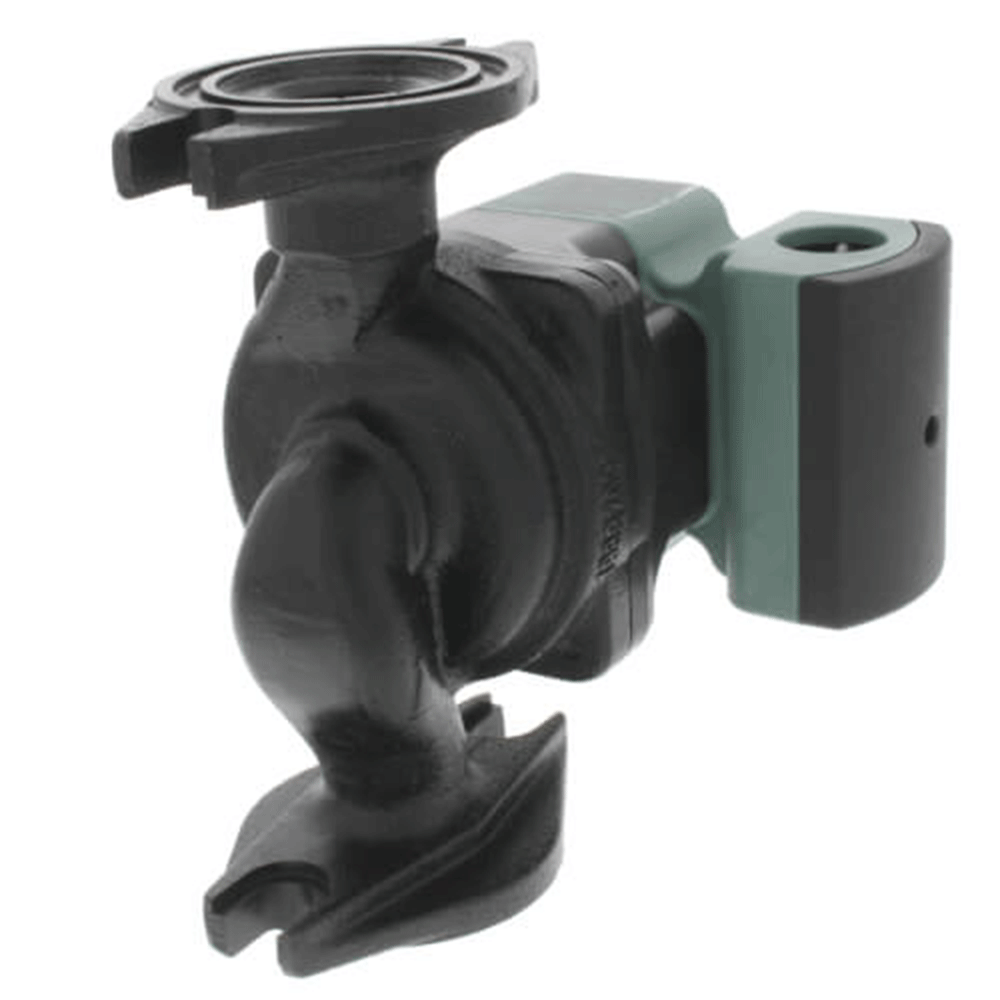

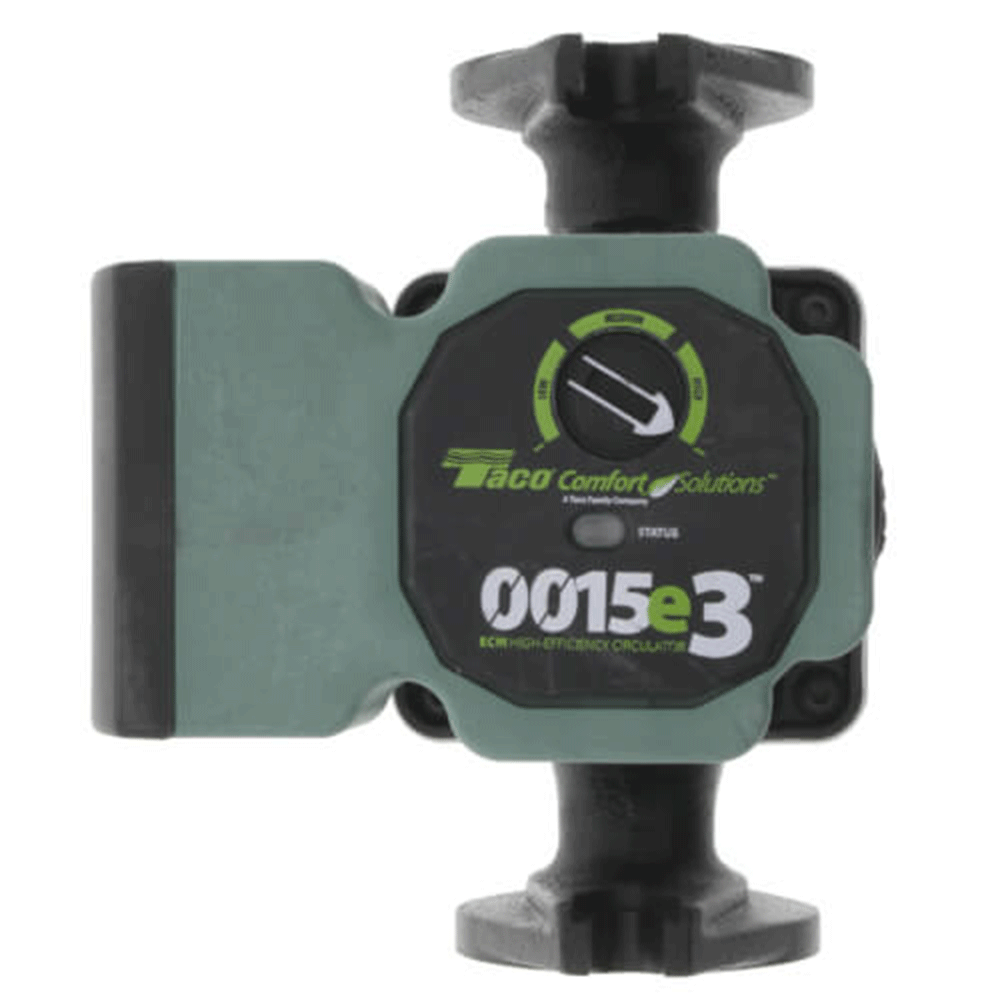

Taco 0015E3-2F2 ECM High-Efficiency Wet Rotor Circulator Pump
The Taco 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Features
3 easy settings: LOW (5 feet head), MEDIUM (10 feet head), HIGH (18 feet head), 16 gpm max flow.
Dual electrical knockouts, 6” stranded wire leads included for easy wiring.
Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation.
Optional 2-way flange model reduces SKU’s and provides universal fit-up to any flange position.
Double insulated. No ground wire required.
Single phase
Whisper quiet operation.
Taco circulator pumps are for indoor use only
Acceptable for use with water or maximum of 50% water/glycol solution
Specifications
Type: Variable Speed Pump
Connection: Standard
Max Flow (GPM): 16
Max Head (Ft): 18
Amperage: 0.54
Material: Cast Iron
Max Pressure: 125 PSI
RPM: 4830
Voltage: 120v
Hertz: 60 Hz
Maximum Water Temp: 230°F
Minimum Water Temp: 36°F
Maximum Operating Power: 44W
