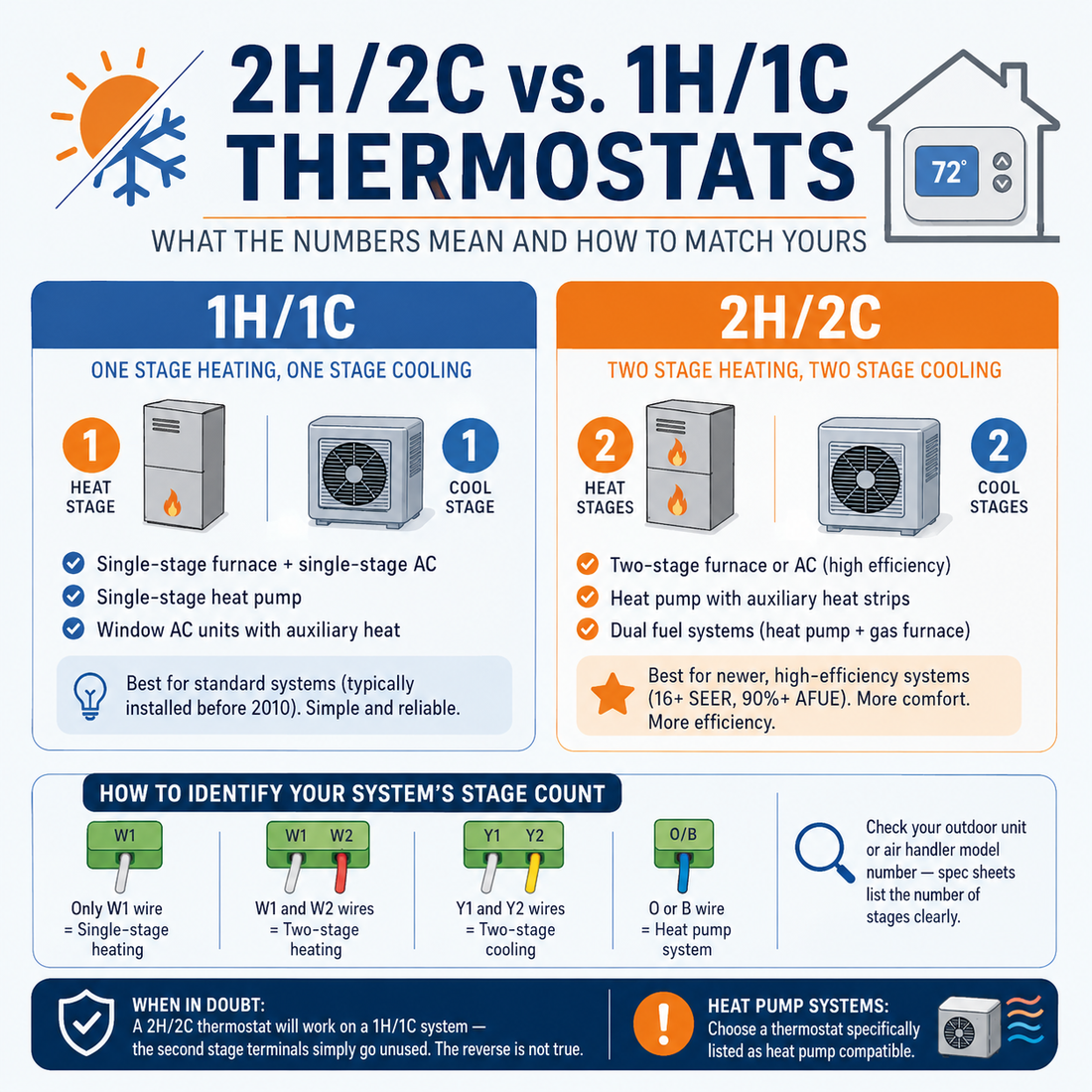

2H/2C vs. 1H/1C Thermostats: What the Numbers Mean and How to Match Yours

Breaking Down the Code

When you see a thermostat listed as '1H/1C' or '2H/2C', it's telling you how many stages of heating (H) and cooling (C) it can control.

A 'stage' corresponds to a distinct call for conditioning. Single-stage equipment runs at full capacity or not at all — simple on/off. Two-stage equipment has a low-capacity setting (first stage) and a high-capacity setting (second stage), which is more efficient and more comfortable.

What 1H/1C Means

1H/1C thermostats control one stage of heating and one stage of cooling. This covers the vast majority of residential HVAC systems:

•        Single-stage gas furnace + single-stage central air conditioner

•        Single-stage heat pump

•        Window AC units with auxiliary heat strip

If your system is a standard residential setup installed before 2010, it's probably 1H/1C. The Honeywell FocusPRO TH5110D1022 is a popular, reliable 1H/1C option.

What 2H/2C Means

2H/2C thermostats control two stages each of heating and cooling. They're needed when your system has:

•        A two-stage furnace or air conditioner (most higher-efficiency equipment is two-stage)

•        A heat pump with auxiliary electric heat strips (the heat strip is the 'second stage')

•        Dual fuel systems — a heat pump paired with a gas furnace

If you have a newer, high-efficiency system (16+ SEER, 90%+ AFUE), there's a good chance it's two-stage. The Honeywell FocusPRO TH5220D1029 is a solid 2H/2C non-programmable option.

How to Identify Your System's Stage Count

The fastest method: look at the wiring on your current thermostat.

•        If you have only one W terminal wire (W1), your heating is single-stage.

•        If you have W1 and W2 wires, your heating is two-stage.

•        If you have Y1 and Y2 wires, your cooling is two-stage.

•        An 'O' or 'B' wire means you have a heat pump.

Alternatively, check the model number of your outdoor unit and air handler on the manufacturer's website — spec sheets list the number of stages clearly.

When in doubt, a 2H/2C thermostat will work on a 1H/1C system — the second stage terminals simply go unused. The reverse is not true.

Heat Pump Systems Need Special Attention

Heat pump thermostats use an O/B terminal to control the reversing valve that switches the system between heating and cooling modes. Standard conventional thermostats don't have this terminal.

If you have a heat pump, always choose a thermostat specifically listed as heat pump compatible. Using a conventional thermostat on a heat pump is one of the most common installation mistakes in the field.
