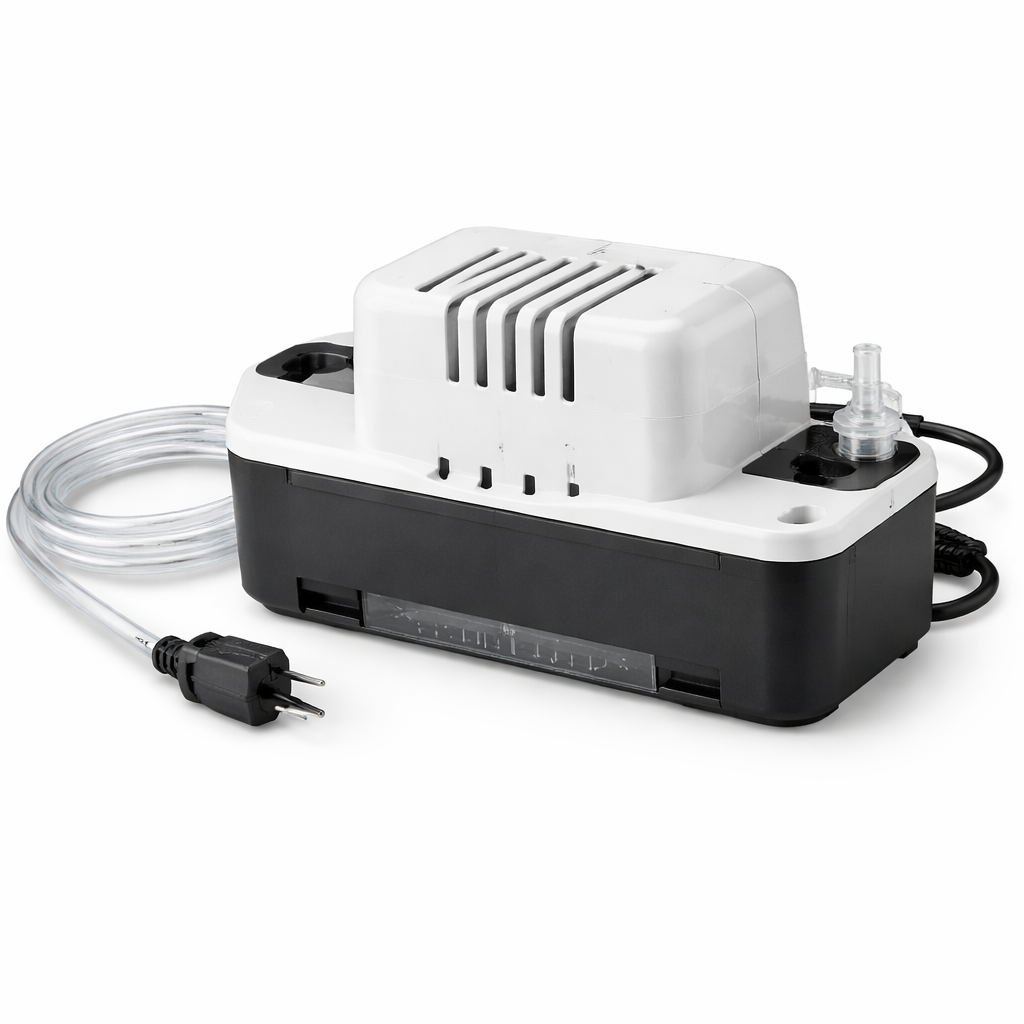

What a Condensate Pump Does

Air conditioners and high-efficiency furnaces produce condensate — water that drips off the evaporator coil or forms in the heat exchanger. In most installations, gravity drains handle this. But when the drain line needs to go up or sideways to reach a suitable drain, a condensate pump moves the water.

When the pump fails, water backs up into the drain pan. Many systems have a safety float switch that shuts the unit down before overflow occurs. Others don't — and that's when you end up with water damage.

Step 1: Is It Actually Getting Power?

The most overlooked cause of a 'dead' condensate pump is no power. Check:

•       Is the pump plugged in? It sounds obvious, but vibration can work plugs loose.

•       Is the outlet working? Test with a phone charger or lamp.

•       Is the HVAC safety float switch tripped? Some systems wire the pump through the float switch circuit — if the switch is open, the pump gets no power.

Step 2: Check the Float

Condensate pumps have a float switch that triggers the pump when water reaches a certain level. If the float is stuck down, the pump never runs. If it's stuck up, it runs constantly.

Manually lift the float with your finger. You should hear the pump motor start. If it does, the float mechanism is the issue — it may be gunked up with algae or debris. Clean the reservoir with a 50/50 bleach and water solution.

If lifting the float does nothing, the motor or capacitor has failed.

Step 3: Check for a Clog

Even if the motor runs, the pump may not move water if the discharge line is blocked. Disconnect the discharge tubing and check for:

•       Algae buildup — Common in humid climates. Flush with diluted bleach.

•       Kinked tubing — Check the entire discharge line path for bends that restrict flow.

•       Debris in the check valve — Most pumps have a check valve that prevents backflow. If it's stuck closed, water can't exit.

If the pump runs but water doesn't move, remove and clean the check valve.

Step 4: Test the Motor

Fill the reservoir manually with water until the float triggers. If the pump hums but doesn't move water, the impeller may be seized or the capacitor may be weak.

A pump that hums and gets warm but doesn't spin is drawing power with no mechanical output — the motor is failing. Replacement is the practical fix at this point, as condensate pump motors aren't serviceable.

When to Just Replace It

Mini condensate pumps like the Blue Diamond MicroBlue and similar units typically cost $30–$80. If you've found motor failure, a seized impeller, or a cracked reservoir, replacement makes more economic sense than repair.

When choosing a replacement, match the lift height requirement (how high the pump needs to push water) and flow rate to your system's condensate output. Most residential mini-split and air handler applications work well with standard 1/30 HP mini pumps.
