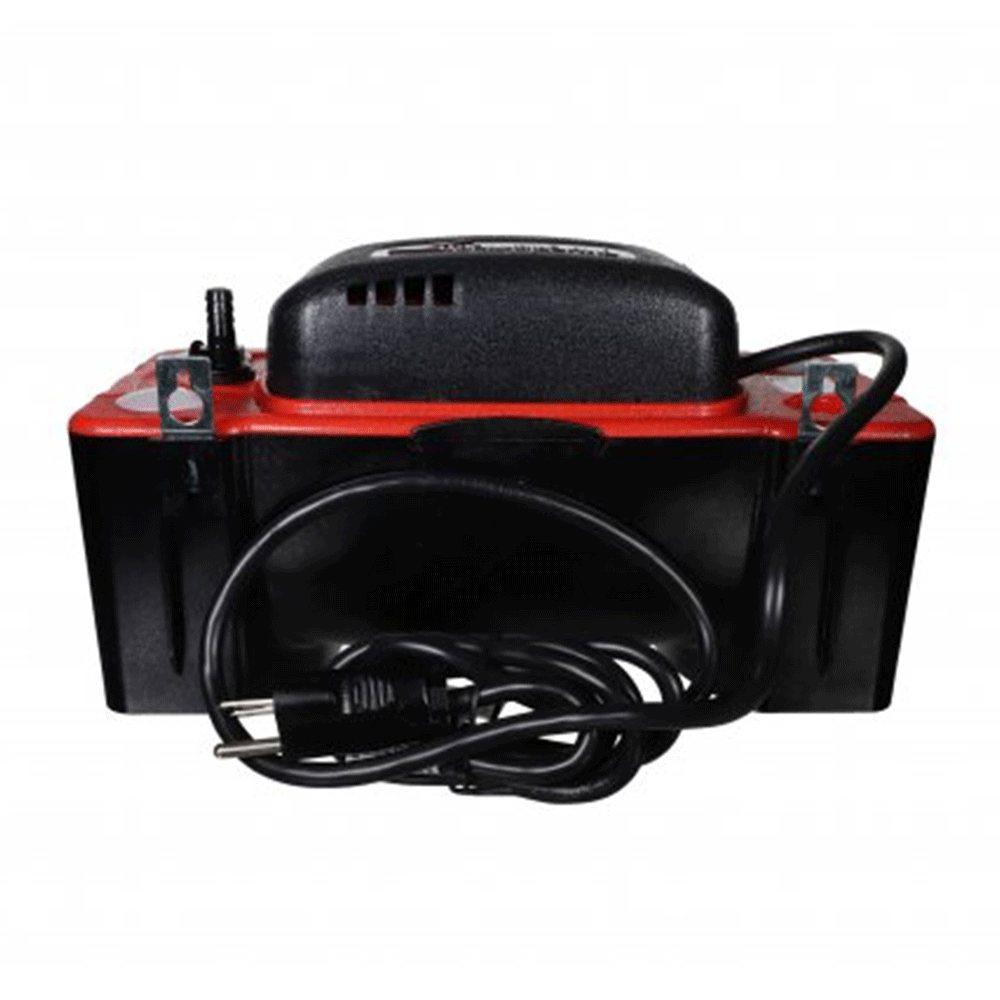

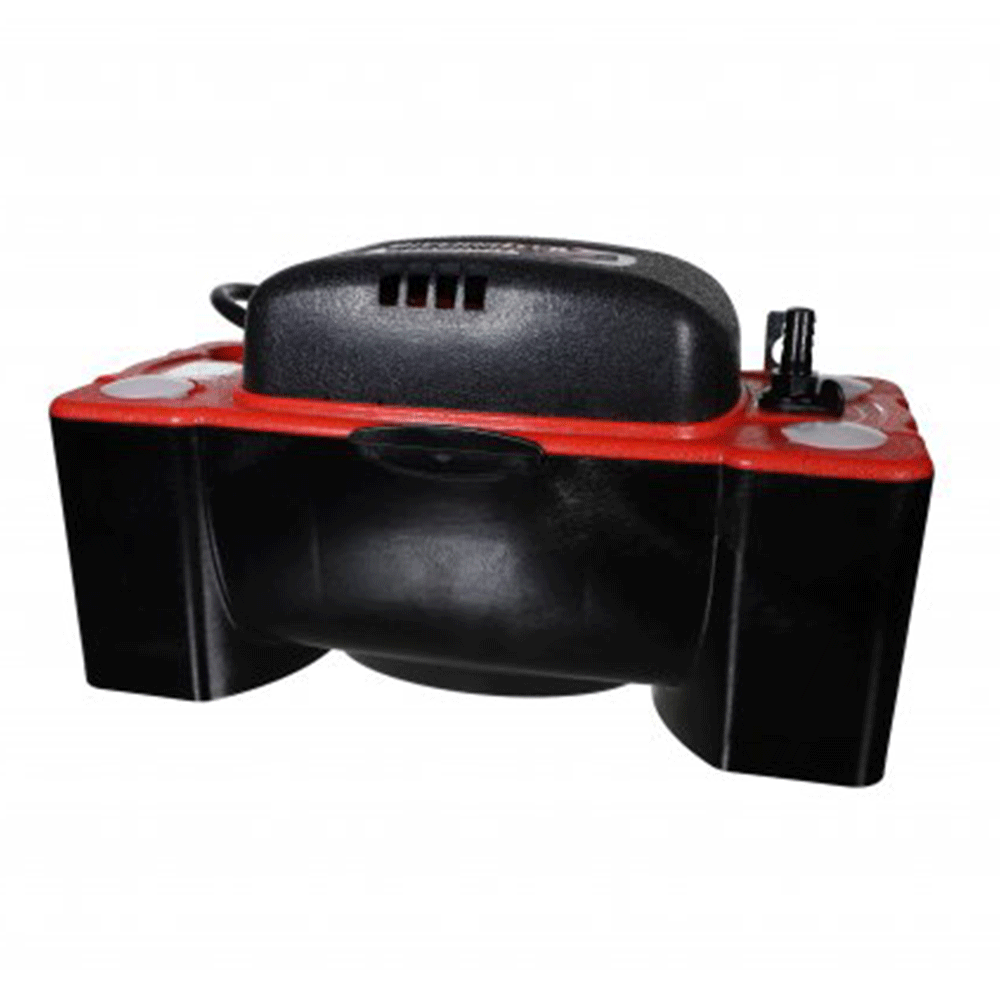

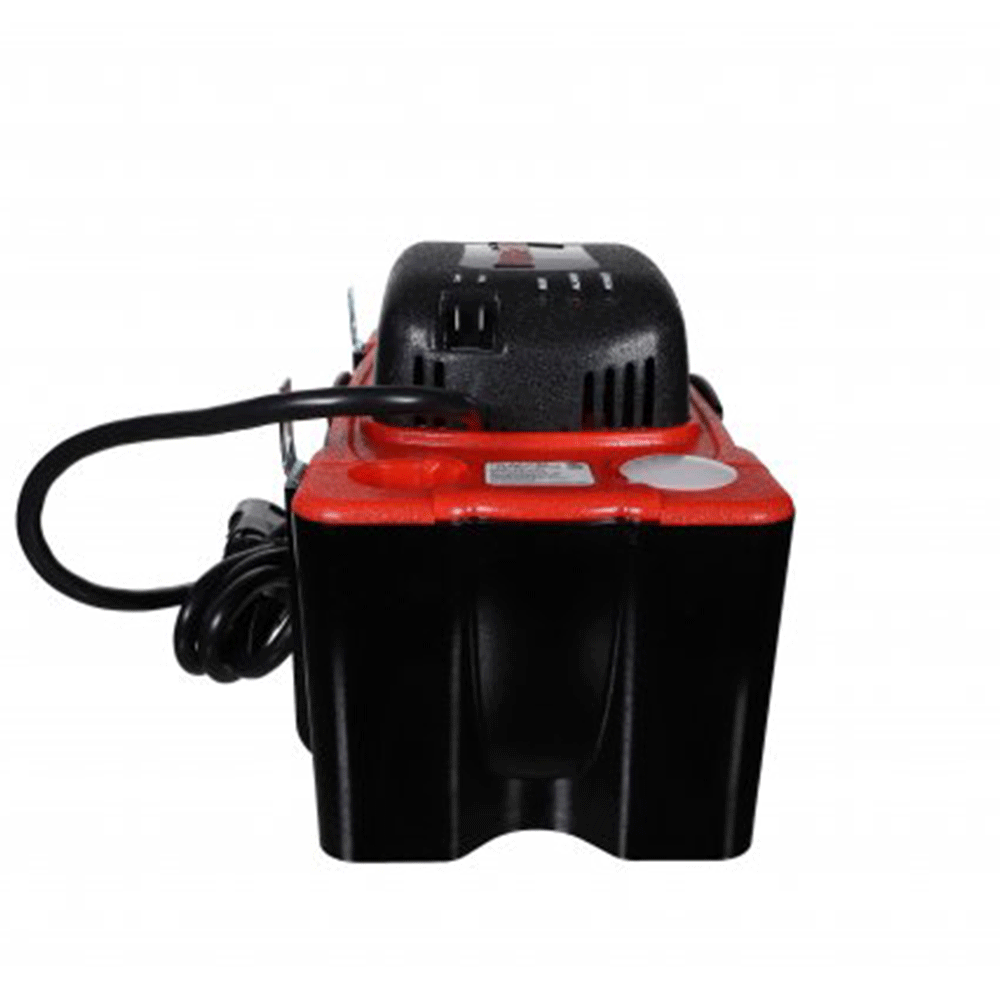

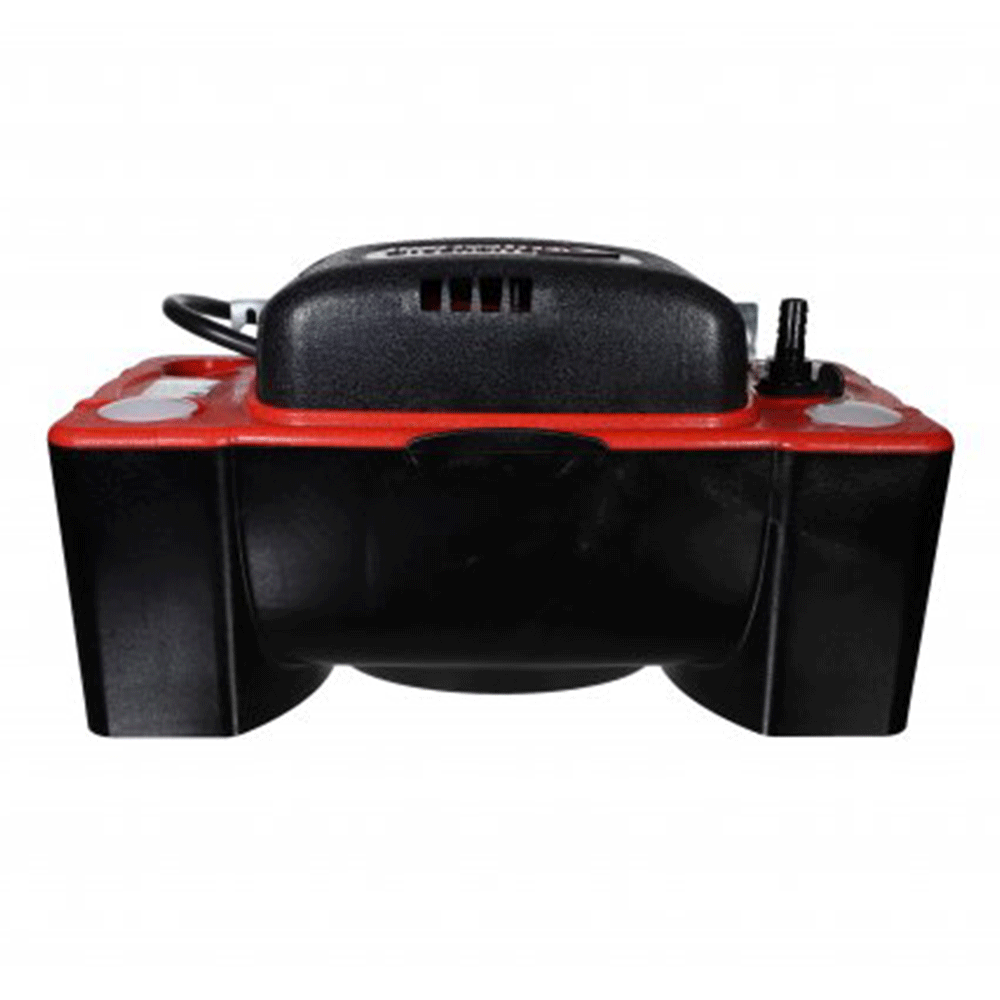

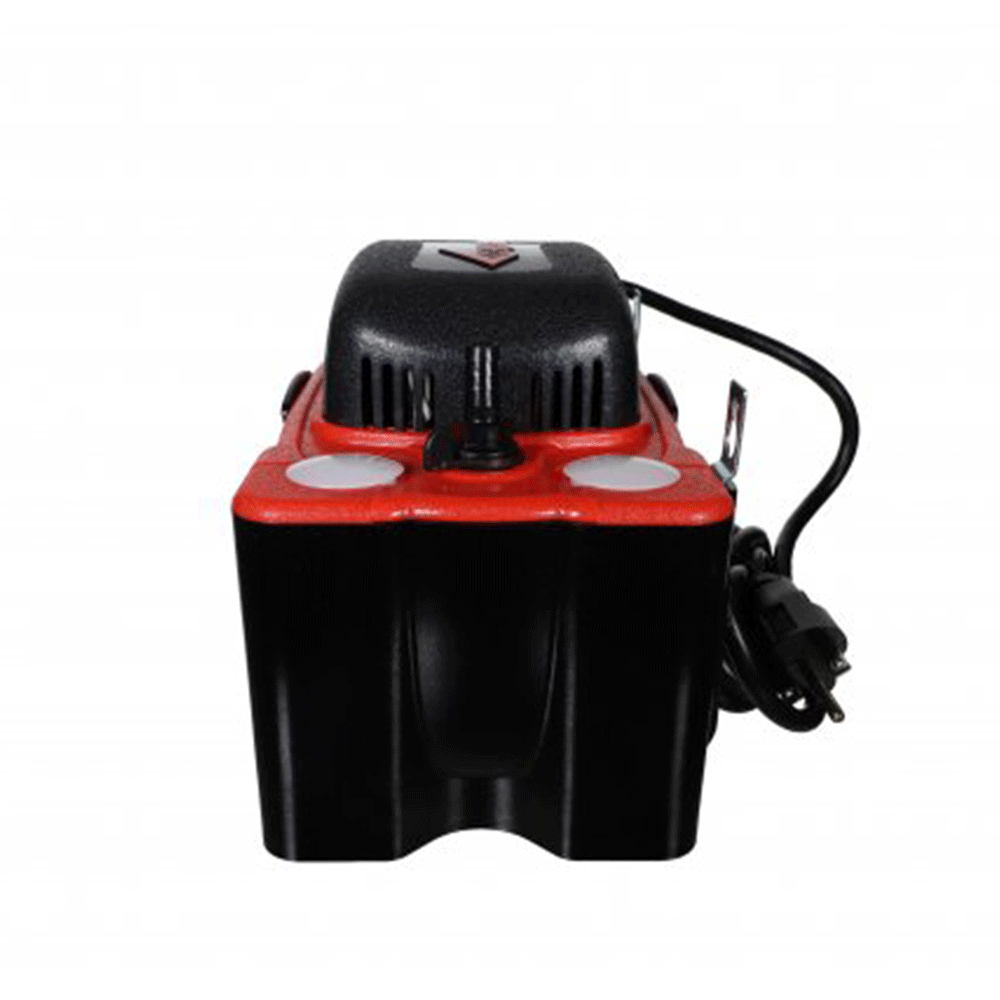

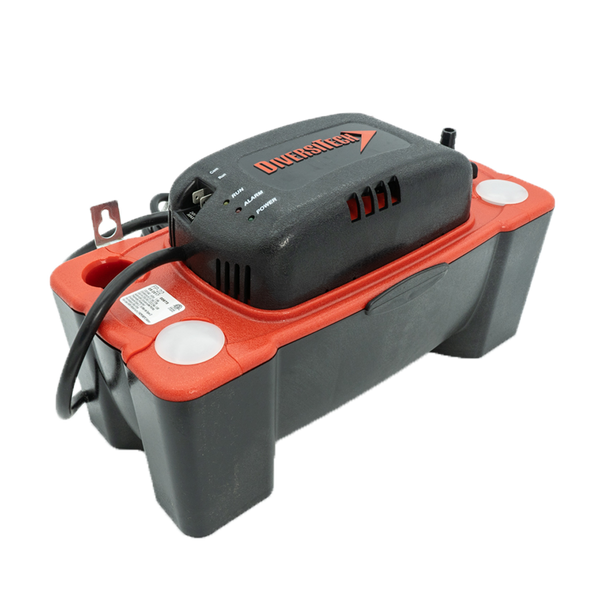

The DiversiTech FP-22 Furnace Condensate Pump is designed to automatically pump condensate produced by high efficiency furnace and humidifiers up to 22’ vertically once the level of condensate in the tank reaches a specific level.
Application
High efficiency furnaces and humidifiers
The DiversiTech FP-22 series pumps beat the industry standard of 20’ lift height by 2 feet and come with innovative features such as: vibration dampening feet, metal hang tabs, four inlet holes with build in “P” traps (and 3 poly covers for the unused inlet holes), LED indicators, float switch and duckbill-style check valve, plug and protector and detailed installation instruction. Two terminals are provided to allow the installer the flexibility to connect air-handler shut-down for flood avoidance. This is an important safety consideration.
Maximum Condensate Temperatures
Continuous duty 165°F
Maximum inlet temperature 190°F
Bit suitable for contact with steam or gases that exceed 190°F
Rated Voltage
120 VAC / 60Hz
Rated Current Draw
1.9 Amps (120 VAC)
Maximum Lift Height:
22’ (Every DiversiTech condensate pump is computer tested to ensure excellent performance at all pumping levels)
Flow Rate @ Zero Head:
FP-22: 126 gallons per hour
