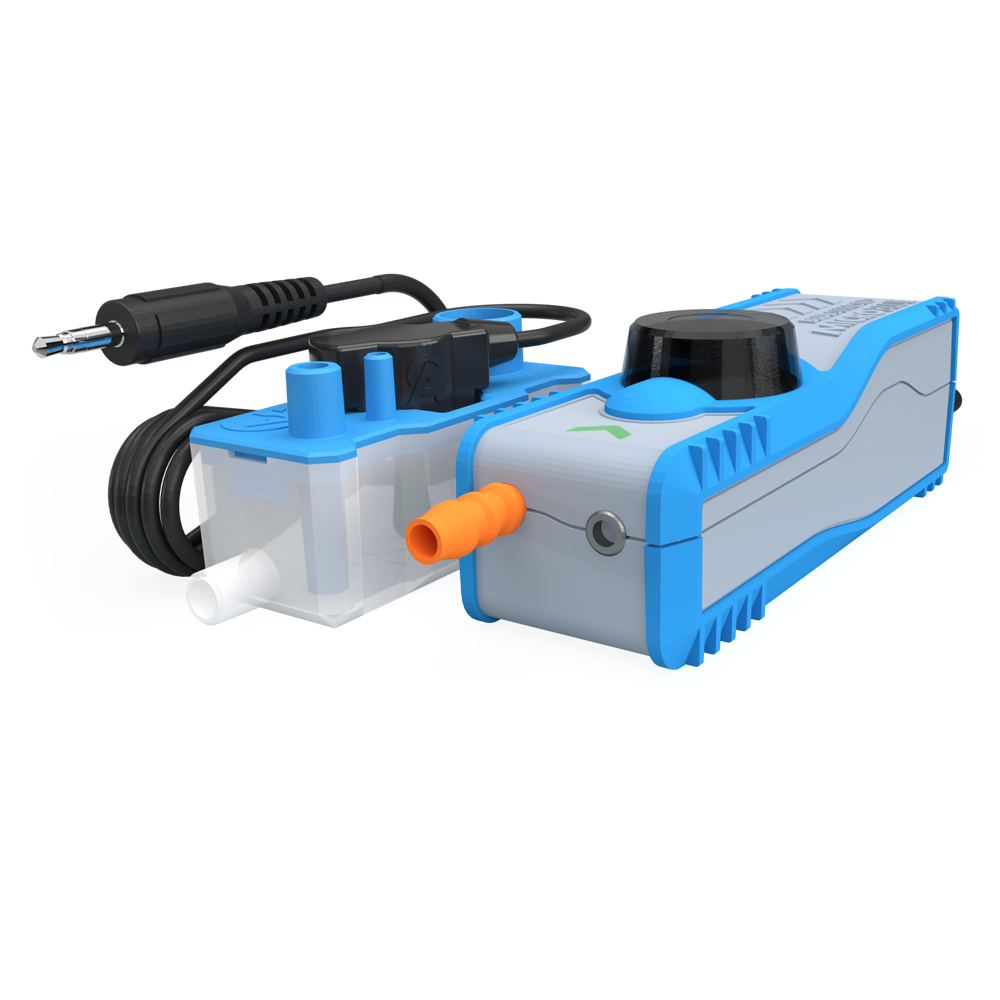

Blue Diamond MicroBlue X86-003 Condensate Removal Pump With Reservoir
| Product Type | Condensate removal pump with reservoir |
| Series | MicroBlue |
| Model Number | X86-003 |
| Brand | Blue Diamond |
| Voltage | 115-230V |
| Frequency | 50/60Hz |
| Current Draw | 0.08-0.05A |
| Power Consumption | 5W |
| Maximum Flow Rate | 1.3 GPH |
| Maximum Head | 16 ft |
| Maximum Lift | 6 ft |
| Sound Level | 17 dB(A) |
| Maximum Unit Size | 18,000 BTU |
| Inlet/Outlet Size | 1/4 in barbed |
| IP Rating | IPX4 |
| Pump Dimensions | 5.9" x 1.46" x 1.57" |
| Pump Weight | 8 oz |
| Alarm Relay | Max 5A 240V AC / 5A 30V DC |
| Warranty | 3-year limited warranty |
| Application | Mini-split air conditioning condensate removal |
Please refer to the product description or manufacturer documentation for included items.
The Blue Diamond MicroBlue X86-003 Condensate Pump is a compact and ultra-quiet condensate removal solution designed for mini-split air conditioning systems and ductless HVAC units. Engineered with Blue Diamond’s rotary diaphragm pump technology, the MicroBlue delivers reliable condensate removal while maintaining extremely low noise levels—making it ideal for residential and commercial installations where quiet operation is essential.
The X86-003 version includes a reservoir and sensor assembly, allowing the pump to automatically detect condensate buildup and efficiently remove water from mini-split evaporators. With its small footprint and flexible installation options, the MicroBlue pump can be mounted in tight spaces such as line set covers, ceiling cavities, or wall units.
Designed for long-term performance, the MicroBlue pump operates on low power consumption while providing dependable drainage for ductless air conditioning systems up to 18,000 BTU. HVAC contractors appreciate its simple installation, quiet operation, and proven reliability in mini-split applications.
Key Features
• Ultra-Quiet Operation – Operates at extremely low sound levels for residential and office environments
• Compact Design – Small pump size allows installation inside line-set covers or tight HVAC spaces
• Automatic Condensate Detection – Reservoir and sensor assembly activates pump when condensate builds
• Energy Efficient Performance – Low power consumption design reduces electrical load
• Mini-Split System Compatible – Designed for ductless air conditioners up to 18,000 BTU
