1030

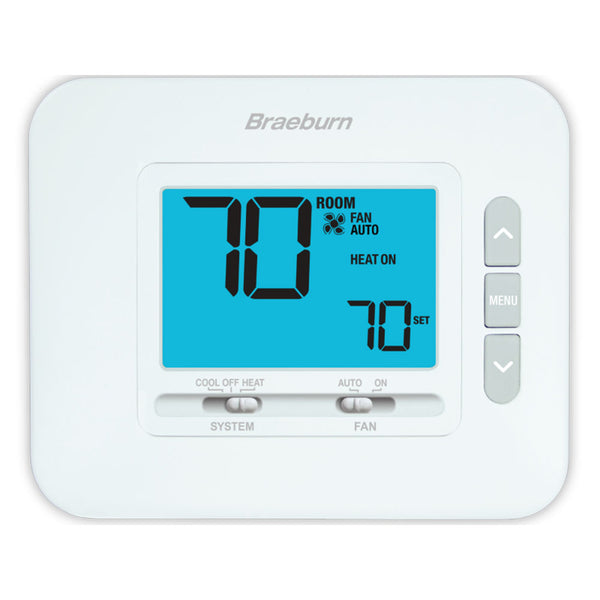

Braeburn 1030 1H/1C Non-Programmable Thermostat with 4.4in Display

54 items left
Braeburn 1030 - 1 Heat / 1 Cool Non Programmable Thermostat The Braeburn 1030 non-programmable thermostat is 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit will retain all user, installer settings and setpoints. The thermostat is compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat has a bright blue backlight display and separate sub-base. Temperature control range is between 45 and 90 F (7 and 32 C), accuracy of +/- 1 F (+/- .5 C) and operating humidity range between 5% and 95% relative humidity. The thermostat includes separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor and installer lock mode   Features Non-Programmable Large 4.4 Sq. In. Display Bright Blue Backlight SmartLimit Temperature Limits Hardwire or Battery Powered Installer Lock Mode Filter Check Monitor Optional Celsius Display Separate O and B Terminals Adjustable Temperature Differential Compatible with 2-Wire Hydronic Zone Systems Specifications Dimensions: 4.25” x 5.12” x 1” Electric Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals) AC Power: 18-30 Volt AC DC Power: 3.0 Volts DC (2 “AA” Alkaline batteries included) Compatibility: Single stage gas, oil, electric or hydronic systems Single stage heat pumps 250mv – 750mv millivolt heating systems Control Range: 45 to 90 F (7 to 32 C) Display Range: 35 to 99 F (1.5 to 37 C) Accuracy: +/- 1 F (+/- .5 C) Temperature Differential: 0.5, 1, or 2 F (0.2, 0.5, or 1 C) Storage Temperature: 14 to 140F (-10 to 60C) Operating Humidity: 5% to 95% Relative Humidity Terminations: Rc, Rh, O, B, Y1, W1, G, C Replaces Honeywell: TH1110, TH3110 Emerson: 1F86-0244, 1F83C-11NP Pro1: T601-2, T701
