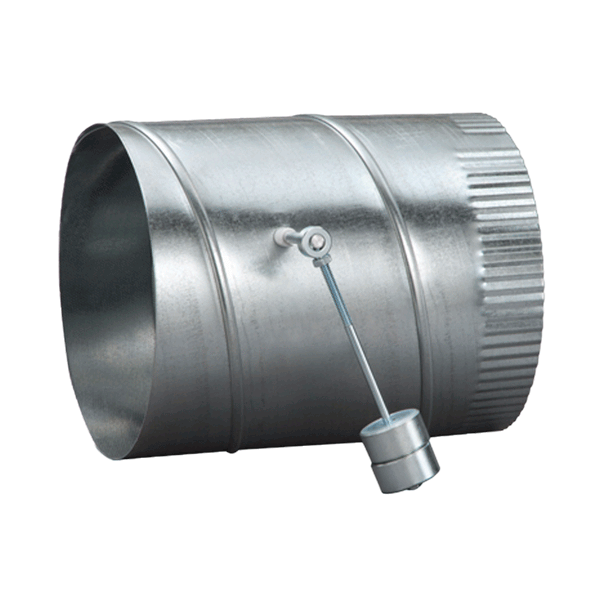

Braeburn 119106 Round Static Pressure Bypass Damper for HVAC Zoning Systems, 6″x12"
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Braeburn 119106 Static Pressure Bypass Damper is designed to maintain proper static pressure within zoned HVAC systems by automatically relieving excess air pressure at the supply plenum. This mechanical bypass damper operates without wiring, sensors, or electrical power, making it a reliable and economical alternative to motorized bypass dampers.
Using a field-adjustable weighted arm, the damper automatically regulates airflow as zone dampers open and close, helping reduce system noise, prevent duct stress, and protect HVAC equipment from excessive static pressure buildup.
Constructed from heavy-gauge galvanized steel for durability and long service life, the 119106 installs easily in round duct systems and can be mounted vertically or horizontally for flexible installation.
Specifications:
Model Number: 119106
Product Type: Static Pressure Bypass Damper
Damper Diameter: 6 Inches
Damper Length: 12 Inches
Application: HVAC Zoning Systems
Operation Type: Mechanical Weighted Control
Power Requirement: None
Wiring Required: No
Control Method: Field Adjustable Sliding Weight
Construction Material: Heavy Gauge Galvanized Steel
Mounting Orientation: Vertical or Horizontal
Airflow Direction: Left or Right
Position Indicator: Airflow Direction Indicator Included
Installation Type: Inline Round Duct Mount
System Use: Residential or Light Commercial HVAC
