140221

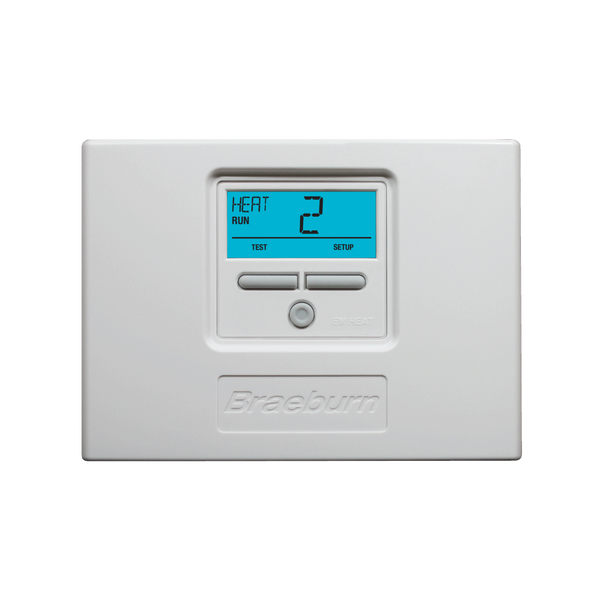

Braeburn 140221 2-Zone Control Zoning Panel 2 Heat 1 Cool
The Braeburn 140221 is a 2-Zone Control Panel for Conventional, Heat Pump or Dual Fuel Applications (2H / 1C). It features a compact 8”W x 6”H housing and a large 3 sq. in. backlit display for set-up, checkout and operation.
Features:
Controls up to 2 heating and 1 cooling stage
Compatible with electric, gas, oil and heat pump equipment–including dual fuel
Can be used with virtually all low-voltage thermostats and dampers from other manufacturers
Large 3 sq. in. display shows system status
Dual fuel operation with Braeburn outdoor sensor
LED’s show all calls at a glance
Push-in terminals for easy wiring–no screwdriver needed
Flexible staging controlled by panel or thermostat
Push button set-up without dip switches
