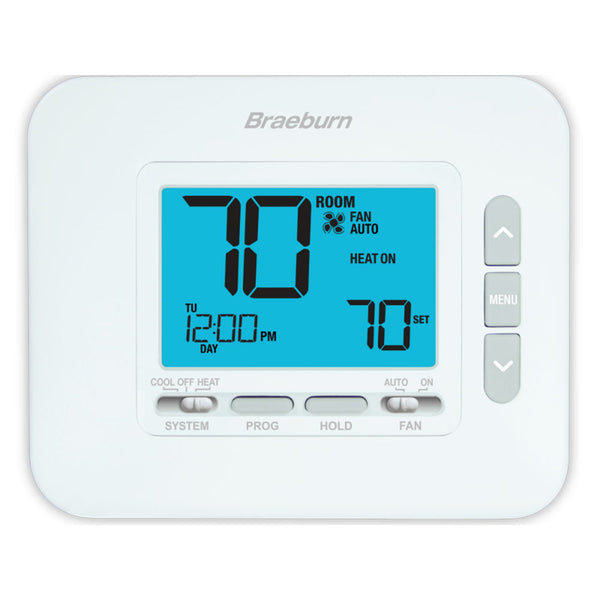

Braeburn 2030 1H/1C Programmable Thermostat with 4.4in Display
Braeburn 2030 1 Heat 1 Cool Universal Programmable Thermostat
The Braeburn 2030 is a universal programmable thermostat that is 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit will retain all user, installer and program settings. The thermostat is compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat has a bright blue backlight display and a separate sub-base. Temperature control range is between 45 and 90 F (7 and 32 C), accuracy of +/- 1 F (+/- .5 C) and operating humidity range between 5% and 95% relative humidity. The thermostat includes separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor, adaptive recovery mode (ARM™) and installer lock mode.
Features
7 Day, 5-2 Day or Non-Programmable
Large 4.4 Sq. In. Display
Bright Blue Backlight
SmartLimit Temperature Limits
SpeedSet Programming Mode
Hardwire or Battery Powered
Installer Lock Mode
Filter Check Monitor
Optional Celsius Display
Separate O and B Terminals
Adaptive Recovery Mode (ARM )
Adjustable Temperature Differential
Compatible with 2-Wire Hydronic Zone Systems
Specifications
Dimensions: 4.25” x 5.12” x 1”
Electric Rating:
24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals)
AC Power: 18-30 Volt AC
DC Power: 3.0 Volts DC (2 “AA” Alkaline batteries included)
Compatibility:
Single stage gas, oil, electric or hydronic systems
Single stage heat pumps
250mv – 750mv millivolt heating systems
Control Range: 45 to 90 F (7 to 32 C)
Display Range: 35 to 99 F (1.5 to 37 C)
Accuracy: +/- 1 F (+/- .5 C)
Temperature
Differential: 0.5, 1, or 2 F (0.2, 0.5, or 1 C)
Storage Temperature: 14 to 140 F (-10 to 60 C)
Operating Humidity: 5% to 95% Relative Humidity
Terminations: Rc, Rh, O, B, Y1, W1, G, C
Replaces
Honeywell: TH4110, TH6110
Emerson: 1F70-361, 1F80-224, 1F80-261
Pro1: T605-2, T705
Accessories
2920 Vertical J-Box Adapter Wall Plate
2950 Universal Wall Plate (6.5” x 6.5” x .125”)
5970 Universal Thermostat Guard
