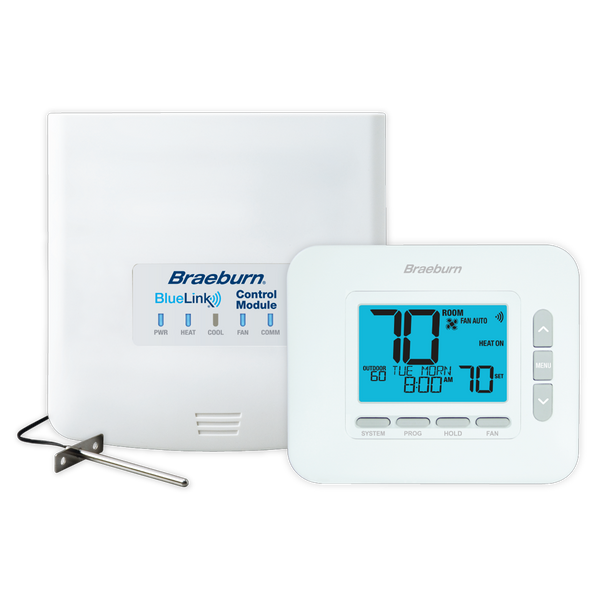

Braeburn 8500 Universal 3H/2C Wireless Thermostat Kit, Includes Control Module & Air Sensor
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Braeburn 8500 BlueLink® Wireless Thermostat is a universal HVAC control solution designed for installations where running thermostat wire is difficult or impractical. Using wireless communication between the thermostat and equipment control module, the system allows flexible thermostat placement without rewiring.
Designed for residential, commercial, and retrofit applications, the 8500 supports multi-stage conventional and heat pump systems while offering flexible programming and professional installer features. The large backlit display and commercial-grade controls provide reliable performance for both contractors and facility applications.
The wireless design makes it ideal for relocating thermostats, correcting damaged wiring runs, or installing controls in finished spaces where new wiring is not accessible.
Specifications:
Model Number: 8500
Series: BlueLink Wireless
System Compatibility: Conventional and Heat Pump Systems
Stages Supported: Up to 3 Heat / 2 Cool
Thermostat Type: Programmable / Selectable Non-Programmable
Programming Options: 7-Day, 5-2 Day, or Non-Programmable
Communication Type: Wireless Thermostat with Control Module
Display Size: 4.4 Sq. In.
Backlight: Bright Blue
Power Method: Battery or Hardwired
Voltage Rating: 24 VAC
Auto Changeover: Yes
Commercial Mode: Yes
Adjustable Temperature Limits: Yes
Keypad Lockout: Yes
Remote Sensor Compatibility: Wired or Wireless Sensors
Programmable Fan Control: Yes
Humidity Control: No
Terminal Designations: Rc, Rh, W1/E/W3, W2, Y1, Y2, G, O/B/V3, C, L, S1, S2, P1, P2
Temperature Control Range: 45°F – 90°F
Mounting: Wall Mount
