MBH4P5EZ

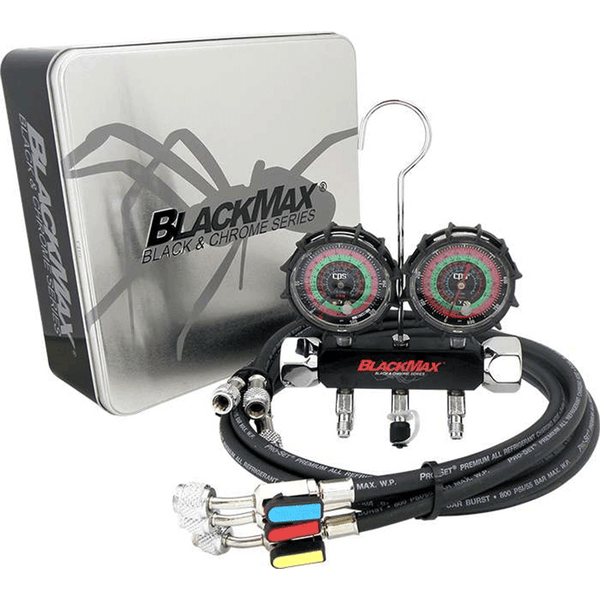

CPS Blackmax MBH4P5EZ Mechanical Manifold Gauge Set with 2 Valves
The CPS MBH4P5EZ is a BlackMax® Black & Chrome series 2 valve anodized aluminum block body with ¼” SAE 45° fittings, Triple Seal™ piston valves, easy-to-read 3 â…›” (80mm) Class 1.0 accuracy gauges, protective gauge boots, extra access port in the center with Schrader® valve, premium 5ft Pro-Set® Black & Chrome hoses with 45° anti-blowback valves on end and hanging hook.
Features
Precision machined aircraft aluminum block bodies
Extremely accurate Class 1.0 3 1/8" metal cased gauges with protective boot
Easy-to-read R-134a / 22 / 404A / 410A refrigerant scales
Non-permeating B & C hoses with 800 PSI working pressure, 4,000 PSI burst
Available in Vortech ® Deep Vacuum or Triple-Seal ™ valve configurations
Proprietary Triple-Sealâ„¢ Valve System
Three Super Neoprene o-ring design
Back seating o-ring seals valve nut when fully open
Valve stem retracts fully to provide maximum flow
Mirror-like port fi nish for smooth accurate metering
Proprietary Vortech ® Deep Vacuum Valve System
Certified 15 micron vacuum rating
Precision machined virgin Teflon core
Full, unrestricted refrigerant flow
Light touch valve operation
