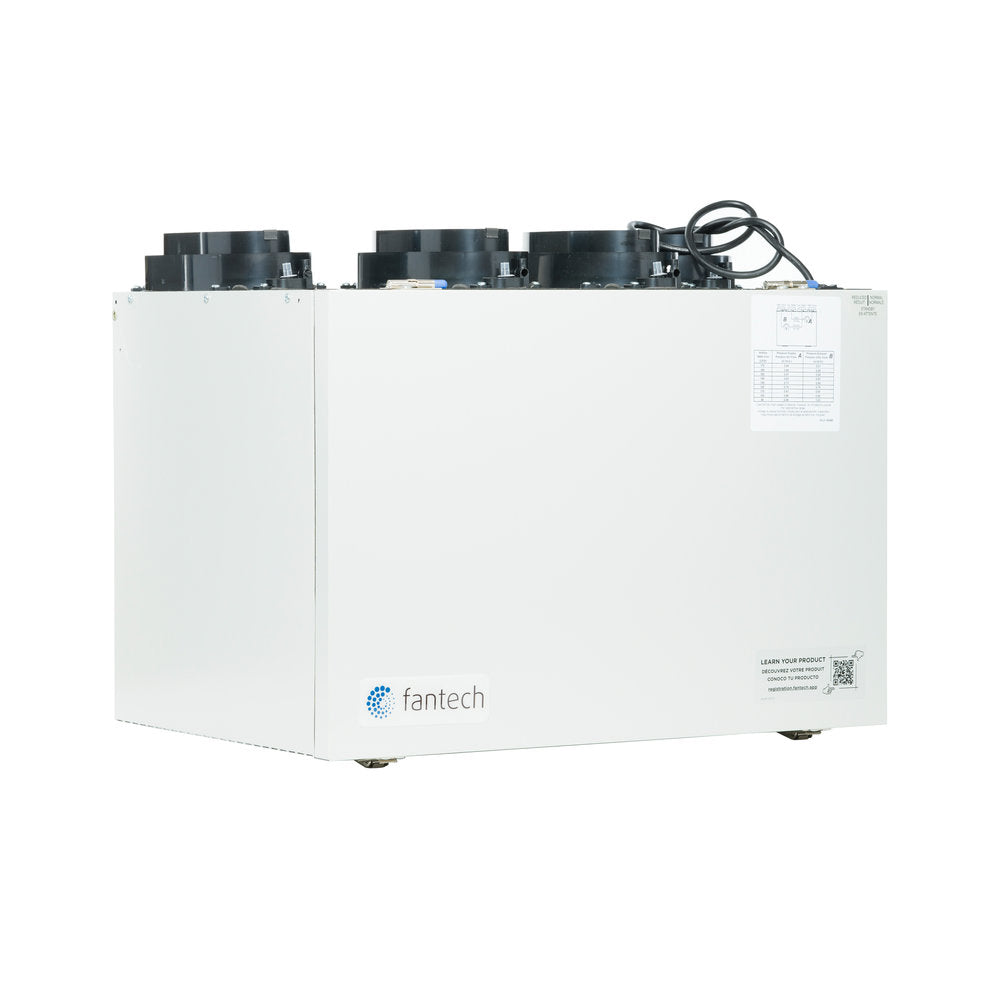

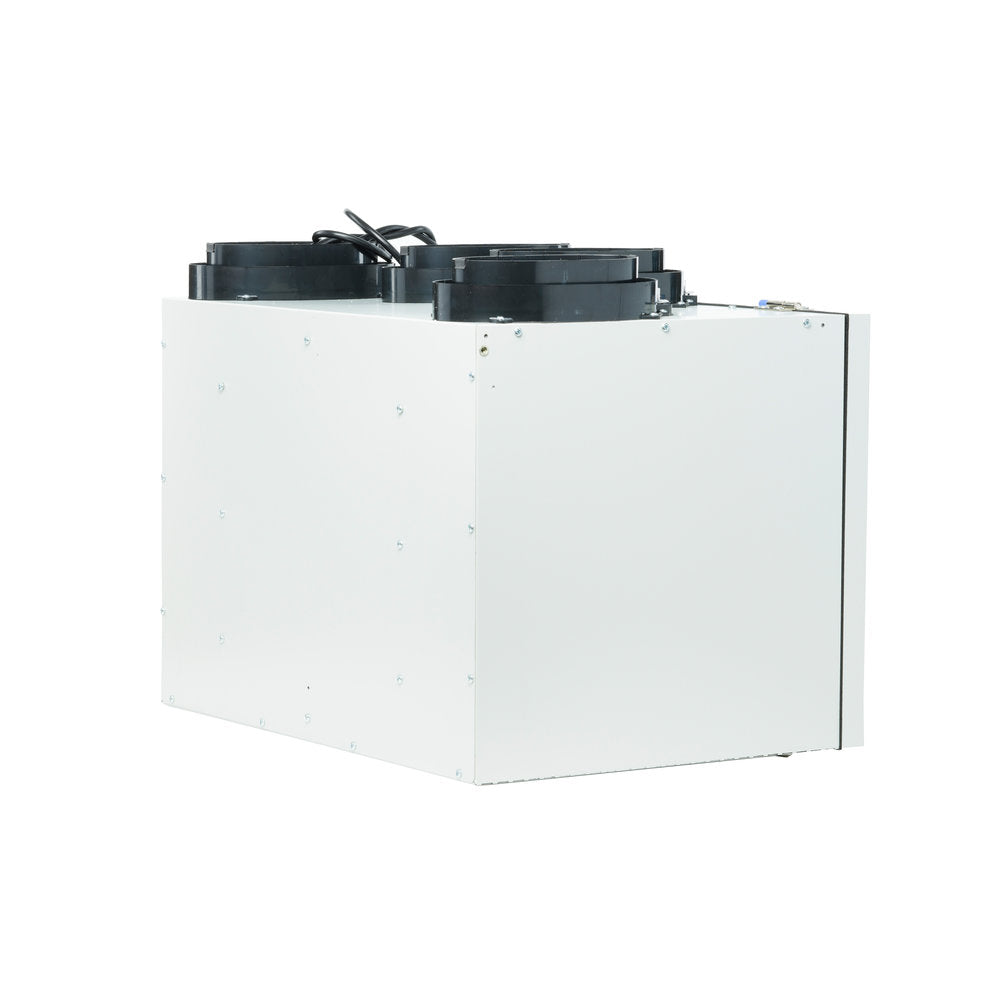

Fantech VHR-150 Heat Recovery Ventilator and 6in Top Ports, 159 CFM

3 items left

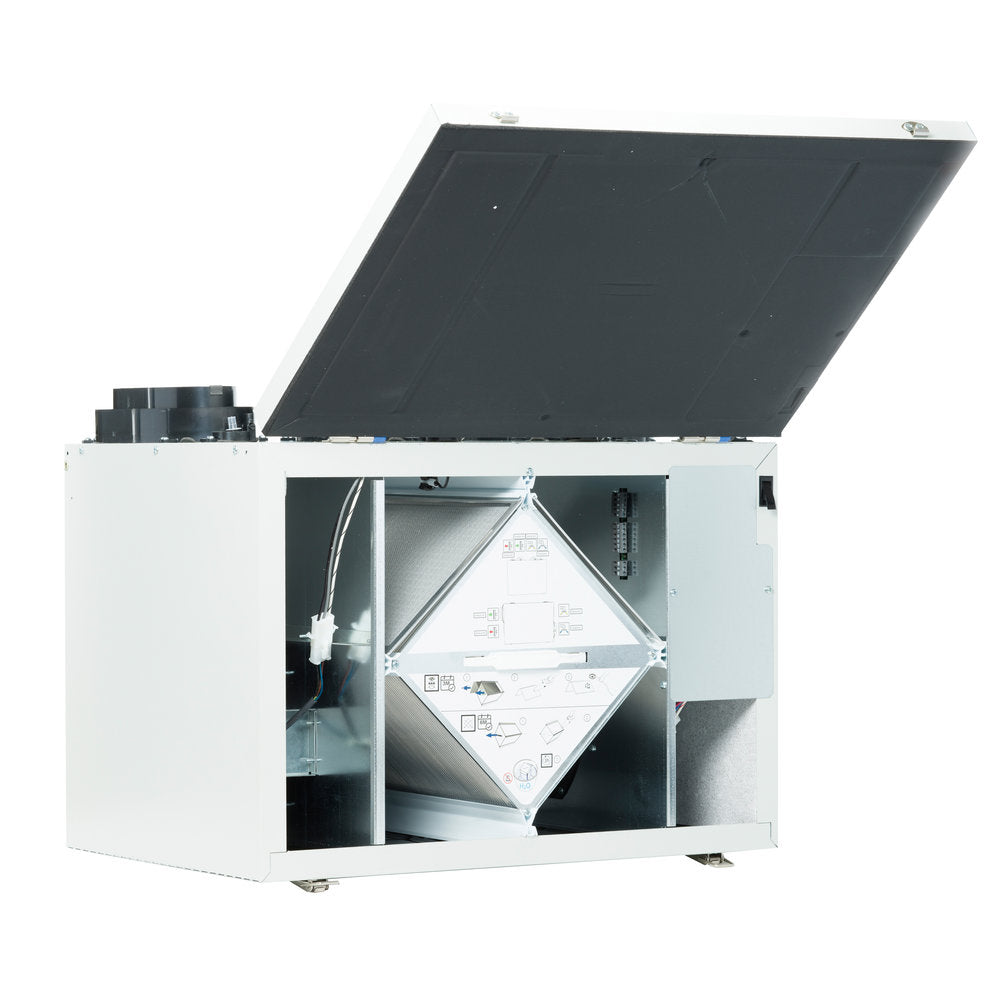

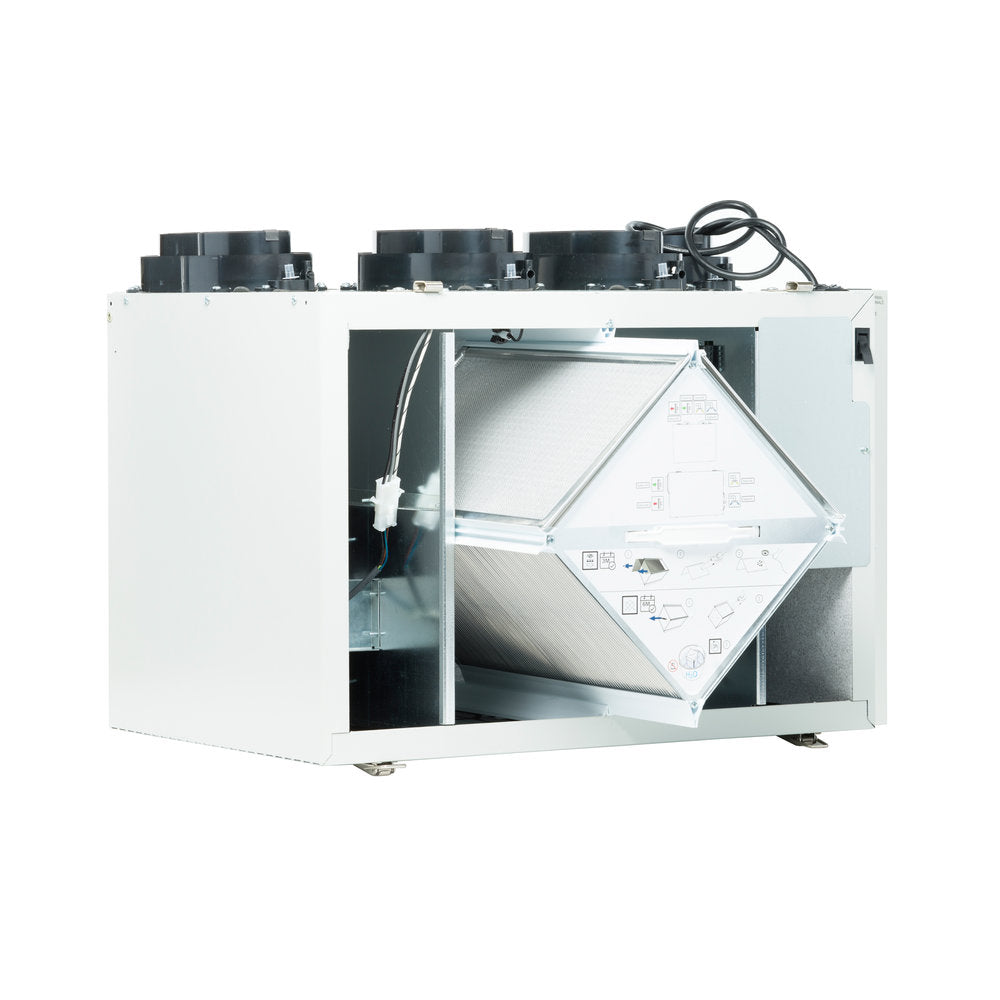

Features Airflow up to 159 cfm @ 0.4" PS serves 2 to 5 bedroom homes External dry contacts for quick connection of remote controls Compatible with Fantech's low-voltage controls Three speed ventilation control Washable electrostatic filters Easy access service door Application Fantech's most popular HRV for home projects, the VHR 150 is designed for higher static pressure applications. How it works The unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system. The VHR 150 is equipped with automatic defrost mechanisms so you can use your HRV all year long. Defrost cycle A preset defrost sequence is activated at an outdoor air temperature of 23°F and lower. During the defrost sequence, the supply blower shuts down & the exhaust blower switches to high speed to maximize the effectiveness of the defrost strategy. The unit then returns to normal operation, and continues the cycle. Product Specifications Voltage (nominal): 120 V Frequency: 60 Hz Phase(s): 1~ Input power: 156 W Input current: 1.2 A Air flow: 159 cfm Static pressure: 0.4 in.wg
