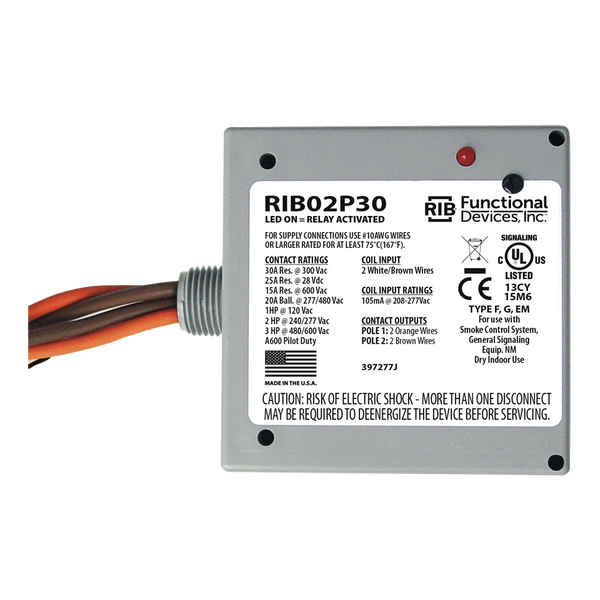

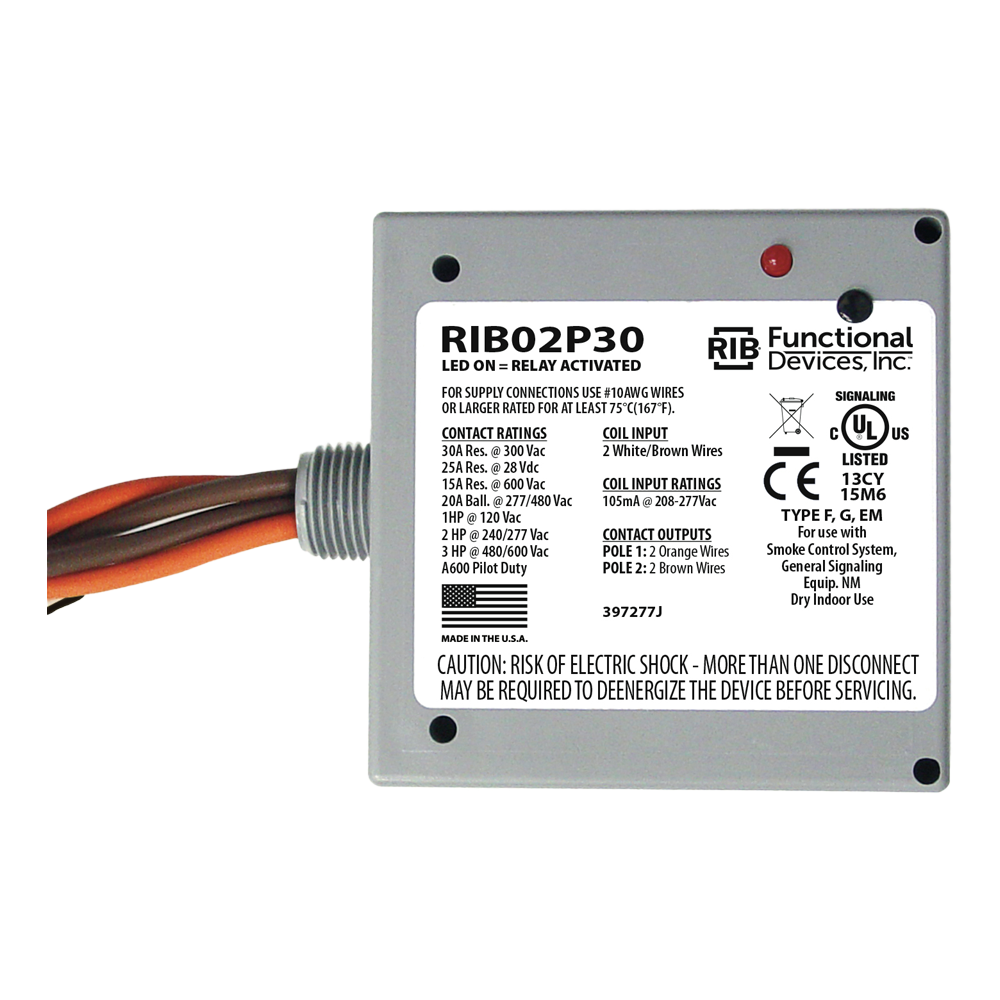

Functional Devices RIB02P30 30 Amp Power Relay, 208-277 Vac Coil, NEMA 1 Housing
Functional Devices RIB02P30 30 Amp Power Relay, 208-277 Vac Coil, NEMA 1 Housing
Regular price
$72.02
Regular price
Sale price
$72.02
Unit price
/
per
Out of stock
The RIB02P30 is equipped with two SPDT relays that can handle up to 30 Amps each, providing you with the flexibility to control multiple electrical loads simultaneously. With its robust construction and high-quality components, this device ensures long-lasting performance and exceptional durability in demanding environments. The Coil Current is 105 mA @ 208-277 Vac. The Coil Voltage Input is 208-277 Vac ; 50-60 Hz - Drop Out = 60 and Vac Pull In = 160 Vac.
Features:
# Relays & Contact Type: One (1) DPST Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Relay Status: LED On = Activated
Dimensions: 4.00Ë x 4.00Ë x 1.80Ë with .50Ë NPT Nipple
Wires: 16Ë, 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL || California State Fire Marshal, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: Yes
Override Switch: No
Contact Ratings:
30 Amp Resistive @ 300 Vac
25 Amp Resistive @ 28 Vdc
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
15 Amp Resistive @ 600 Vac
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1110 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
Heavy Pilot Duty @ 600 Vac
3 HP @ 480-600 Vac
2 HP @ 240-277 Vac
1 HP @ 120 Vac
