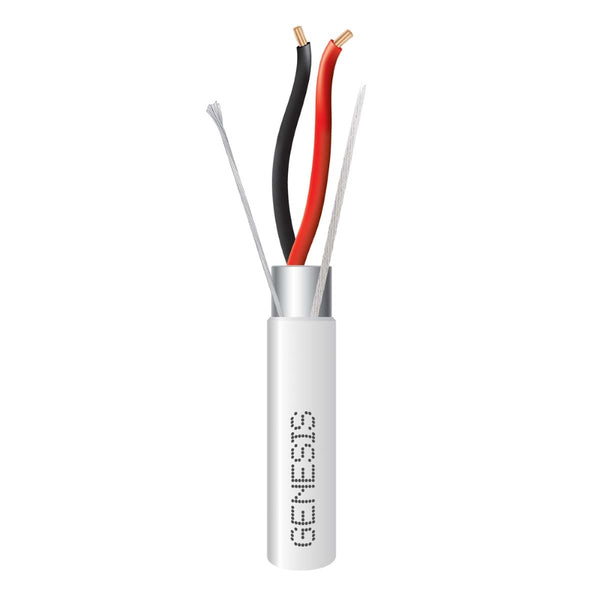

Genesis TSP-16/2 (32211112) Stranded, Shielded, Plenum-Rated Wire, 1000ft

Plenum Rated Security & Control Cable Part Number: 3221 16 AWG 2 Stranded Conductors Shielded Ratings CMP, CL3P, FPLP, FT6 Approvals ETL Listed Construction Conductor 16 AWG 26 Strand Bare Copper Conductor Count 2 Insulation Plenum PVC (0.007" nom.) Insulation Colors Black, Red Lay Length 2.75" nom. Shielding Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain Rip Cord Yes Jacket Plenum PVC (0.015 " nom.) Overall Diameter 0.180" nom. Print Legend GENESIS P/N 3221 2C 16AWG SHIELDED 3038058 (ETL) CL3P OR FPLP FT6 75C (RoHS) W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9 Properties Operating Voltage 300 Volts max. DC Resistance 4.19 Ohms/1000' at 20°C Capacitance 65.9 pF/ft. nom. Impedance 28 Ohms nom. Temperature -20°C to 75°C Flame Rating NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6) RoHS Compliant Yes Country of Origin USA
