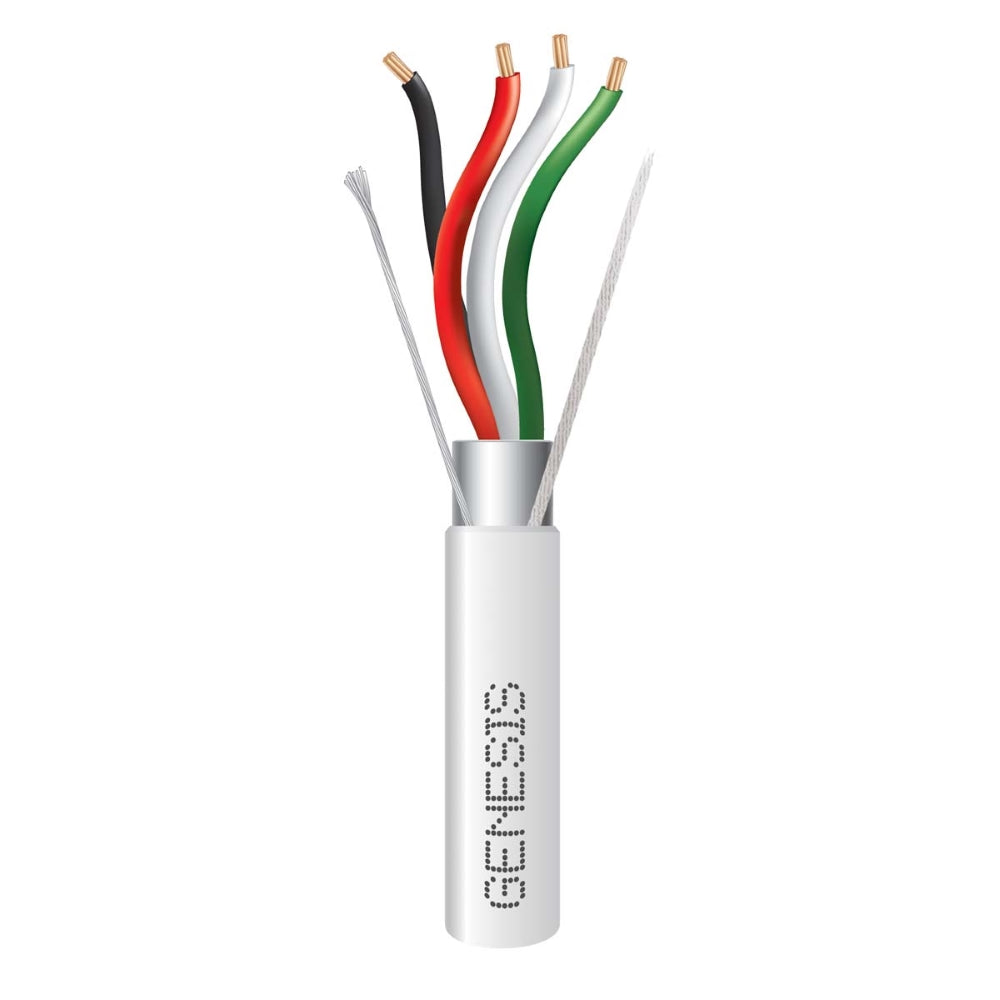

Genesis TSP-18/4 (32152112) Stranded, Shielded, Plenum-Rated Wire, 1000ft
$326.22
Only 3 left — Order soon
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Plenum Rated Security & Control Cable
Part Number: 3215
18 AWG 4 Stranded Conductors Shielded
Ratings CMP, CL3P, FPLP, FT6
Approvals ETL Listed
Construction
Conductor 18 AWG 19 Strand Bare Copper
Conductor Count 4
Insulation Plenum PVC (0.007" nom.)
Insulation Colors Black, Red
Lay Length 3.00" nom.
Shielding Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain
Rip Cord Yes
Jacket Plenum PVC (0.182 " nom.)
Overall Diameter 0.180" nom.
Print Legend GENESIS P/N 3215 4C 18AWG SHIELDED 3038058 (ETL) CL3P OR FPLP FT6 75C (RoHS) W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Operating Voltage 300 Volts max.
DC Resistance 6.66 Ohms/1000' at 20°C
Capacitance 50.8 pF/ft. nom.
Impedance 36 Ohms nom.
Temperature -20°C to 75°C
Flame Rating NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
RoHS Compliant Yes
Country of Origin USA
