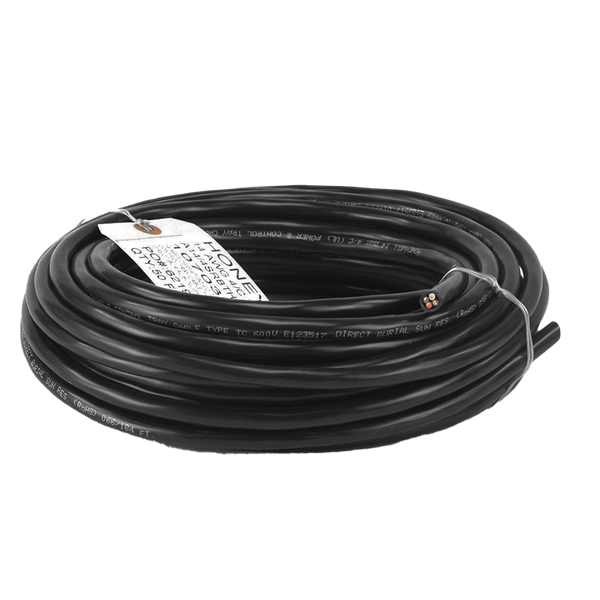

Genesis TW-14/4 (10703908) Stranded Mini-Split Cable, 50ft
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Genesis 10703908 cable features 4 stranded 14 AWG copper conductors, a waterproof jacket, and a direct burial rating. Choose this cable for dependable ductless mini split interconnection wiring.
Specifications
Cable Rating: Outdoor, Tray
Cable Listing: Sunlight Resistant, Direct Burial, Type TC ER JP
Wire Gauge (AWG): 14
Solid or Stranded: Stranded
Number of Strands: 19
Conductor Material: Bare Copper
Number of Conductors: 4
Conductor Insulation Material: THHN
Insulation Colors: Black, White, Red, Green
Shielding: No
Rip Cord: No
Nominal Outer Diameter: 0.395 in.
Rated Voltage (Max): 600 Volts
DC Resistance (Max): 2.62 Ohms / 1000 ft. at 20 °C
Temperature Rating (Min): -20 °C
