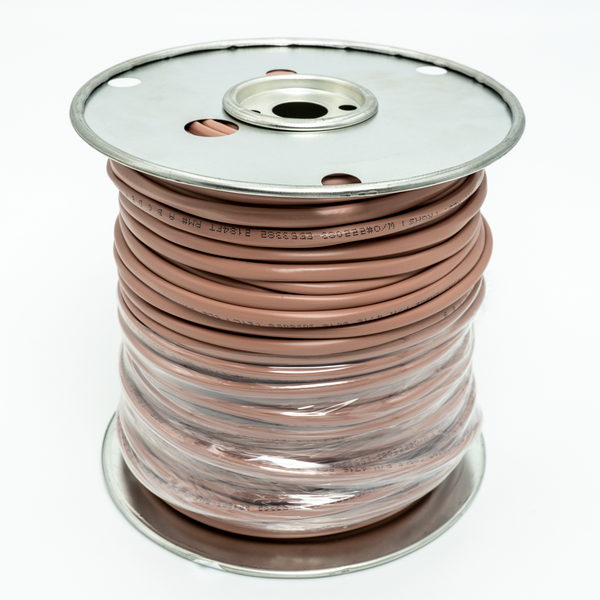

Genesis TW-18/10 (47180307) Non-Plenum Rated Thermostat Wire in 250ft Roll
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Thermostat Cable | Part Number: 4718
18 AWG 10 Solid Conductors
Ratings: CL2, Sunlight Resistant
Approvals: ETL Listed
Construction
Conductor 18 AWG Solid Bare Copper
Conductor Count 10
Insulation Polypropylene (0.006" nom.)
Insulation Colors Red, White, Green, Blue, Yellow, Brown, Orange, Black, Pink, Gray
Lay Length 24" nom.
Shielding N/A
Rip Cord Yes
Jacket PVC (0.015 " nom.)
Overall Diameter 0.240" nom.
Print Legend GENESIS THERMOSTAT CABLE P/N 4718 10C18 3038058 (ETL) CL2 SUN. RES. (RoHS)
W/O# XXXXXX-XXXXXX XXXX FT RM# A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Operating Voltage 150 Volts max.
DC Resistance 6.52 Ohms/1000' at 20°C
Capacitance 22.8 pF/ft. nom.
Impedance 67 Ohms nom.
Temperature -20°C to 60°C
Flame Rating UL 1685 Vertical Tray
RoHS Compliant Yes
Country of Origin USA
