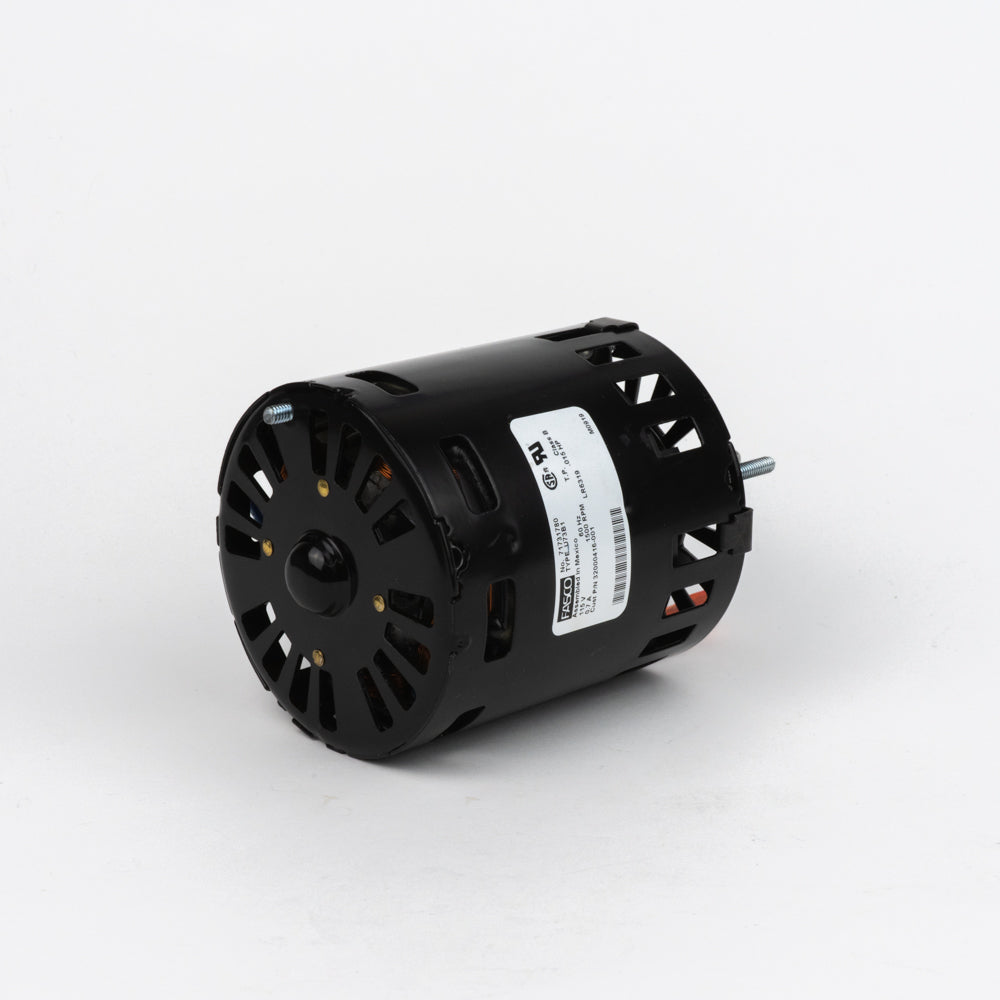

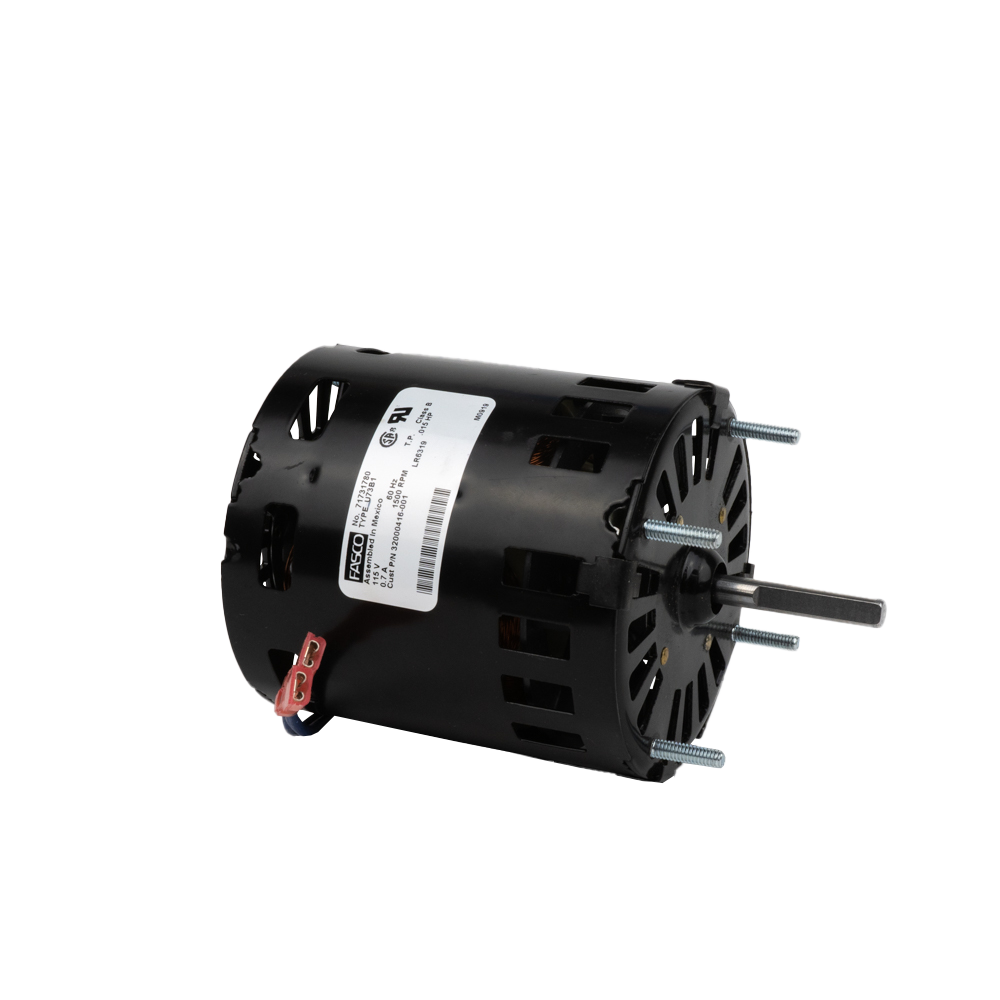

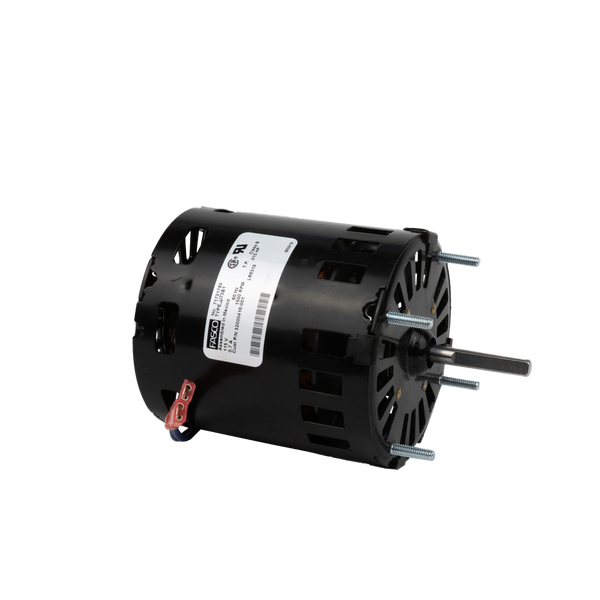

Honeywell fan motor body measures 3¼" dia x 3½". Rating: 1550 rpm, 0.015 hp, 1 ph, 115v, 0.7 amp, 60 hz. Drive shaft is ¼" diameter. The two wires are 7" long with an 3/16" female spade terminal. The four mounting studs (8-32) are spaced 2-1/16". Replaces 32000416-001. For Honeywell HE360 and HE365 fan powered humidifiers. Vibration gasket not included.
