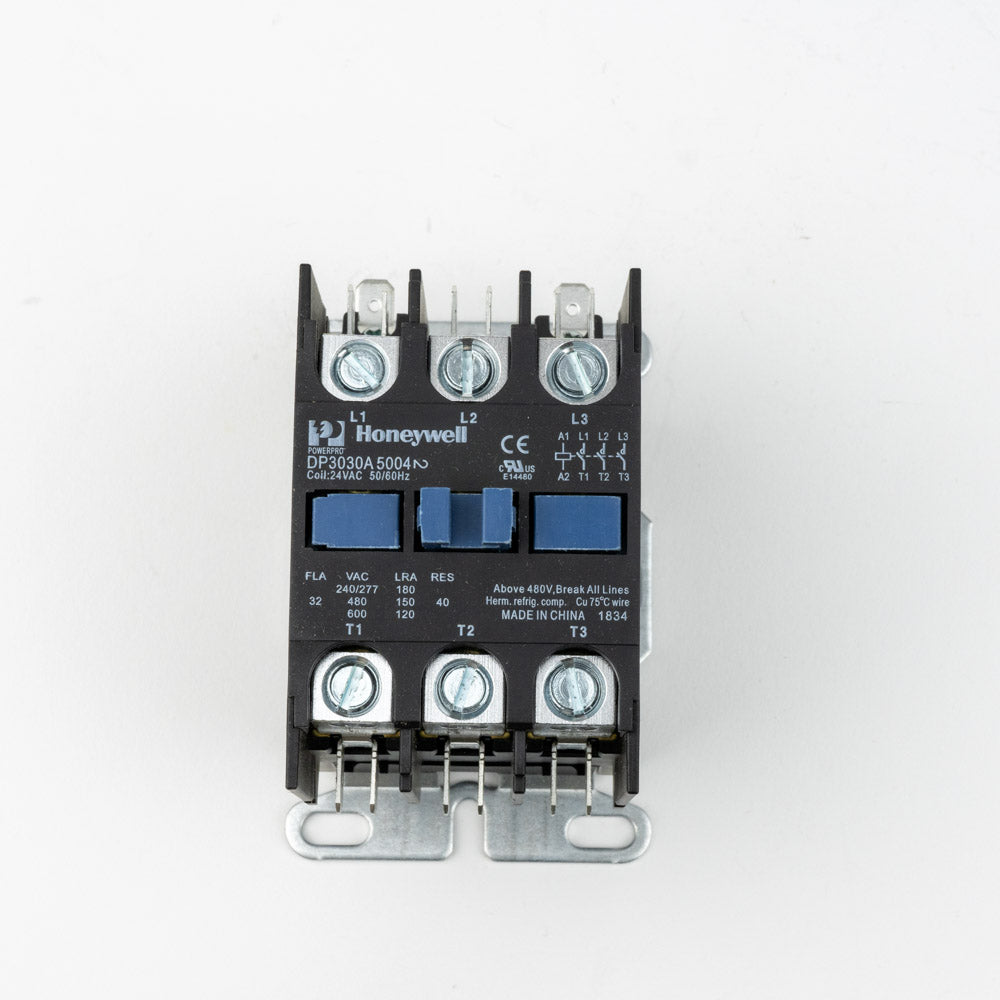

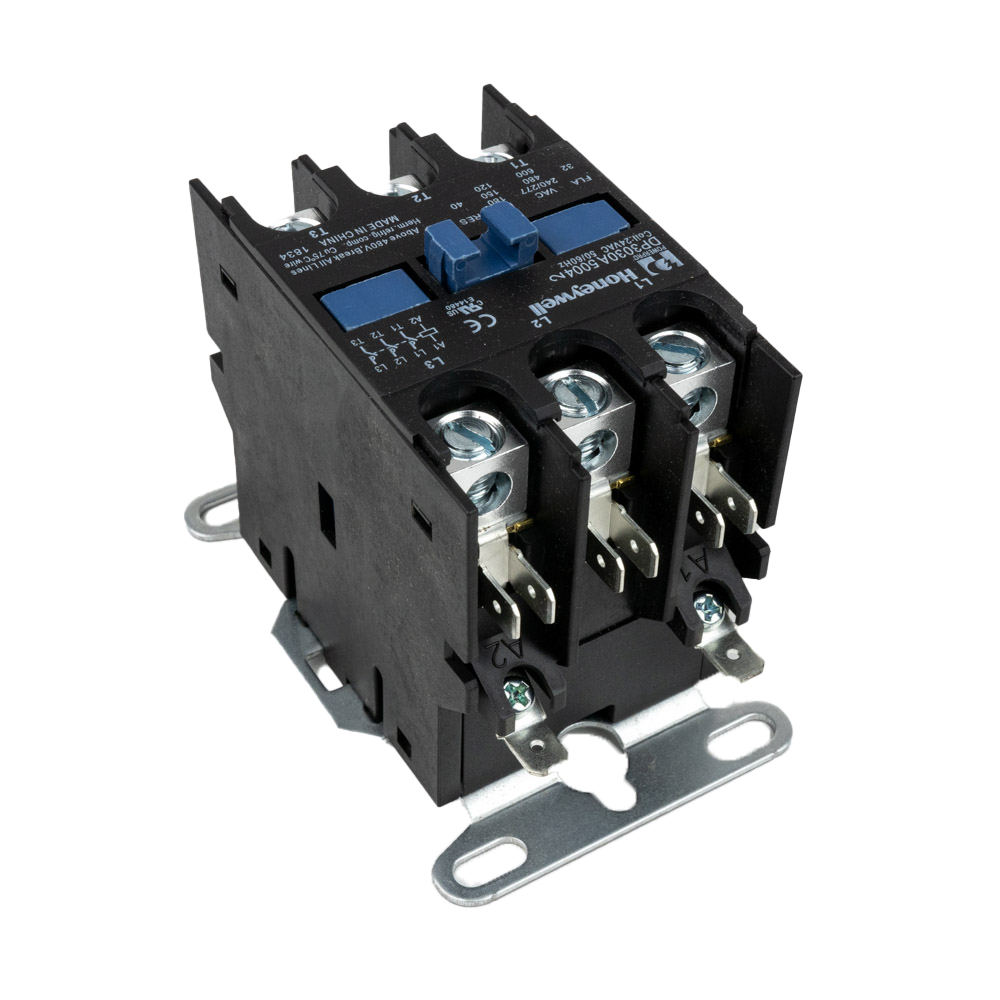

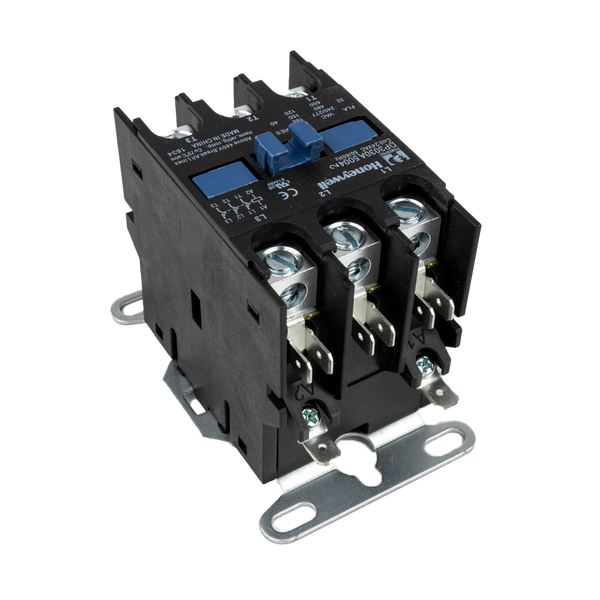

Honeywell DP3030A5004 24VAC 3 Pole Definite Purpose Contactor
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features:
Dimensions (in.): 3.1" x 3.62" x 2.4"
Electrical Connections (main): #10-32 combination head screws
Contact Connections (coil): 1/4 in. quick-connects and #6 screws
Meet the most demanding ARI requirement, ARI-780 Standard.
Class H high temperature insulated coils are standard on 3 pole contactors.
Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.

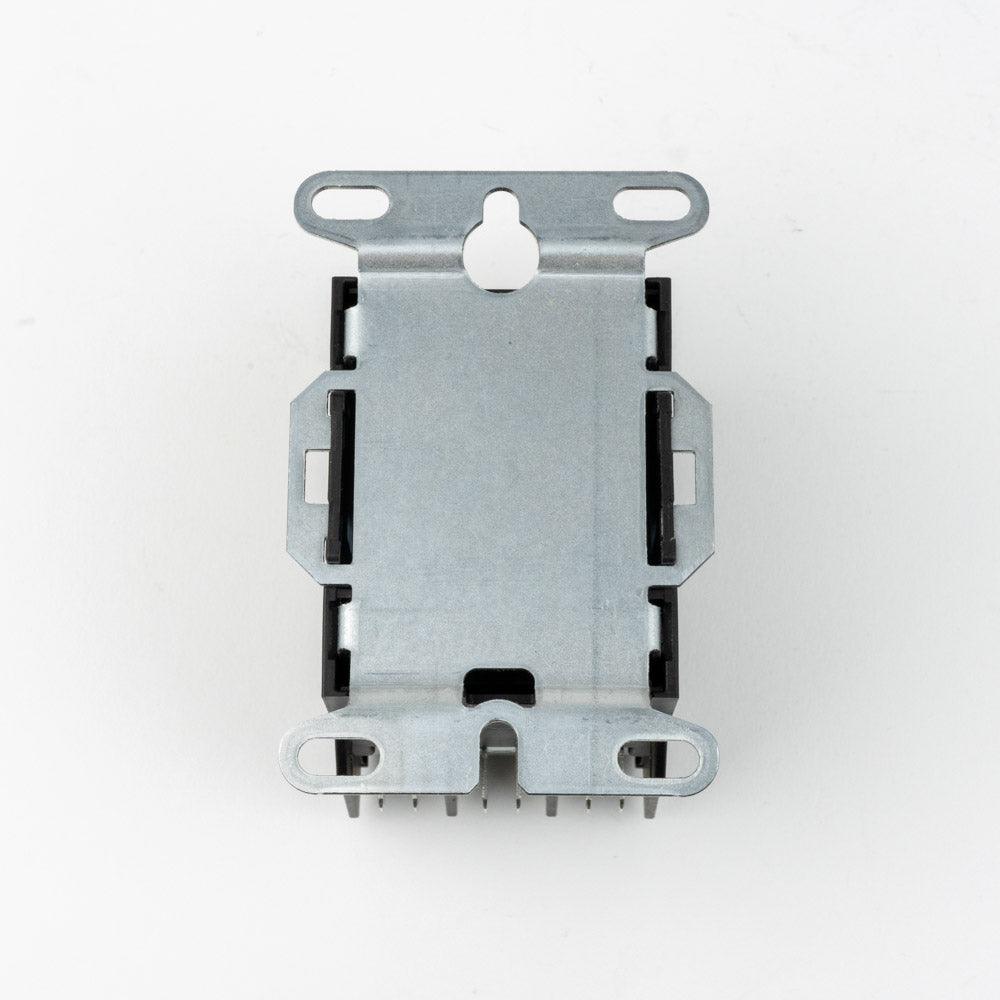

Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Full array of replacement coils, contact sets and accessories available.
Coil Ratings Voltage: 24 Vac
Poles: 3
