L4006A1009

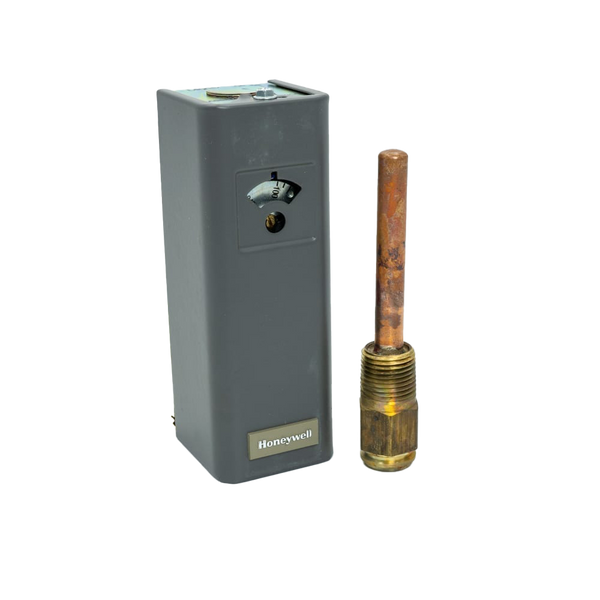

Honeywell L4006A1009 High or Low Limit Aquastat, 5 Degree Differential
Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells
These boiler-mounted, immersion type controllers operate in response to temperature changes in hydronic heating systems.
L4006A,C; L4007 A break the circuit on a temperature rise to the control setting. They are used tor high limit or low limit control. When used as a controller or as a low limit, a separate high limit must be used.
Features
Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to setpoint.
Visible control point scale and external adjustment screw permit easy setting.
Horizontal or vertical insertion of the sensing element.
Direct or well immersion of the sensing element.
Models available for strap-on mounting.
Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
TRADELINE models include heat-conductive compound.
Select models have wells.
UL limit rated device.
