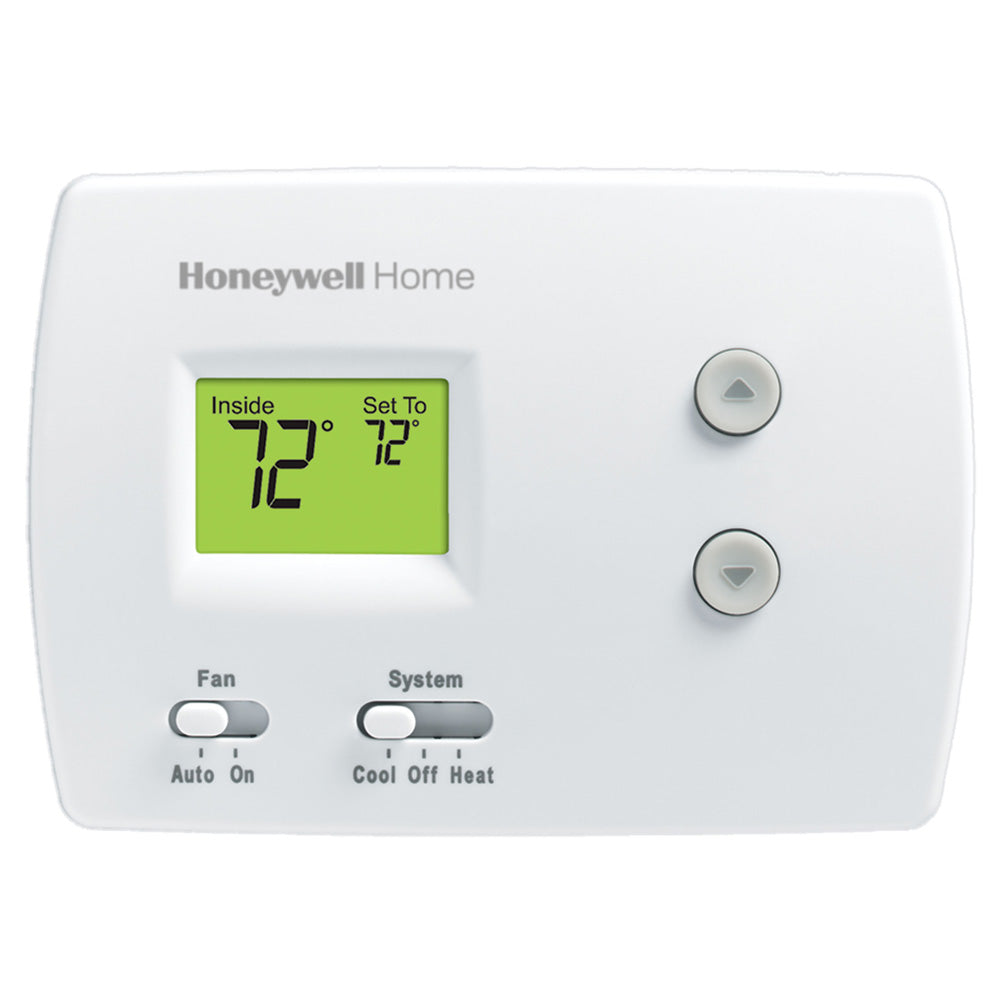

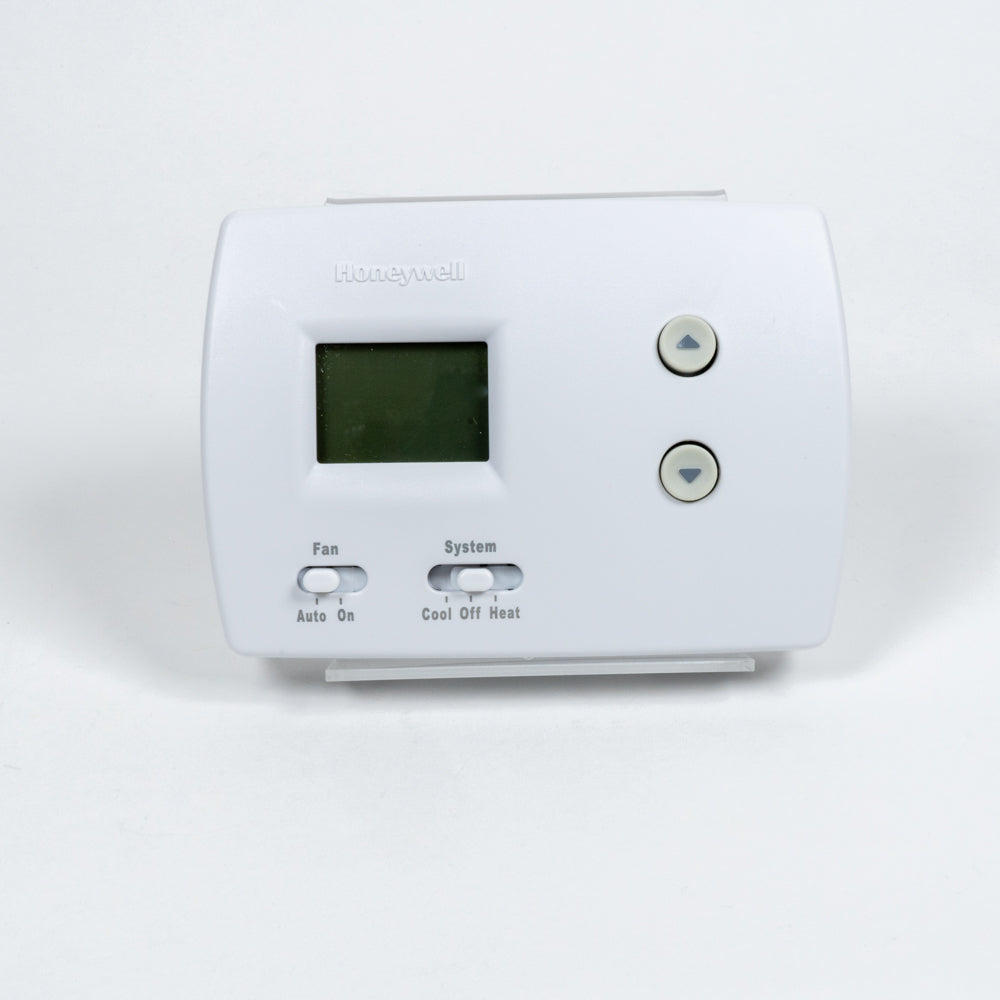

Honeywell PRO TH3110D1008 Non-Programmable Digital Thermostat, 1H/1C
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Non-programmable Digital Thermostat Application 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
Non-programmable digital thermostat.
Backlit digital display - both current and set temperatures are easy to read in various lighting conditions.
Shows both current and set temperatures at the same time.
Precise comfort control [± 1 F (± 0.5 C)] - maintains consistent comfort to the highest level of accuracy.
Basic operation - easy-to-use slide switches allow you to select the heat or cool mode, and operate the fan.
Specifications:
Mounting: Horizontal
Changeover: Manual
Color: Premier White®
Stages: 1 Heat/1 Cool
Power Method: Battery or Hardwired

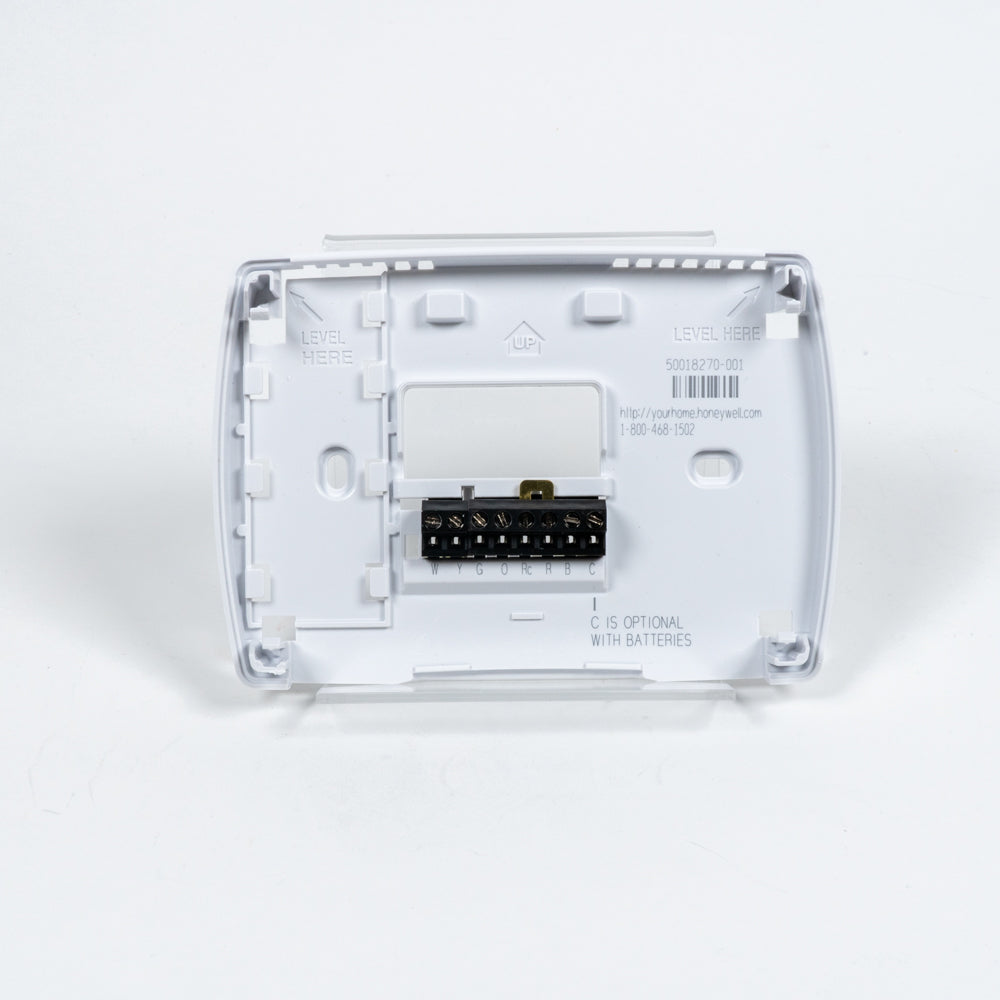

Terminal Designations: R, Rc, W, Y, G, O, B, C
Switch Positions (Fan): AUTO-ON
Switch Positions (System): HEAT-OFF-COOL
Switch Type: Relay
Accuracy (F): ±1 F
Accuracy (C): ±0.5 C
Dimensions (in.): 3 13/16 in. High X 5 3/8 in. Wide X 1 1/4 in. Deep
Dimensions (mm): 97 mm High X 137 mm Wide X 32 mm Deep
Setting Temperature Range (F) Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C) Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Electrical Ratings: 20 to 30 Vac or 750 mV
Frequency: 50 Hz
Frequency: 60 Hz
Cycles per Hour: Heating 1-12 CPH; Cooling 1-6 CPH
Cool Current: 0.02 A to 1.0 A running
Heat Current: 0.02 A to 1.0 A running
Sensor: Element Thermistor
Operating Humidity Range: (% RH) 5 to 90% RH, non-condensing
Display Size: 1.32 sq. in.
Voltage: 20 to 30 Vac or 750 mV
