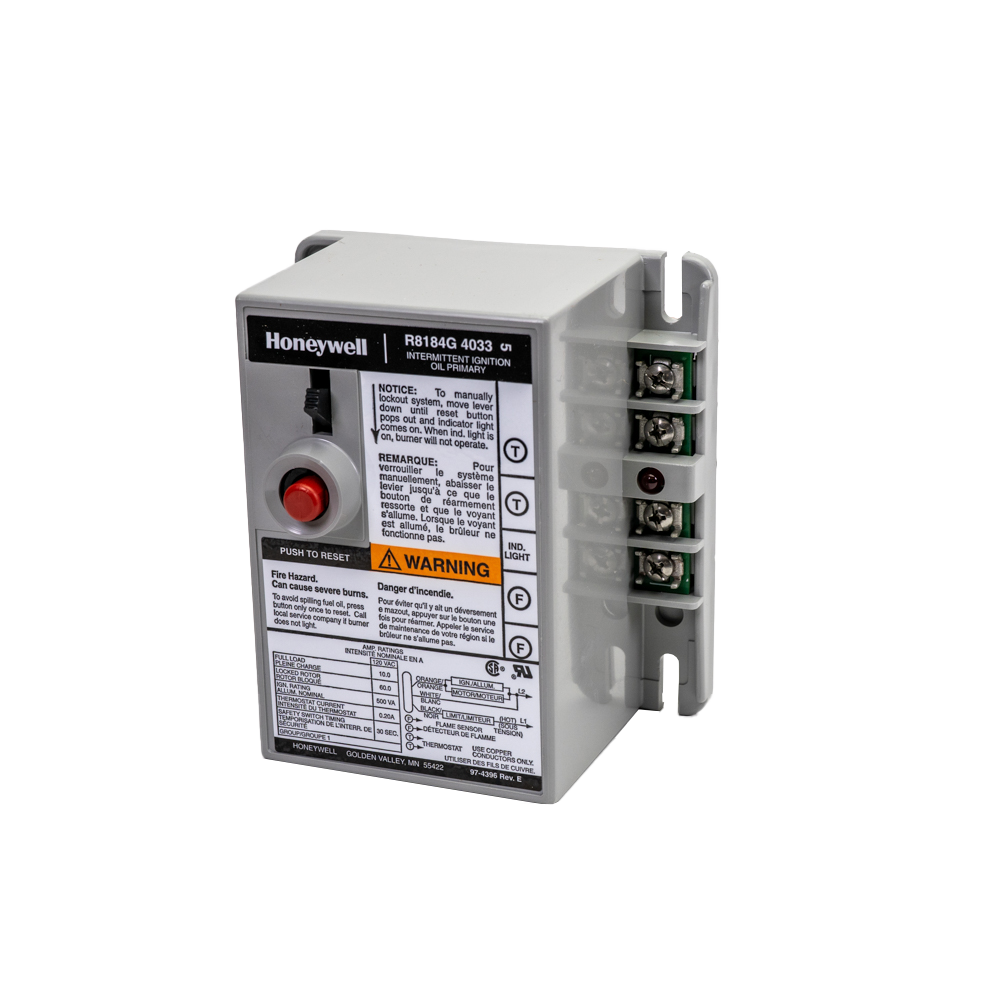

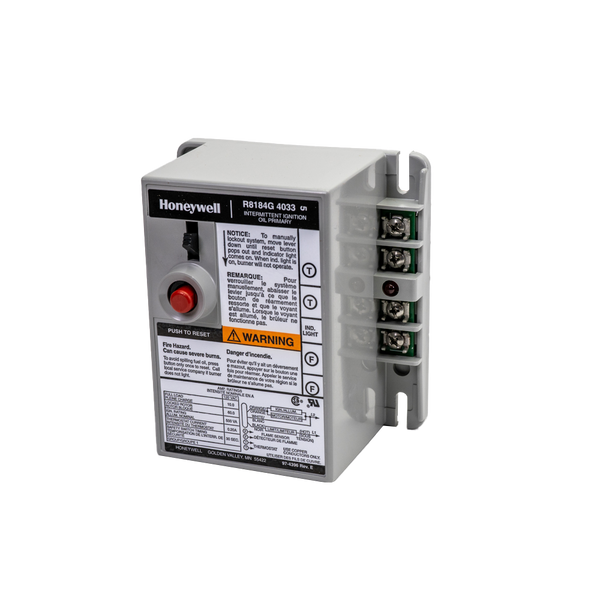

Honeywell R8184G4033 Protectorelay Oil Burner Control, 30sec Safety
Provides automatic, nonrecycling control of an intermittent ignition oil burner system.
Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
Solid state flame sensing circuit.
LED on terminal strip indicates system lockout (available on some models).
Remote lockout indication (available on some models).
Enclosed safety switch with external reset button.
Manual trip lever opens safety switch for system maintenance.
Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
