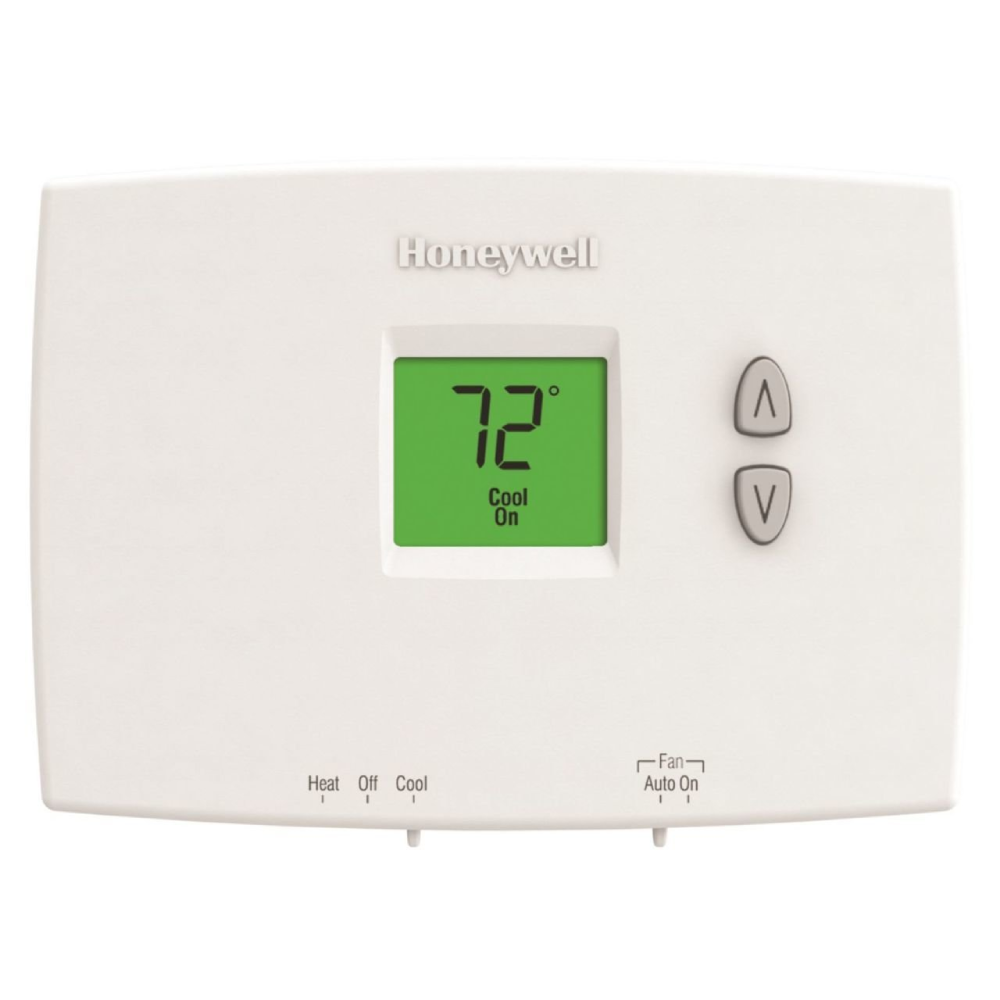

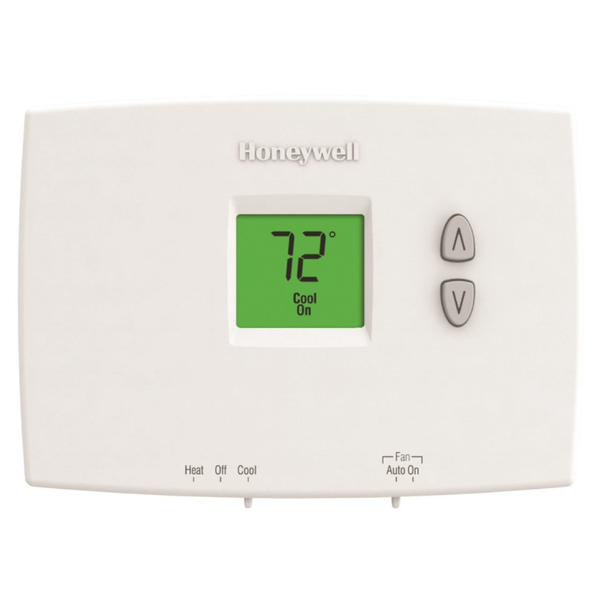

Honeywell PRO 1000 Horizontal Non-Programmable Thermostat TH1110DH1003

Description

Item Condition: Open Box / New
These Honeywell Pro 1000 Horizontal Non-Programmable Thermostats TH1110DH1003 are in new condition, and include all parts, and manuals. They were imprinted with a contractor’s logo, but have been wiped clean, and are available to you at a discounted price.

Features

• Precise Comfort Control ±1 F of your set temperature
• Backlit display easy to see and read
• One-touch access to setpoint temperature
• Built-in compressor protection
• Gas, Oil, Electric, Heat Pimp, Forced Warm Air, Hot water, 750 Milivolt, Steam or Gravity

Specs

• 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
• Dimensions 3 7/16 in. High x 4 10/16 in. Wide x 1 3/16 in. Deep
• Horizontal Mount
• Electrical Ratings 20 to 30 Vac or 750 mV
• Frequency 50 Hz; 60 Hz
• Stages 1 Heat/1 Cool
• Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
• Switch Positions (System) HEAT-OFF-COOL
• Switch Positions (Fan) AUTO-ON
• Power Method Dual Powered: Battery or Hardwire
• Color White
• Terminal Designations R, RC, C, W, Y, G, O, B
• Display Size 1.32 sq in.
• Changeover Manual
• Setting Temperature Range (F) Heat: 40 F to 90 F; Cool: 50 F to 99 F
• Setting Temperature Range (C) Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
• Cycles per Hour Heating 2 - 6 CPH; Cooling 2 -6 CPH
• Cool Current 0.02 A to 1.0 A running
• Heat Current 0.02 A to 1.0 A running

Downloads

» TH1110DH1003 Installation Manual
