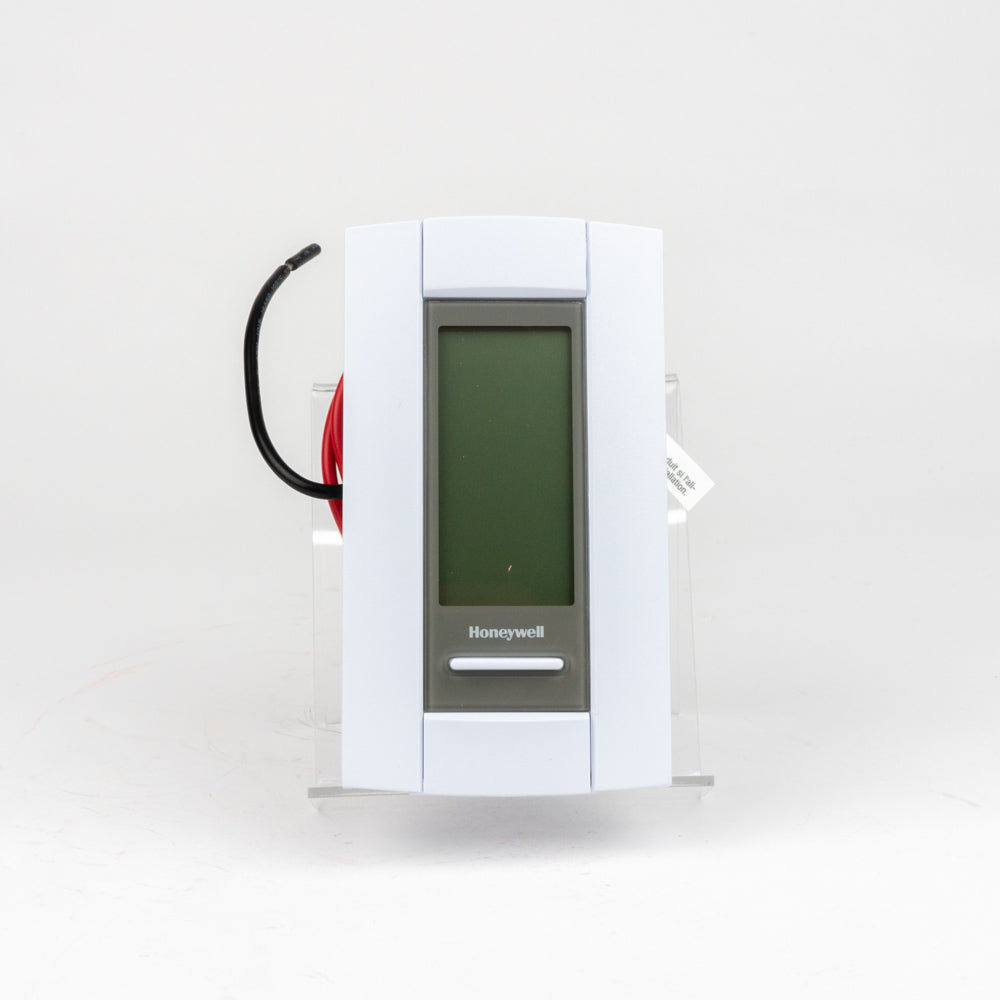

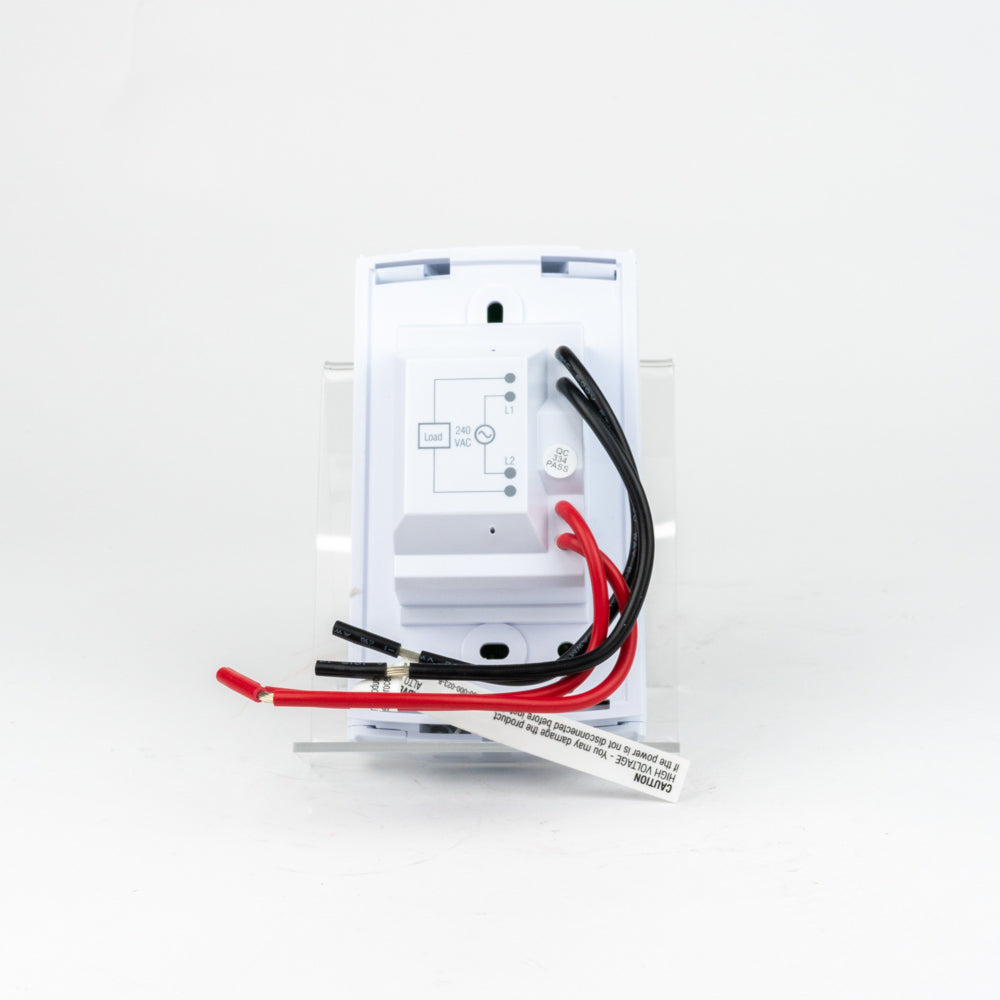

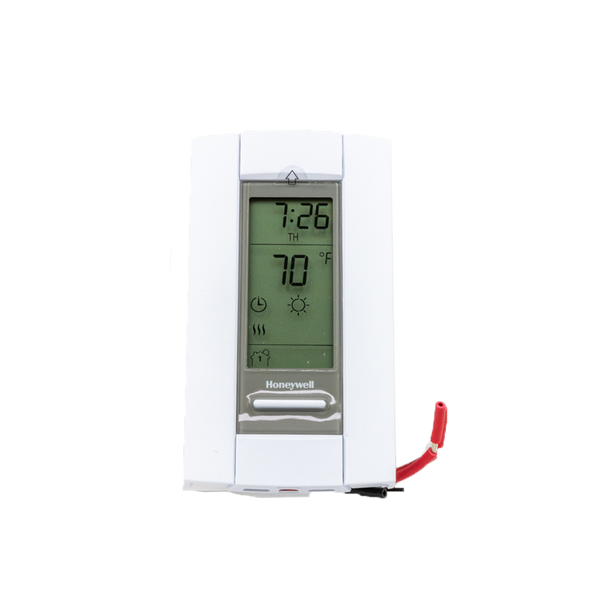

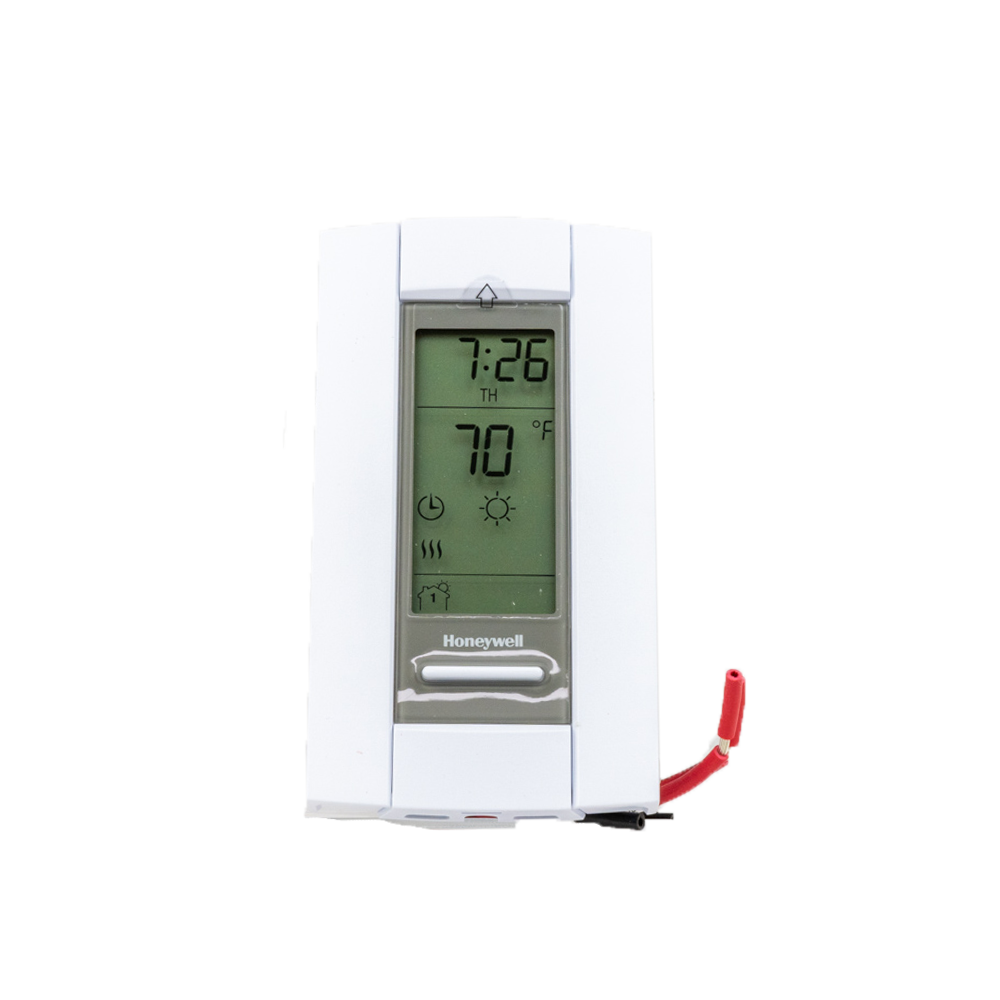

Honeywell TL8230A1003 Programmable Line Voltage Thermostat, DPDT
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Honeywell's LineVoltPRO 8000 is one of the most advanced thermostats for electric heating on the market. It features precise comfort control, a sophisticated design and high-end programming features. Begin lowering your heating bill immediately with the pre-programmed 7-day schedule, or modify the programming to suit your lifestyle. With LineVoltPRO 8000, you'll see substantial savings and feel consistently comfortable.
Note: This is a "4-wire" Thermostat
FEATURES
7 day programmable - maintain the pre-set program schedule for up to 20% energy savings, or modify the schedule to fit your lifestyle.
Electronic temperature control - precision of ±1º F saves up to an additional 10% on heating bills.
Large, clear, backlit display - easy to read in various lighting conditions.
Soundproofed for quiet operation - reduces the clicking noise commonly heard with conventional thermostats.
On/Off switch allows you to turn the thermostat off at the end of the heating season.
Early start - ensures programmed temperature is reached by programmed time.
Heating indicator - at a glance confirmation that the heat is on.
Maintenance free - no batteries required.
In the event of a power outage - these thermostats default to 70 degree setpoint
5-year limited warranty.
SPECIFICATIONS:
Application - Electric baseboards, convectors and fan forced heaters (resistive rated loads).
Programmability - 7 Day Program
Color - Premier White®
Switching Action - DPST
Dimensions (in.) - 4 7/8 in. high x 2 ¾ in. wide x 7/8 in. deep
Dimensions (mm) - 124 mm high x 70 mm wide x 23 mm deep
Mounting - Vertical
Electrical Ratings - 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC
Frequency - 50/60 Hz
Electrical Connections - 5.5 in. (140mm) tinned copper lead wires
Operating Temperature Range - (F) 32F to 122 F
Operating Temperature Range - (C) 0 C to 50 C
Setting Temperature Range (F) - 40 F to 86 F
Setting Temperature Range (C) - 5 C to 30 C
Stages - 1 Heat
Sensor Element - Thermistor
Approvals, Underwriters Laboratories Inc UL Listed 9R12, File Number: E183695
Approvals, Canadian Standards Association cCSAus, File Number: LR76030
Display Size 2.67 sq. in.
Voltage 208/240 Vac
