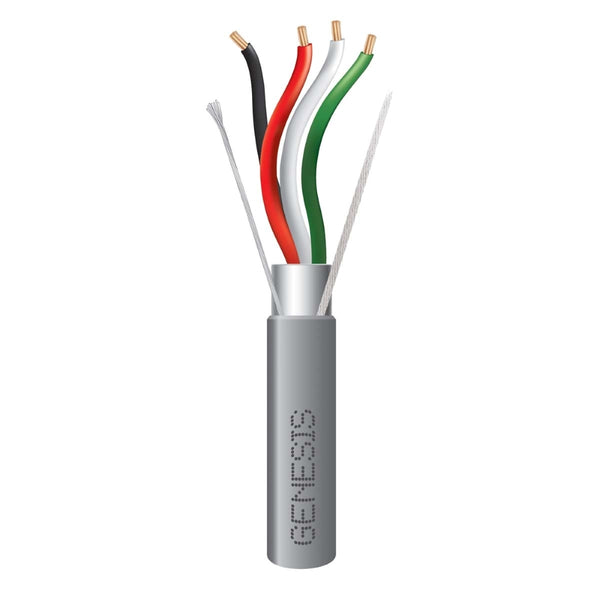

Genesis TS-18/4 18-4 Twisted, Shielded, Non-Plenum Wire, 50ft Cut
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
TS-18/4-BF_50 18-4 Twisted, Shielded, Non-Plenum-rated Wire - 50 FT Cut
18 AWG 4 Stranded Conductors Shielded
Ratings: CMR, CL3R, FPLR, FT4, Sunlight Resistant
Approvals: ETL Listed
Construction:
Conductor 18 AWG 19 Strand Bare Copper
Conductor Count 4
Insulation Polypropylene (0.006" nom.)
Insulation Colors Black, Red, White, Green
Lay Length 3.00" nom.
Shielding Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain
Rip Cord Yes
Jacket PVC (0.017 " nom.)
Overall Diameter 0.180" nom.
Print Legend GENESIS P/N 2215 4C 18AWG SHIELDED 3038058 (ETL) CL3R OR FPLR OR CMR
C(ETL)US FT4 SUN RES 75C (RoHS) W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1
2 3 4 5 6 7 8 9
Properties:
Operating Voltage 300 Volts max.
DC Resistance 6.66 Ohms/1000' at 20°C
Capacitance 36.3 pF/ft. nom.
Impedance 41 Ohms nom.
Temperature -20°C to 75°C
Flame Rating UL 1666 (Riser); CSA C22.2 No. 2556 (FT4)
RoHS Compliant Yes
Country of Origin USA
