Genesis Cable Products

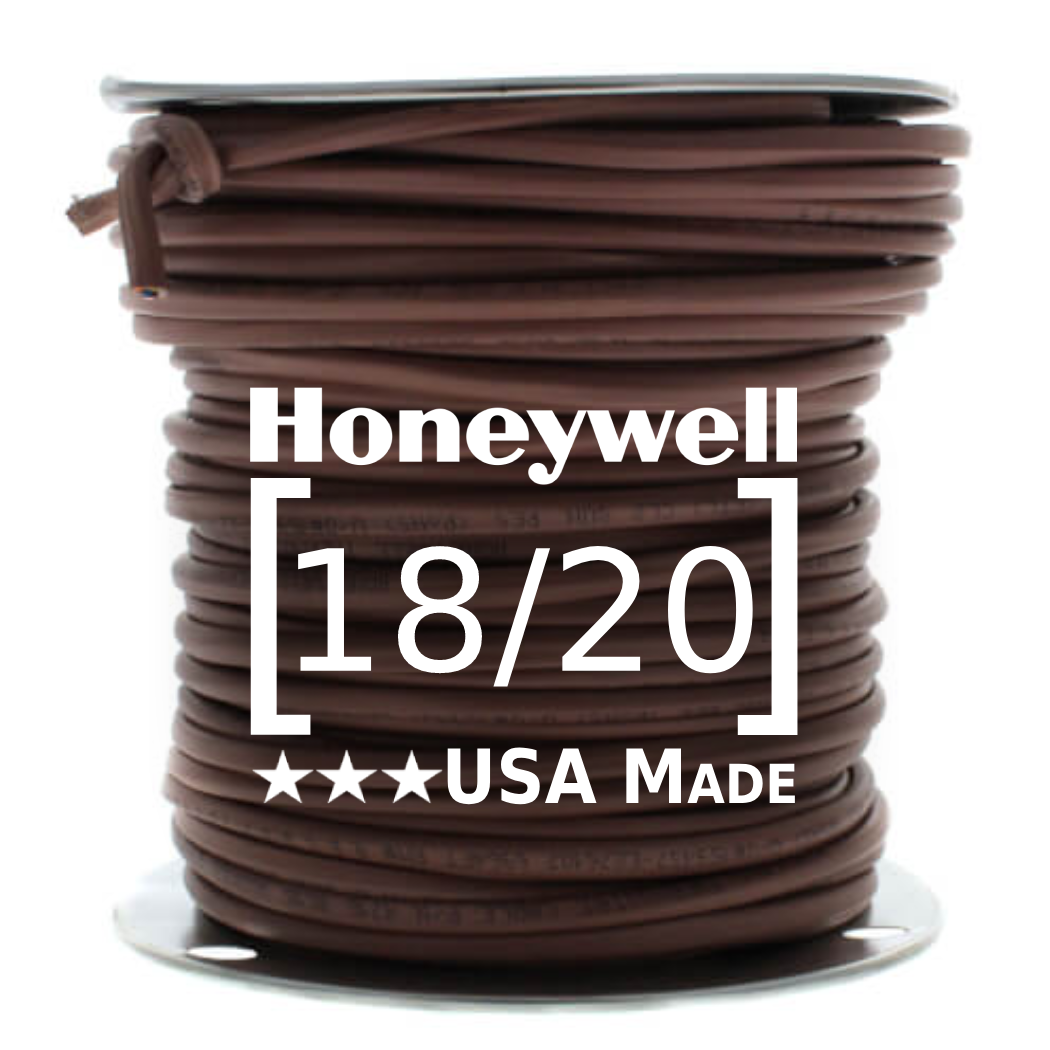

Genesis TWH-18/20 18/20 Hybrid Thermostat Wire in 250ft Reel 67160307
$111.43
Out of Stock
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Honeywell Genesis 8 Conductor 18/20 Hybrid Thermostat Wire 250 FT Reel
Conductor 18 AWG & 20 AWG Solid Bare Copper
Conductor Count 1 x 18AWG; 7 x 20AWG
Insulation Polypropylene (0.006" nom.)
Insulation Colors 18AWG: Red; 20AWG: White, Green, Blue, Yellow, Brown, Orange, Black Lay Length 3.5" nom.
Shielding N/A
Rip Cord Yes (except Speed Bag put ups)
Jacket PVC (0.015 " nom.)
Overall Diameter: 0.180" nom.
Operating Voltage: 150 Volts max.
DC Resistance: 20 AWG: 10.3 Ohms/1000' at 20°C; 18 AWG: 6.5 Ohms/1000' at 20°C
Capacitance -
Impedance -
Temperature: -20°C to 60°C
Flame Rating UL: 1685 Vertical Tray
RoHS Compliant: Yes
Country of Origin: USA
