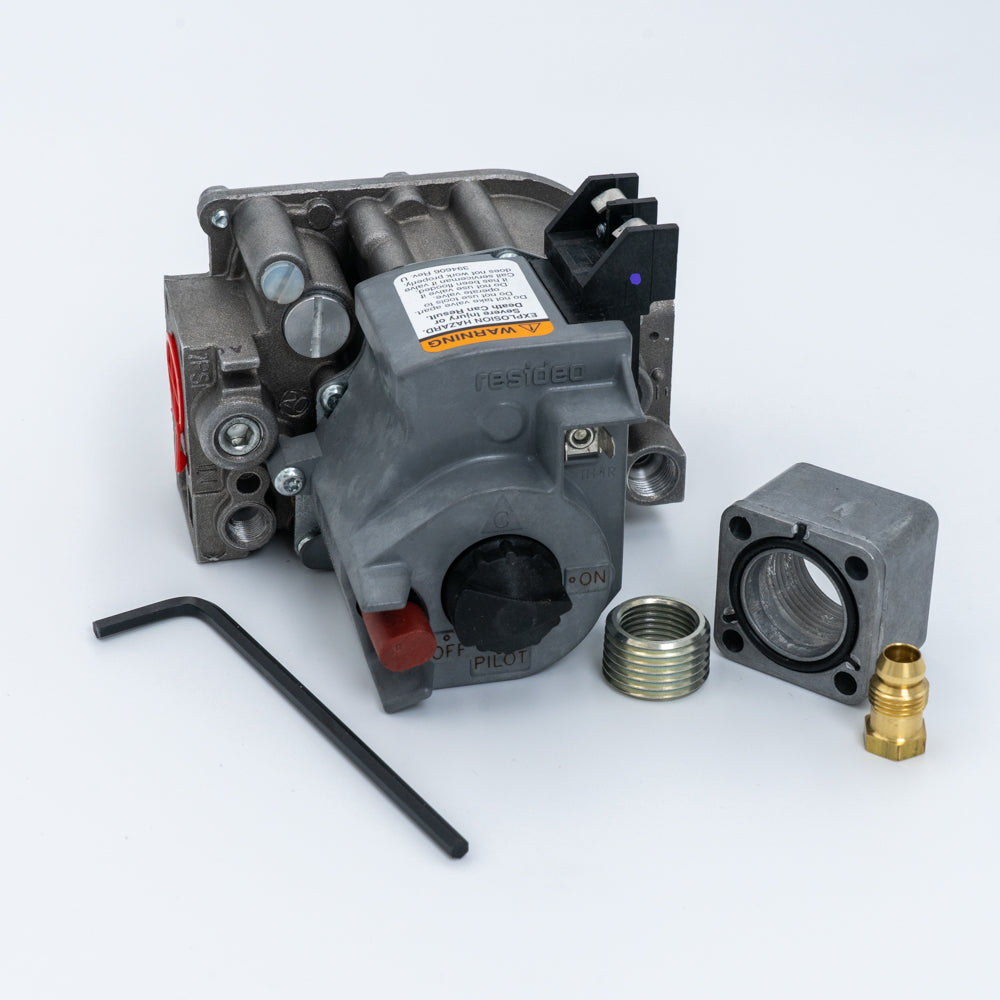

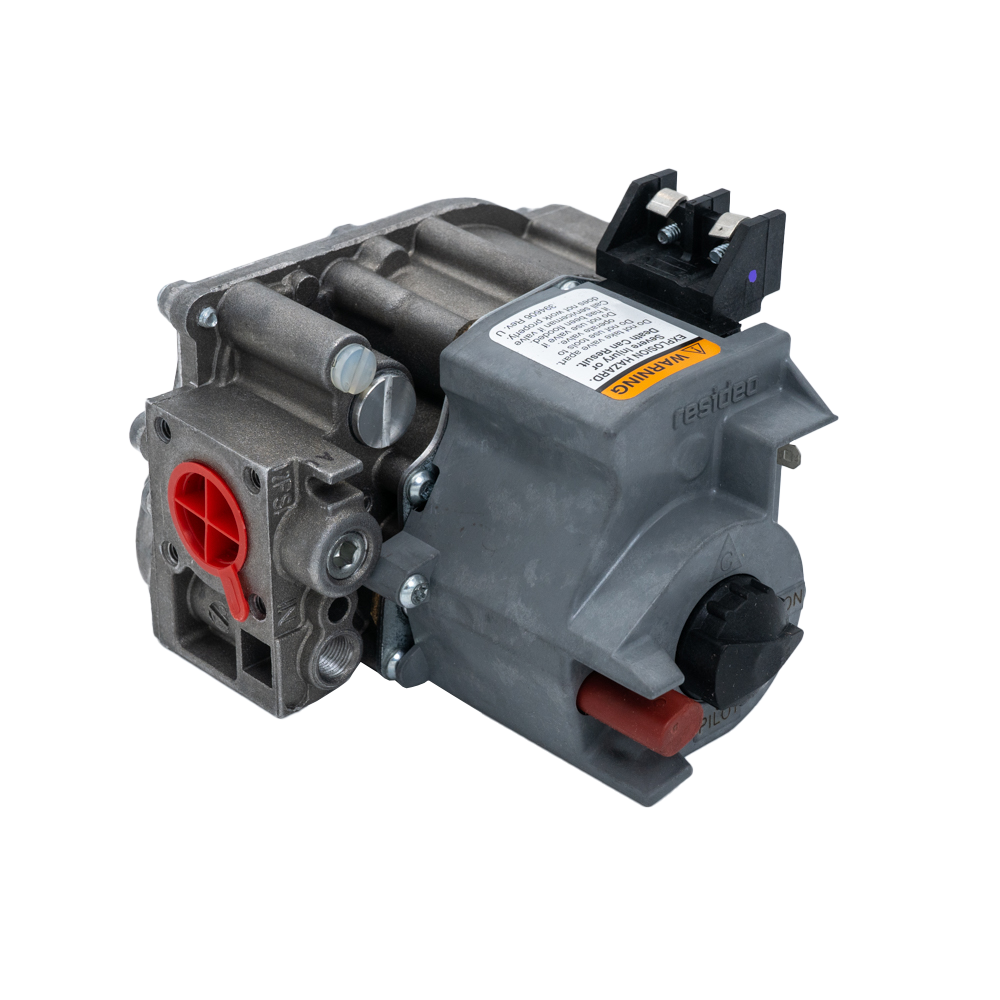

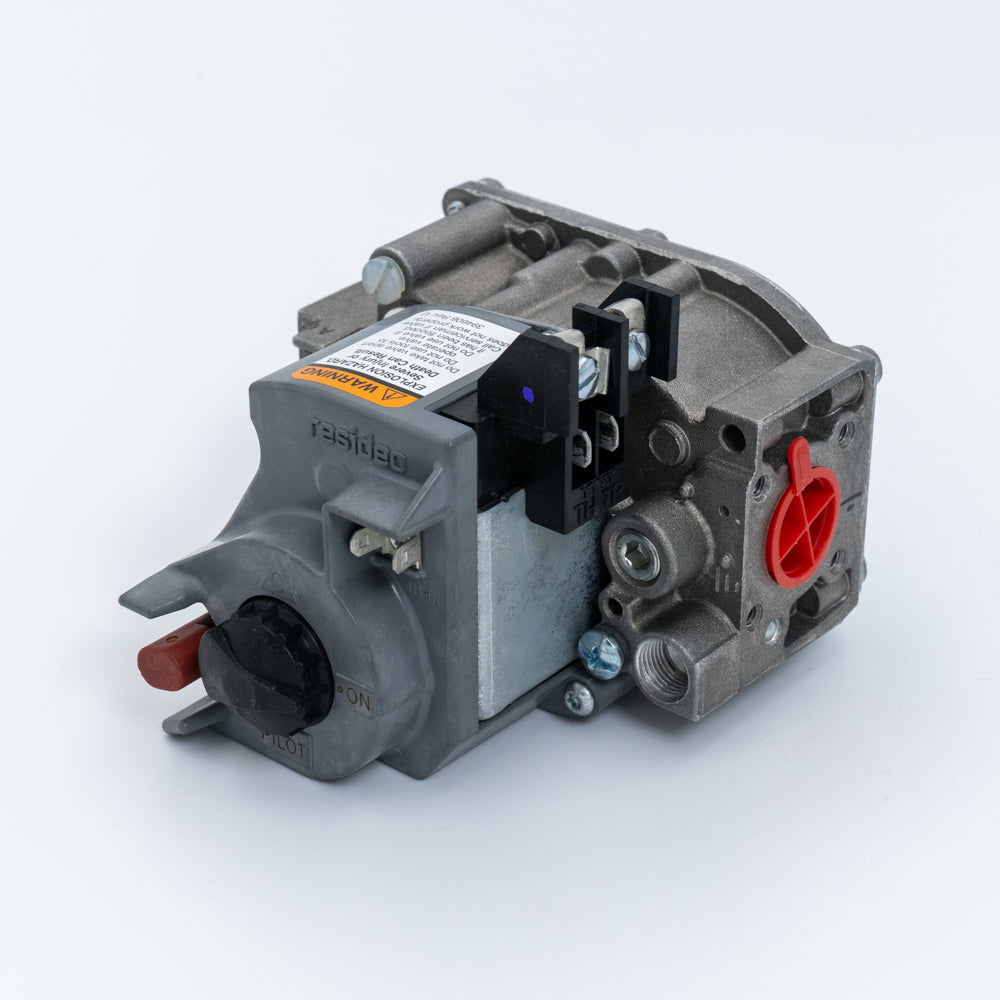

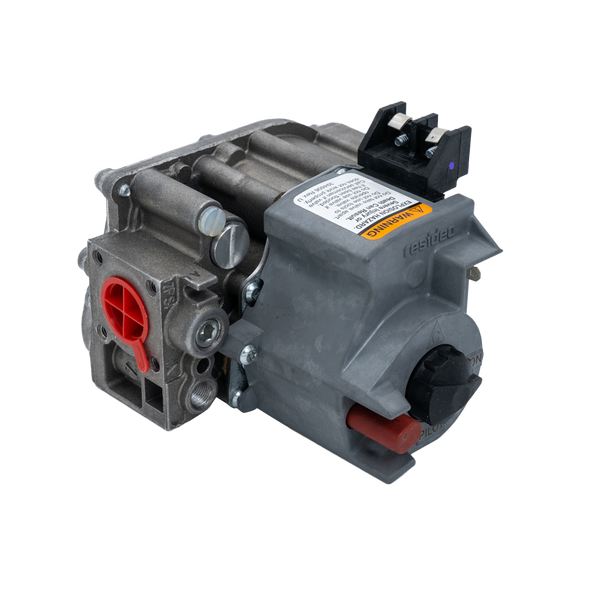

Honeywell VR8200A2132 1/2in Standard Opening Pilot Gas Valve

These continuous pilot combination gas controls are used in gas-fired appliances that have up to 200 cfh capacity of natural gas. They include safety shutoff, a manual valve, a pressure regulator and pilot adjustment. The V8200 has a single automatic operator, except for the V8200F, which, like the VR8200, has two automatic operators. The VR8201 has two independently controlled automatic operators. Body pattern is straight-through with 1/2 in. inlet and 1/2 in. outlet. Some models include two optional 1/4 in. quickconnect convenience terminals. Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Features Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. Compact size. Provides two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends. Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. Meets codes requiring dual safety shut-off. Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. All adjustments, wiring connections and pilot outlet are accessible from top of control. Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure. Compatible with ECO connector. LITE-RITE (OFF-PILOT-ON) lighting sequence.
